iDatalink KIT-VW1 Dash and Wiring Kit

Install and connect an iDatalink-compatible double-DIN car stereo in select 2018-up Volkswagen vehicles

Better sound for your VW

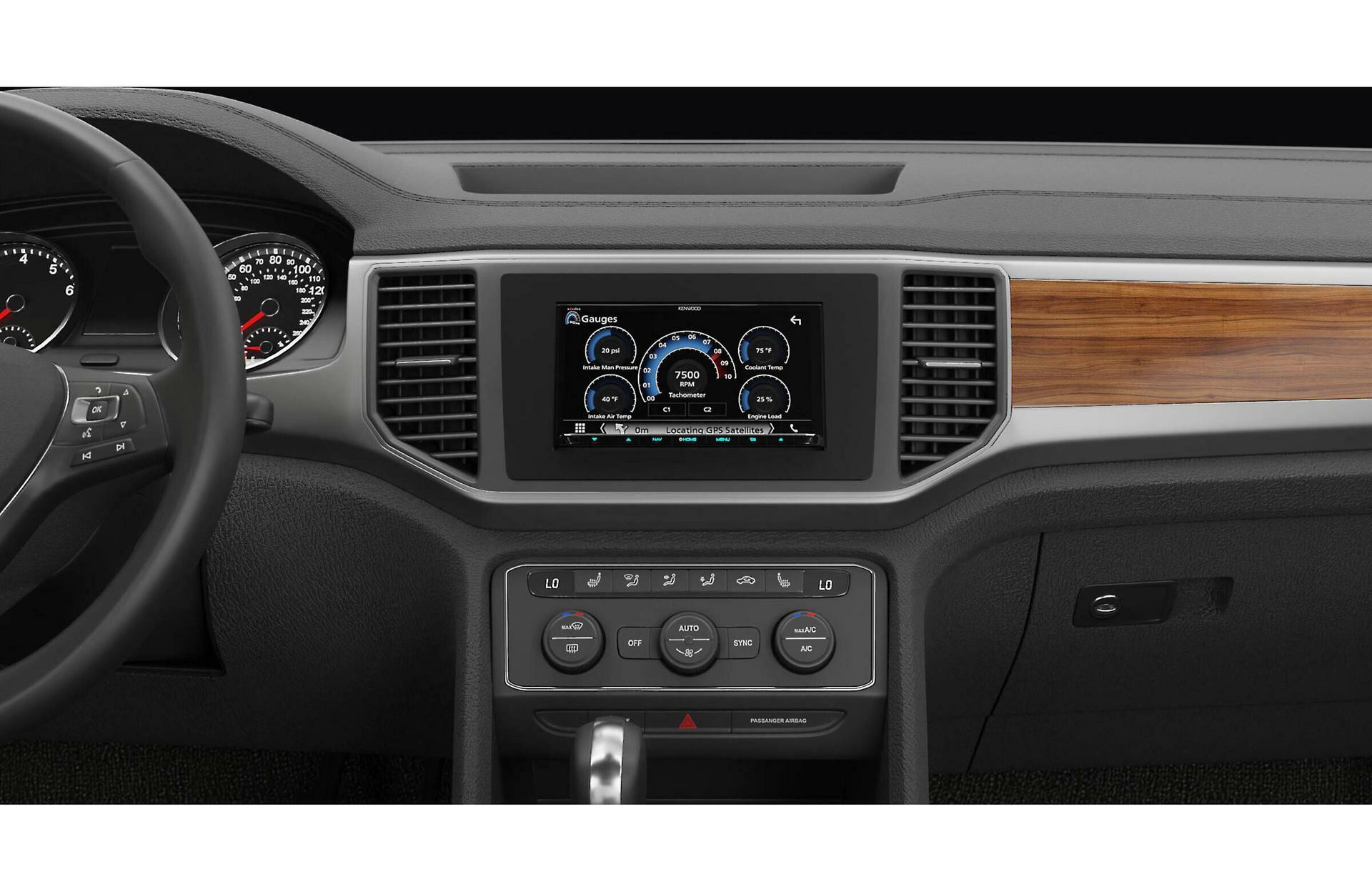

The iDatalink KIT-VW1 factory system adapter (along with the Maestro ADS-MRR or ADS-MRR2 module, sold separately) lets you install and connect an iDatalink-ready double-DIN (4" tall) car stereo with a 7" screen or a Pioneer modular radio with its 9" screen in your Volkswagen. With your iDatalink-ready car stereo, you'll retain your steering wheel audio controls, along with the on-screen climate controls and factory menus. You can also set up gauges on your new car stereo's touchscreen to check engine performance and display other vehicle information. The module retains all your factory backup cameras (except 360 camera). The kit includes bezels for 7" iDatalink-compatible radios and 9" Pioneer modular radios; the bezels' finish matches your factory dash.

The wiring harness features an in-line head-unit connector harness, which will plug into iDatalink's new "Head-unit direct" harnesses for select radio brands. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Note: This kit is designed for select 2018-up Volkswagen vehicles without factory amplification.

Product highlights:

allows you to install an iDatalink-compatible double-DIN radio with 7" screen or a Pioneer modular radio with 9" screen in your Volkswagen

also requires the Maestro ADS-MRR or ADS-MRR2 module (sold separately)

includes dash kit, wiring harness, and mounting brackets

includes antenna adapter and USB adapter

retains steering wheel audio controls, on-screen climate controls, and factory menus

retains control of factory vehicle settings

retains factory backup cameras (except 360 camera)

warranty: 1 year

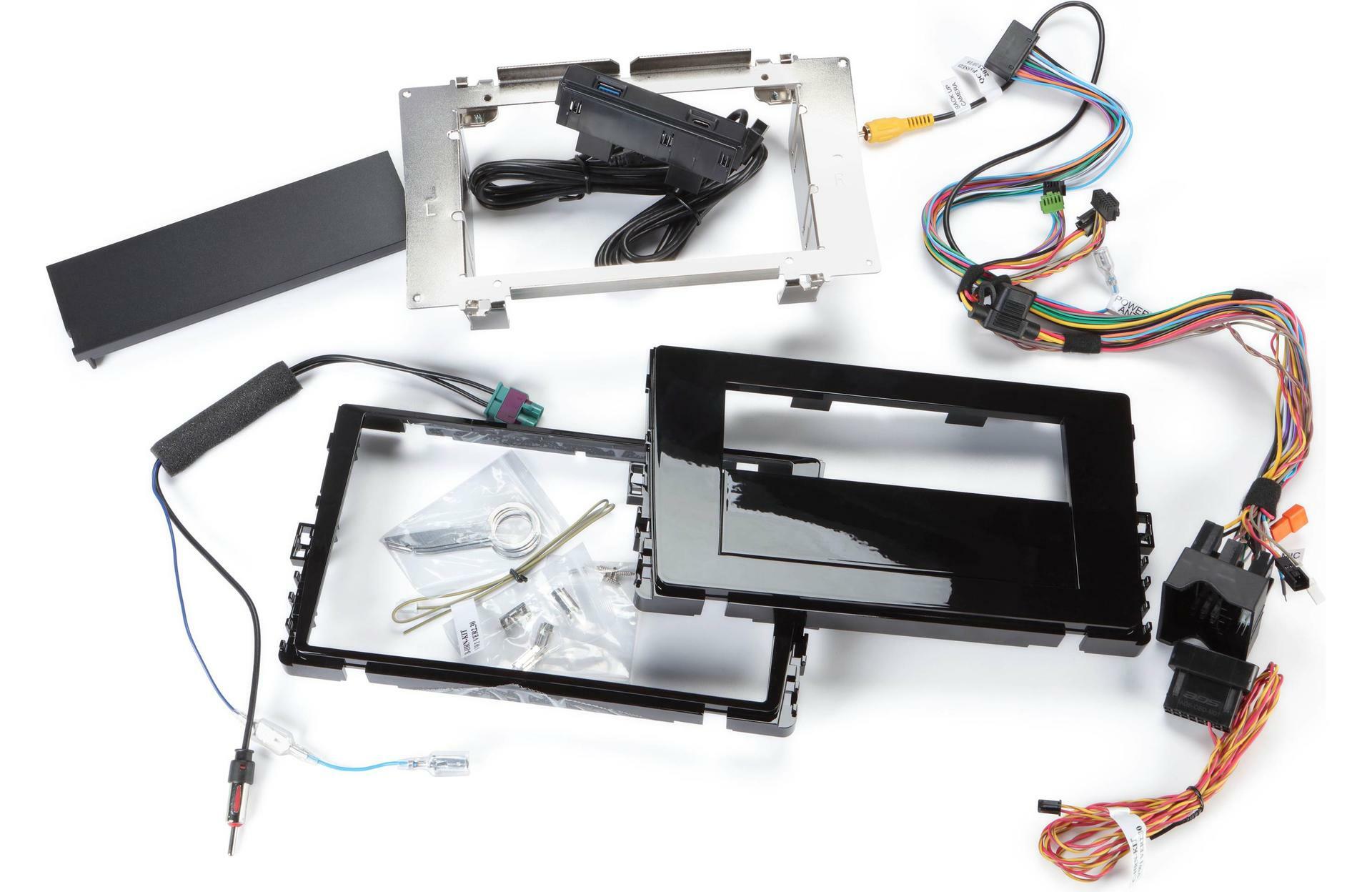

What's in the box:

Trim-plate

Mounting bracket

Blank plate

Media module with USB-C and USB-A extension cables

Wiring harness

OBDII harness

Antenna adapter

2-Pin gray/yellow wire harness

4 Screws

4 Metal connectors

4 Removal tools

Quick Start Guide

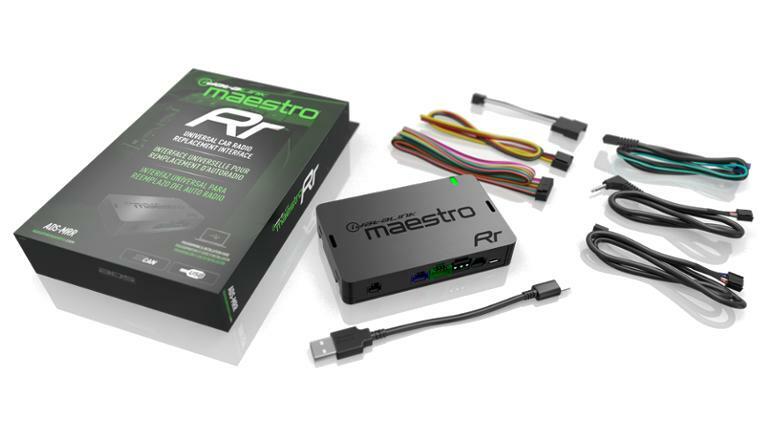

iDatalink Maestro RR Interface Module

Connect a new stereo and retain the steering wheel audio controls and factory amps in select 2006-up vehicles

iDatalink's Maestro ADS-MRR module, along with the correct interface harness for your vehicle, allows you to install a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles while retaining your factory steering wheel audio controls and the use of your factory amplifier, if present.

Here's how it works

First, you connect the Maestro to your computer using the included USB cable, visit www.idatalink.com/maestro, and follow the instructions. Once the unit has been "flashed," it's ready to go. Next, you'll either solder or crimp the vehicle-specific Maestro harness (sold separately) to your new receiver's wiring, just like you would with any Crutchfield wiring harness or wiring adapter.

Important Note: You will also need an additional Maestro vehicle-specific wiring harness that connects your new receiver to the ADS-MRR module and your vehicle's wiring. We will automatically add this harness to your Cart at a discounted price when you purchase a new car stereo and this ADS-MRR module.

Retain steering wheel audio controls, too

The ADS-MRR module also allows you to use your factory steering wheel audio controls with your new receiver. Using the intuitive web programming interface, each factory button can be assigned a specific radio function. Better yet, you can also assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled.

Keeping your factory features with an iDatalink-ready car stereo

If you're buying a compatible Kenwood, JVC, Pioneer, Sony, or Alpine receiver, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select vehicles.

Chrysler: You'll retain the use of the Uconnect system (including voice command), along with your steering wheel audio controls and factory amp.

Fiat: You'll retain your vehicle's factory amp, USB port, and backup camera.

Ford: You'll keep your SYNC system, including the factory Bluetooth, satellite radio (in select vehicles, see Details), steering wheel audio controls, and other great features.

GM: You'll retain the use of OnStar system, along with your steering wheel audio controls, your factory amp, and safety warning chimes.

Honda: You'll retain your vehicle's steering wheel controls, Bluetooth, aux input, and factory amplifier.

Subaru: You'll retain your steering wheel controls, factory amp and sub, and Subaru backup camera.

Toyota: You'll retain your vehicle's A/V input, USB port, and backup camera.

Product highlights:

allows installation of a new car stereo in select 2006-up Ford/Lincoln/Mercury, GM, Chrysler/Dodge/Jeep/RAM, Toyota/Scion, Honda/Acura, Fiat, Subaru, Volkswagen/Audi, and other vehicles

works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls, retain the factory amp if present, and integrate all car stereo connections

retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers

displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, Sony, and Alpine multimedia receivers

dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

What's in the box:

Radio replacement interface module

23" Wiring harness (18-pin to bare-wires)

23" Power/Ground harness (3-pin to bare-wires)

18" Interface harness (4-pin to 4-pin)

18" SWC harness (4-pin to 3.5mm/bare-wire)

22" Audio harness (3-Pin to 3.5mm)

3" Jumper harness (2-pin to 2-pin)

7" USB cable (microUSB to USB-A)

Quick Start Guide
