Jensen CAR710-4BC Digital multimedia receiver with backup camera

Jensen CAR710-4BC

Digital multimedia receiver with backup camera (does not play discs)

A full-scale stereo upgrade

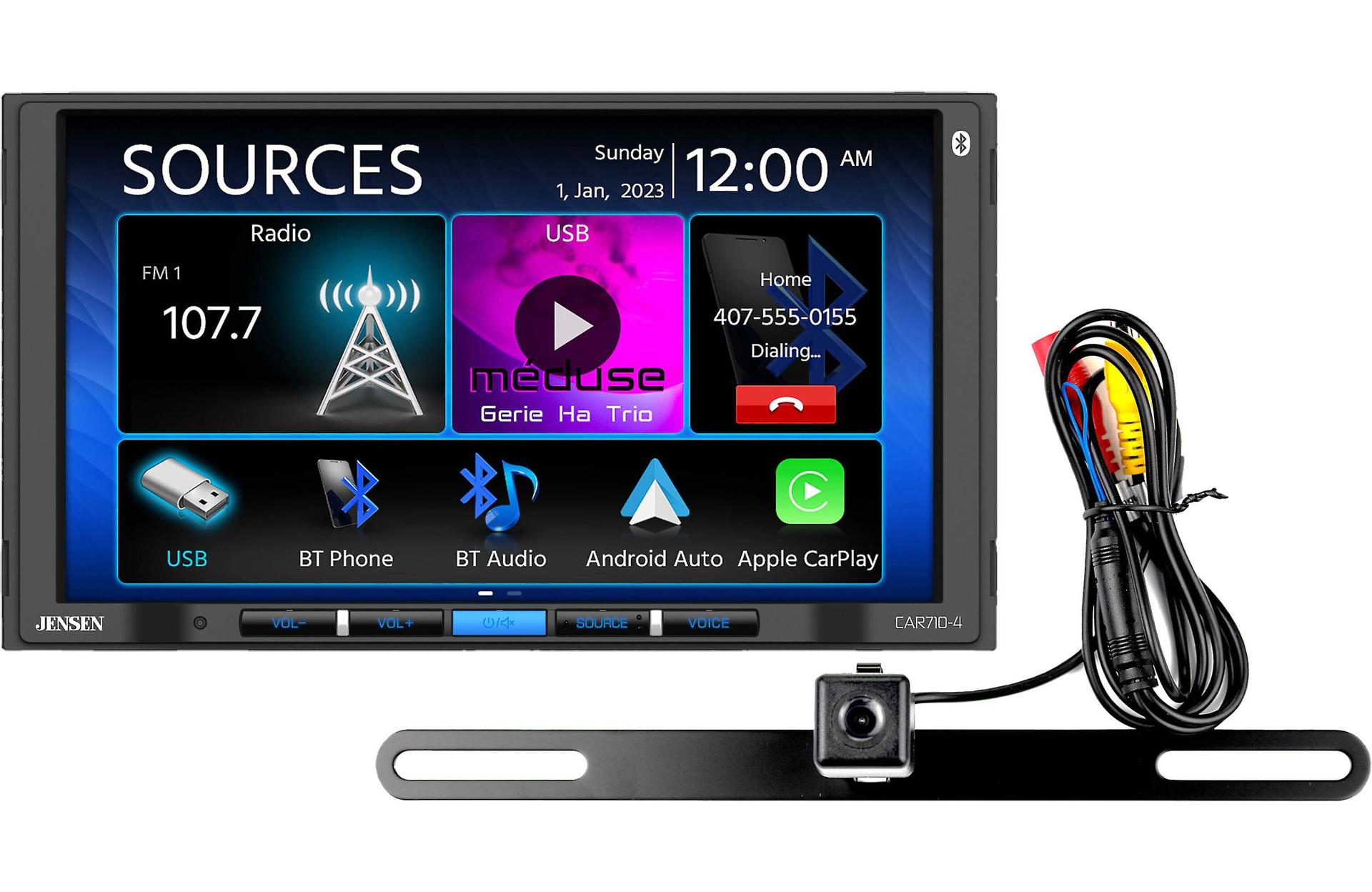

If you need to upgrade your car stereo and add a backup camera, consider the Jensen CAR710-BC digital multimedia receiver package. It comes with a rugged backup camera, works well with your smartphone, features a 7" touchscreen, has built-in Bluetooth, and it can work with your steering wheel controls. It also has a 3-year warranty one of the best in the industry.

Talk to me, phone

Connect your phone directly to the stereo through the USB port and you'll be able to talk to your car via Siri, Google, or your preferred smartphone genie. Speak into the external microphone and ask for your favorite music streaming service for many of the features and apps of Android Auto and Apple CarPlay.

Android Auto: Android Auto lets you use your Android phone with the touchscreen or through hands-free voice control, bringing you the convenience of Google Maps, weather, music, your phone, and text messages. Learn more at www.android.com/auto.

Apple CarPlay: CarPlay lets your iPhone communicate with your vehicle. It includes voice command and hands-free capabilies with minimal distraction. Access your phone, messages, music library, navigation, and third-party streaming music apps. Find out more at www.apple.com/ios/carplay.

Back that bumper up

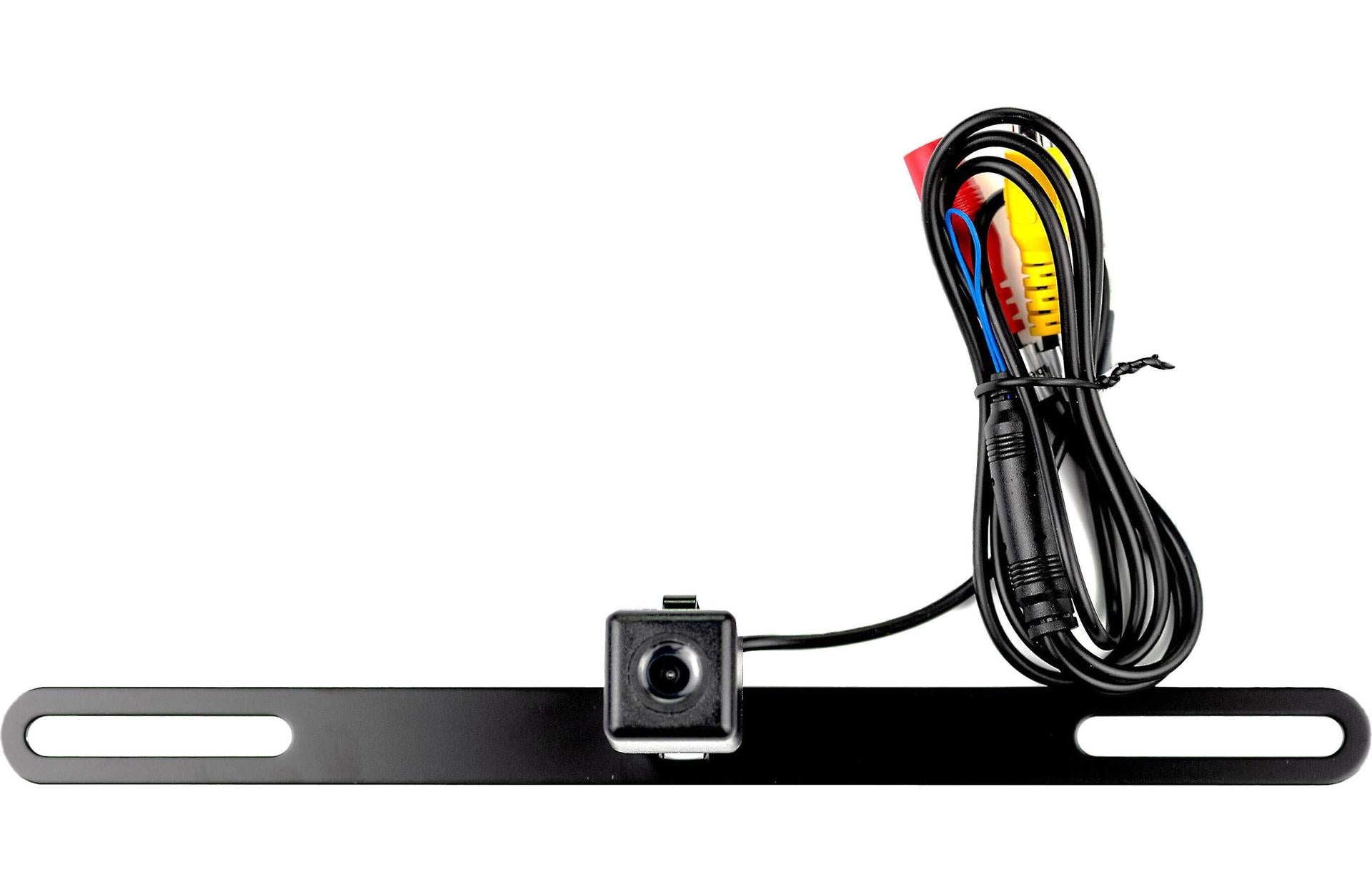

Get a close-up on your bumper clearance with the included Jensen BUCAM350 backup camera. This rugged camera is IP67 dust- and water-resistant and has a CMOS image sensor that works well in low-light conditions. It includes parking lines to help give you a reference line between your car and what's behind you. Mounting hardware is included.

Bluetooth for wireless integration

Bluetooth lets you enjoy wireless streaming for your favorite stored music, music services, podcasts, and audiobooks. Of course, you'll be able to take and make calls while keeping your hands on the wheel an awesome safety feature when you need to take that call.

Shut it off with the push of a button

Sometimes it's easier to find a button when driving. This receiver has push buttons that let you quickly turn the screen on and off, adjust the volume, use the voice control, and mute the sound without swiping through menus.

Product highlights:

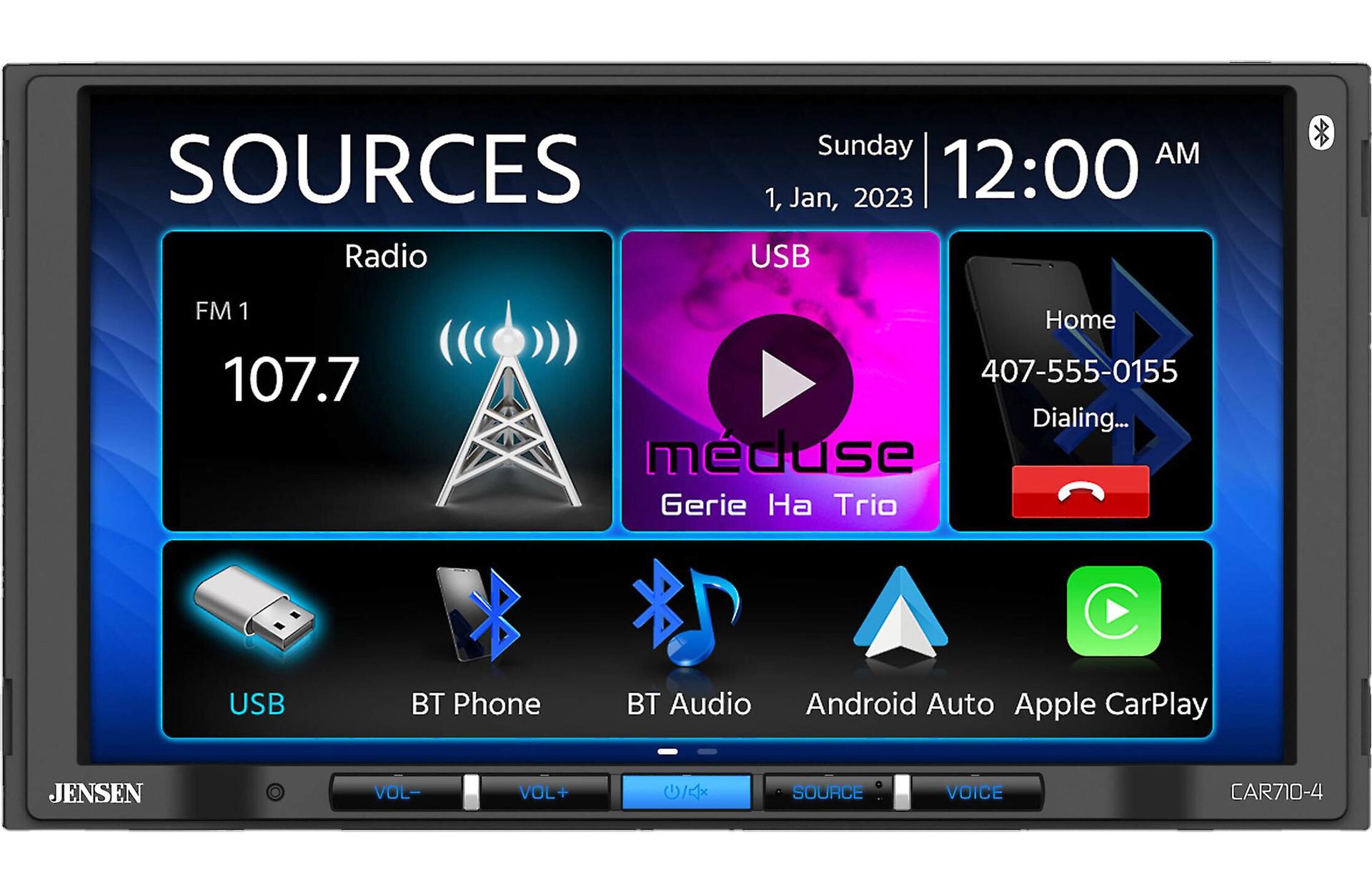

digital media receiver with 7" touchscreen display (does not play discs)

package includes a CMOS color backup camera

built-in AM/FM tuner

fits in double-DIN dash openings

Smartphone features:

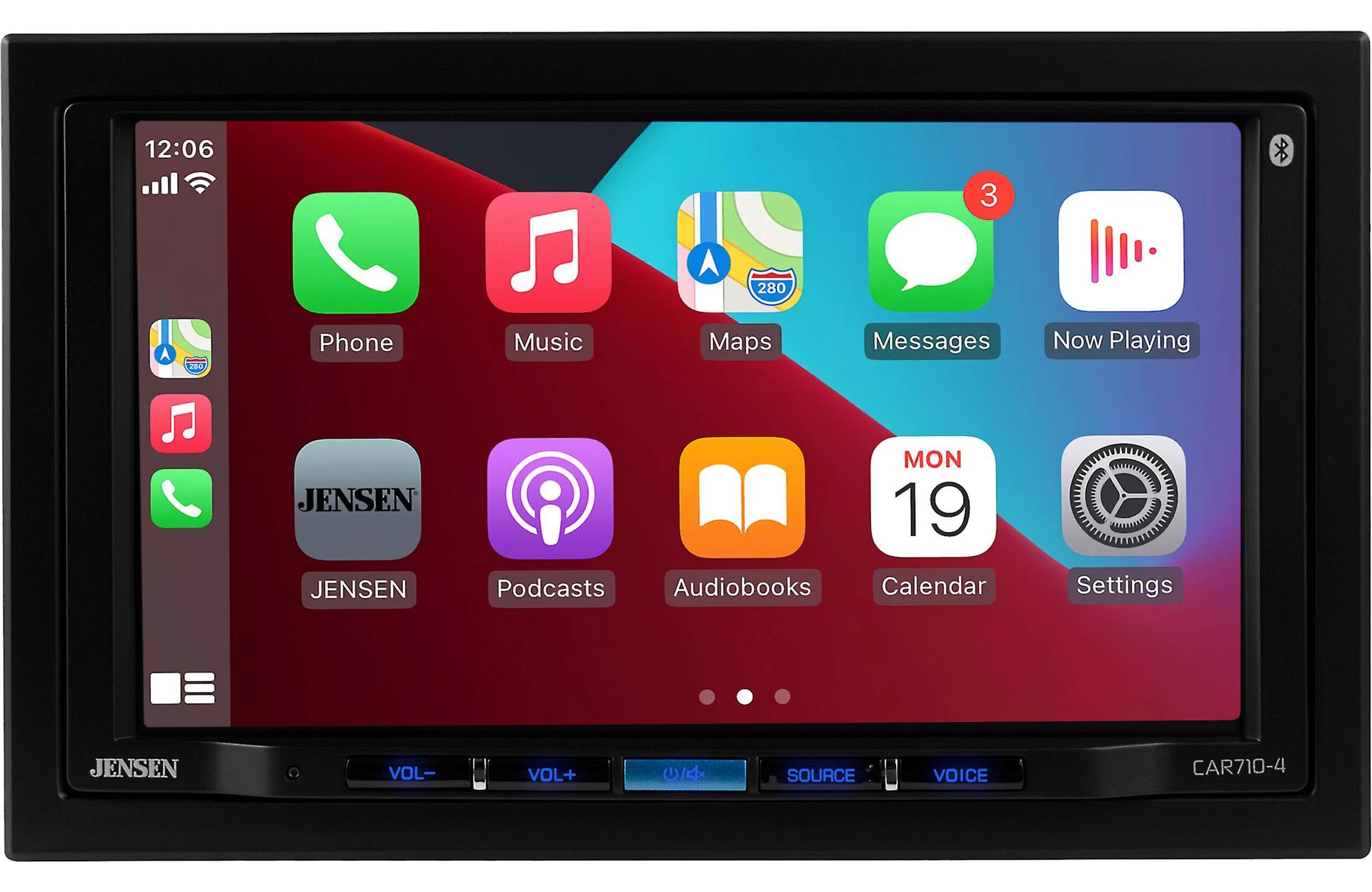

Apple CarPlay compatible (requires wired connection)

Android Auto compatible (requires wired connection)

front-panel button to activate Siri or Google Assistant

Bluetooth for hands-free calling and audio streaming

Audio/video features:

8-band EQ with 8 preset EQ curves

MP3/FLAC playback

Xvid and MP4 video file playback via thumb drive (will not play back video from smartphones or other devices via USB)

Expandability:

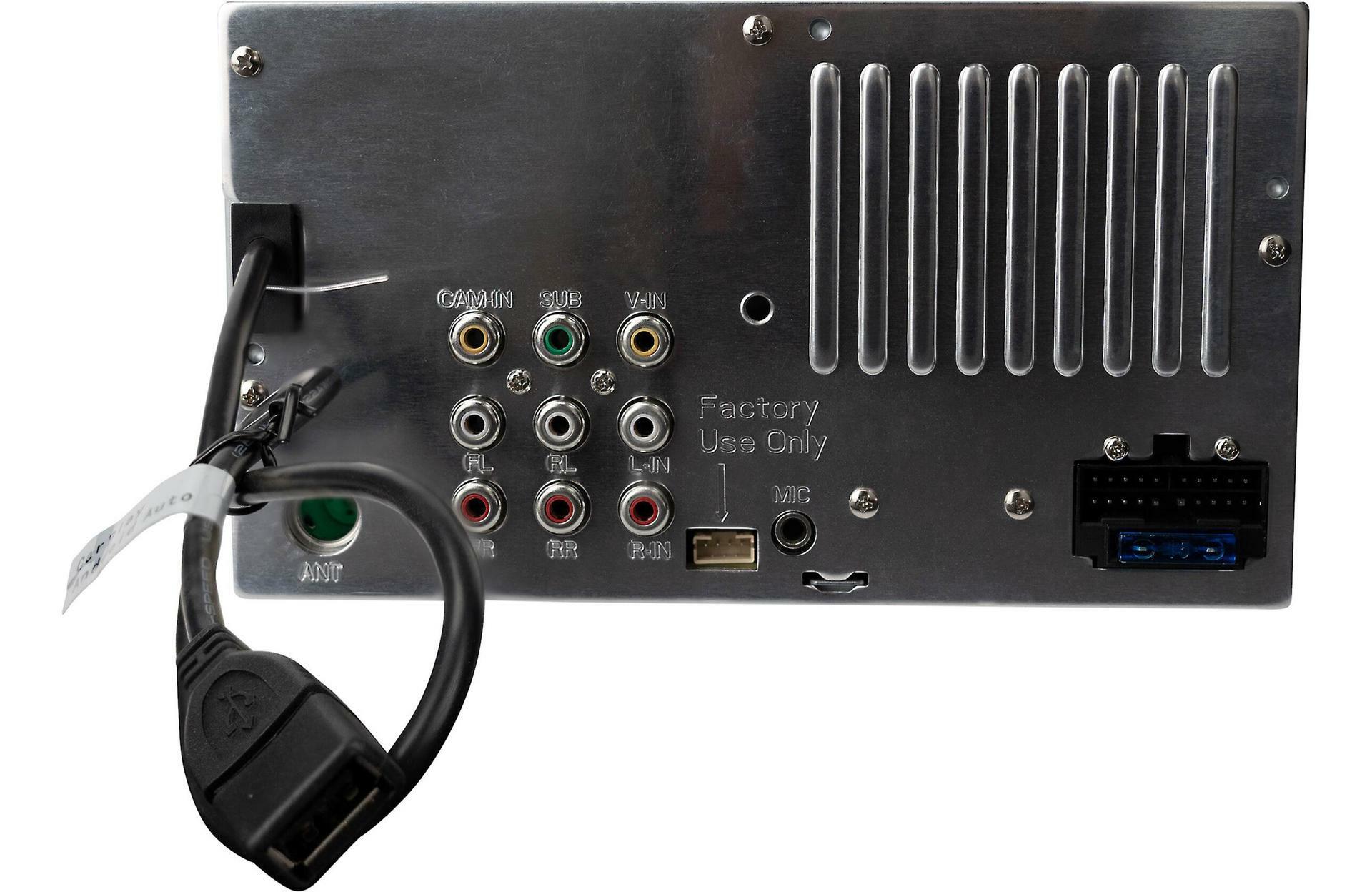

inputs: rear USB-A input, rear A/V input (RCA), rear-view camera input (RCA)

outputs: 5-channel preamp outputs (4-volt front, rear, mono sub)

Camera information:

CMOS color backup camera

universal-fit license plate mount

RCA video output

IP67 dust- and water-resistance rating

Other information:

wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)

CTA-2006 compliant

dimensions: 7.015"W x 3.955"H x 5.105"D

What's in the box:

Jensen CAR710-4BC owner's manual

If you need assistance accessing this owner's manual, please give us a call.

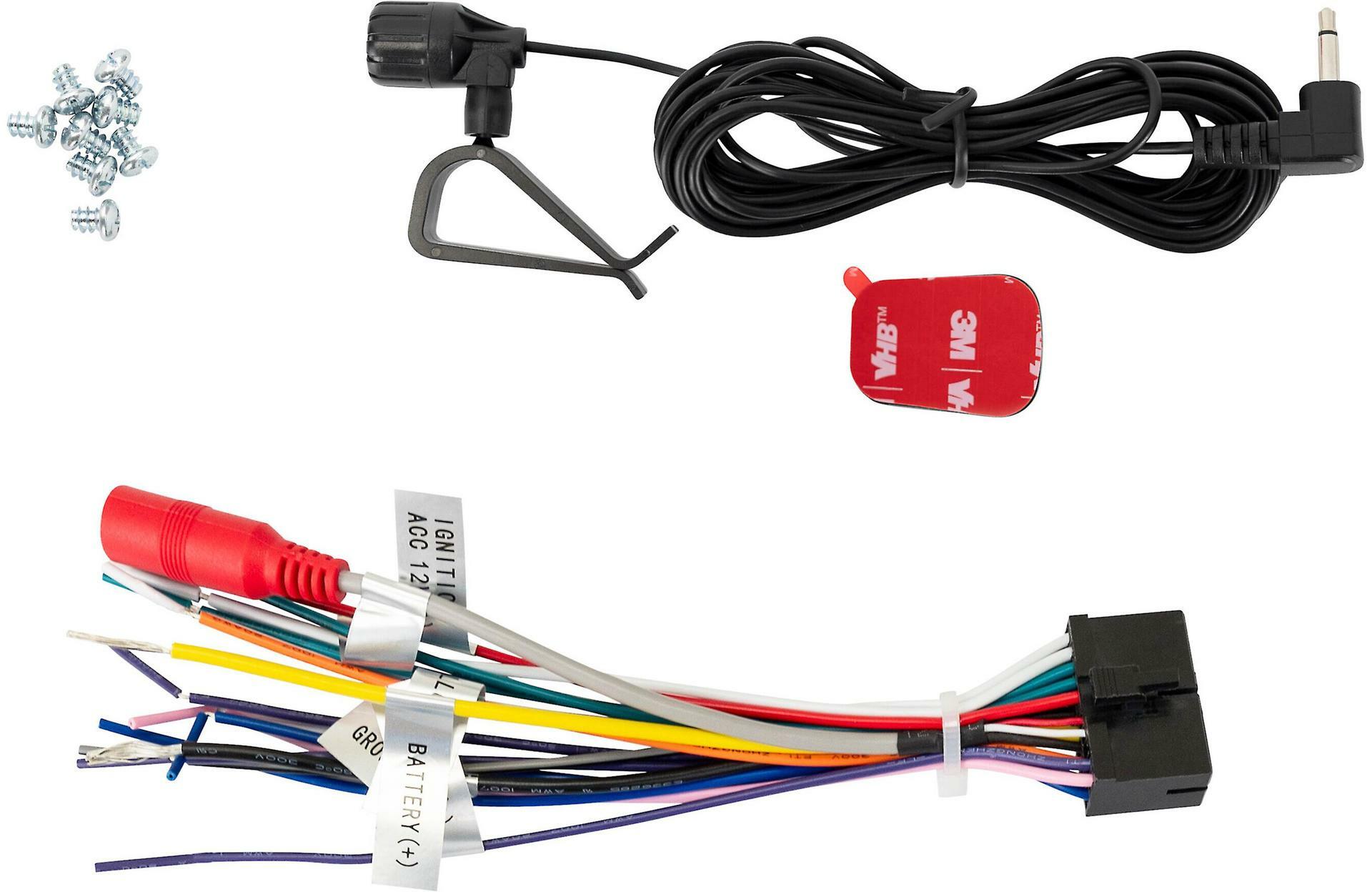

Jensen CAR710-4:

Digital multimedia receiver (15A fuse)

Wiring harness

Preout/AV harness

Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector

Self-adhesive bracket

Trim-ring

8 Pan-head ISO-screws

Quick Start Guide

Warranty Registration Card

Jensen BUCAM350: Backup camera with integrated license-plate bracket and attached 40" video & power cable

24' Video extension cable

7' Power & ground harness (inline 1A AGU fuse)

Installation instructions
