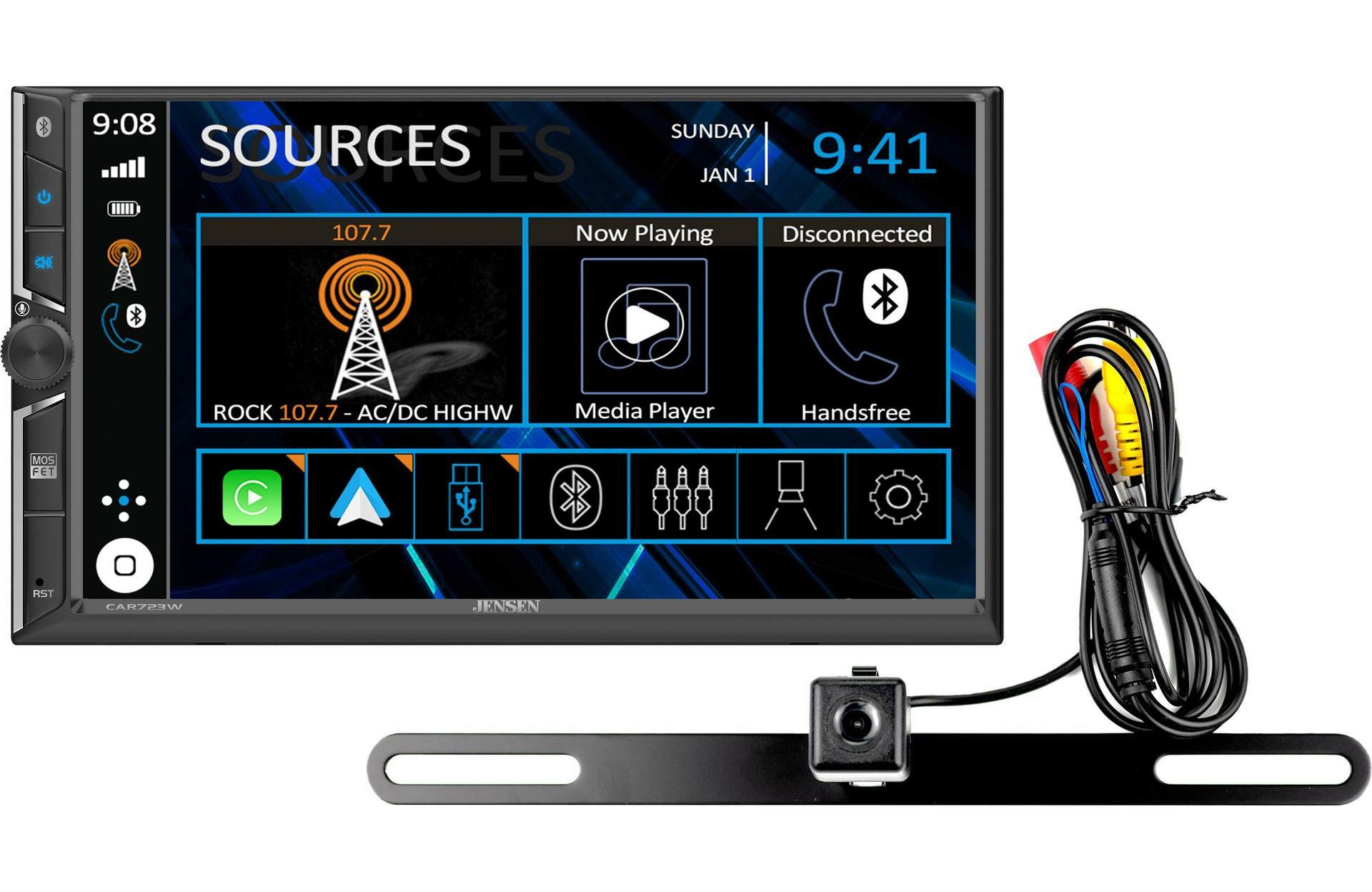

Jensen CAR723W-BC apple carplay android auto media receiver with backup camera

Jensen CAR723W-BC

apple carplay andriod auto Digital media receiver with backup camera

The no-fuss freedom of wireless

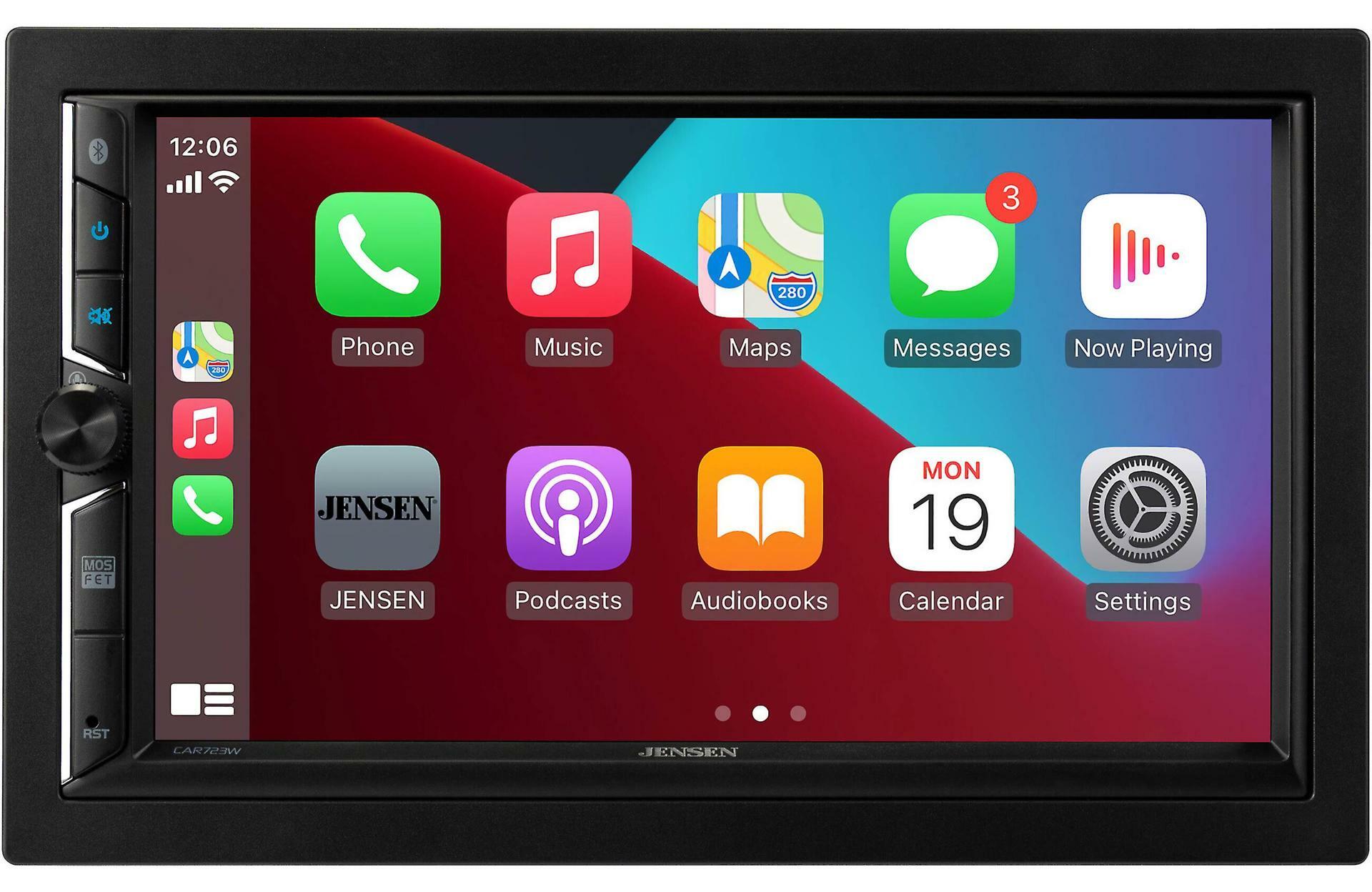

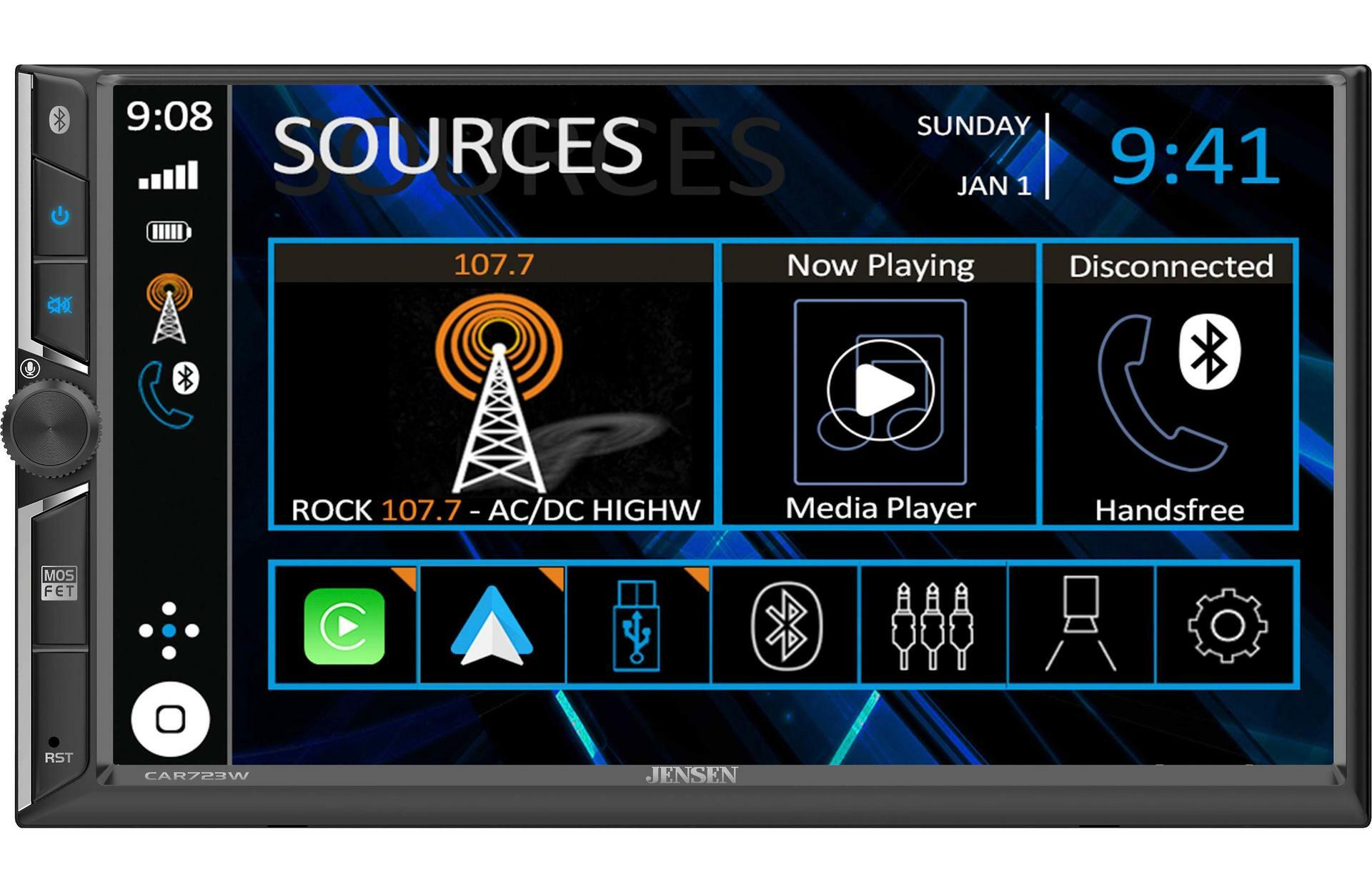

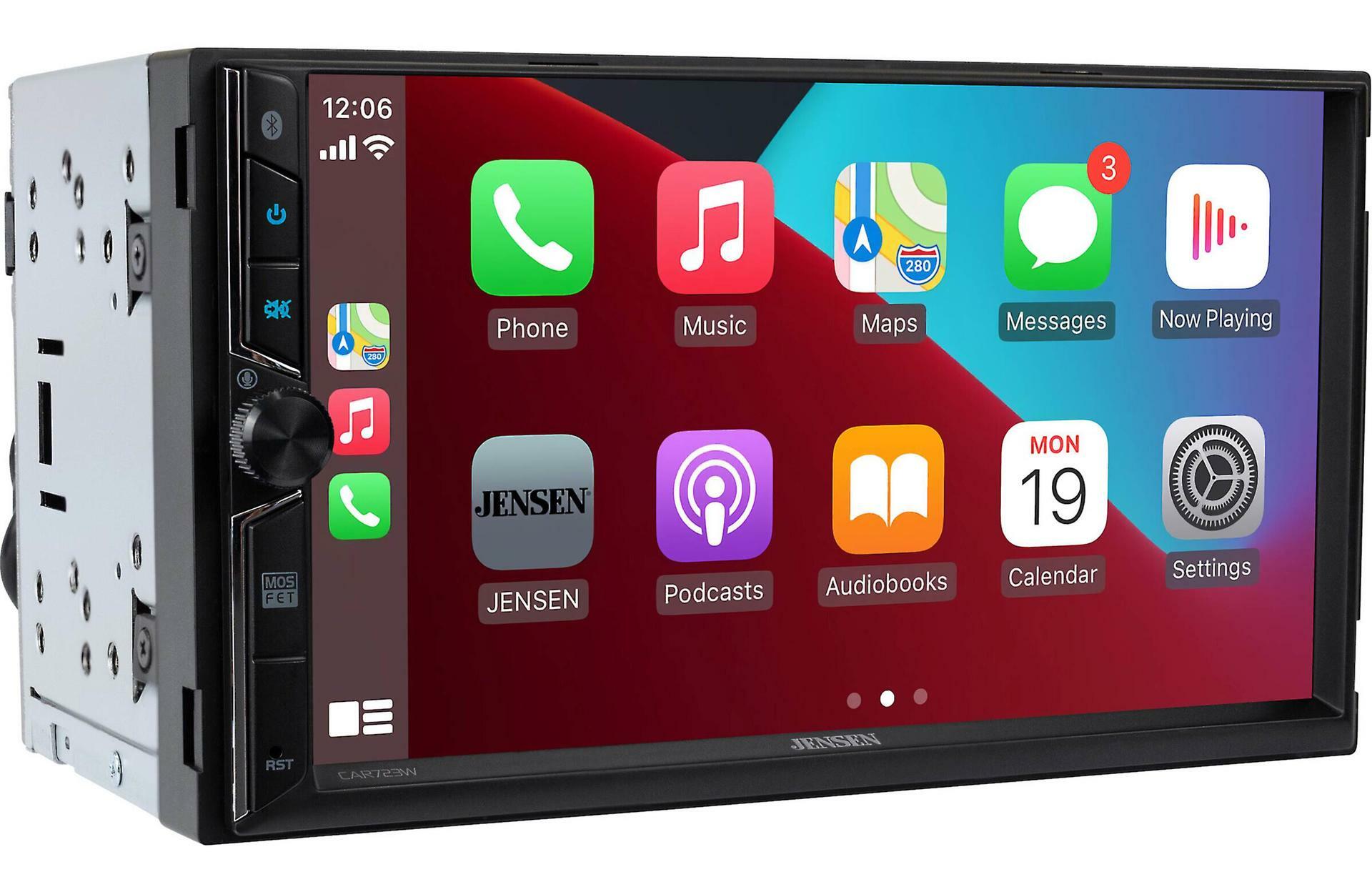

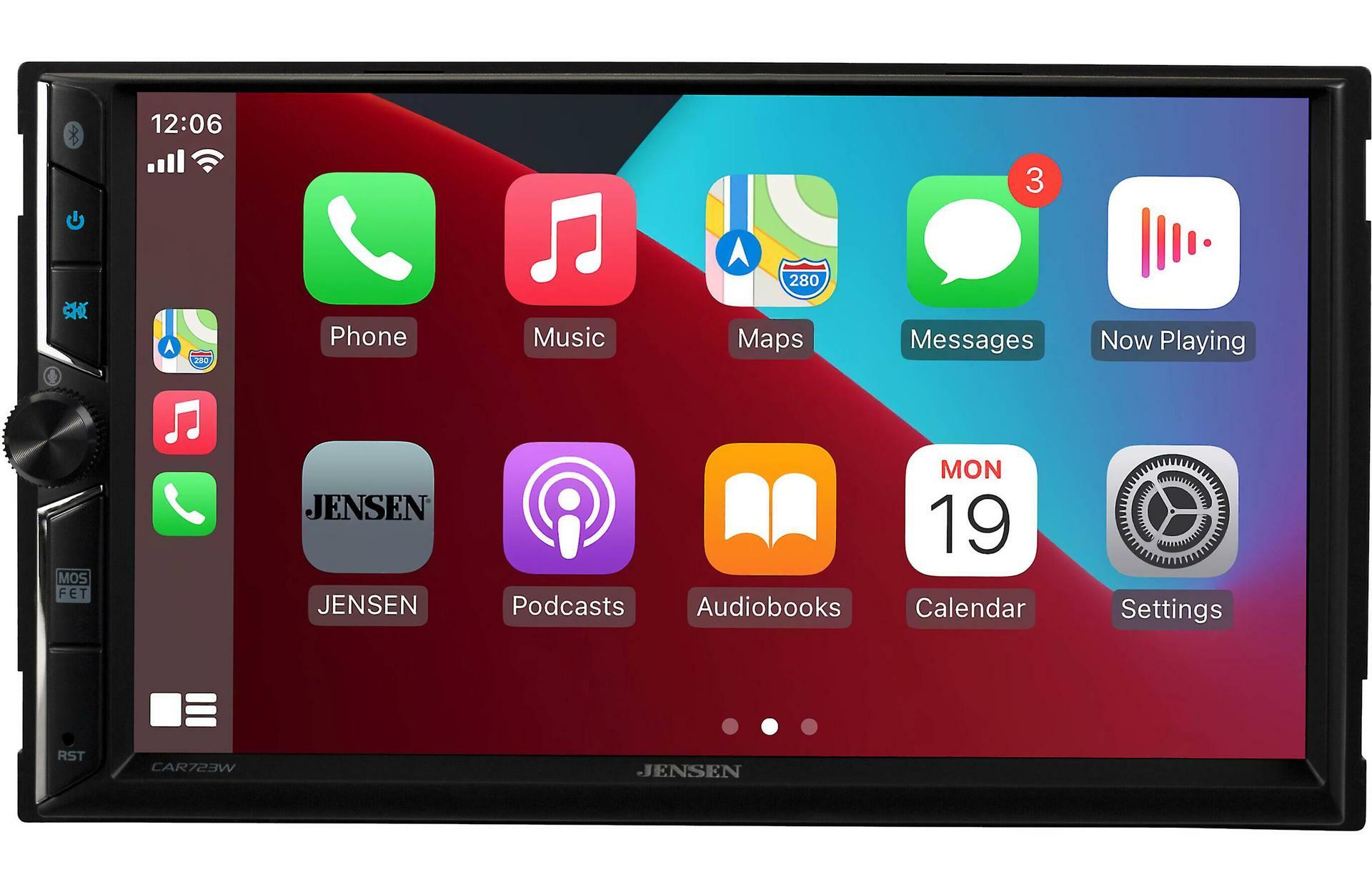

Wired gets the job done. Want to take it to the next level? Go wireless. This package's Jensen CAR723W digital multimedia receiver offers wireless command of your smartphone from a 7" capacitive touchscreen. Once you've experienced the freedom of controlling your music, calls, podcasts and apps with wireless Apple CarPlay or Android Auto, you won't want to go back. Fire up the engine, and your phone connects instantly.

Nail those tight spots

The receiver gives you more than just phone control. It works with the supplied Jensen BUCAM 350 backup camera, and it has two camera inputs, so there is room to add an additional front or side camera if you want more visibility. The camera is IP67 rated for dust- and water-resistance, and its CMOS sensor excels in low light. With a clear view of all your blind spots, you'll be a sharpshooter in any parking space.

Apple CarPlay and Android Auto

CarPlay integrates your iPhone into the driving experience with a seamless interface, allowing you to access iPhone content with the sound of your voice. That means easy access to your music library, audiobooks, phone, messages, navigation, and many third-party streaming music apps, too. Learn more at www.apple.com/ios/carplay.

If you're an Android user, this receiver is ready for your phone, too. Android Auto integrates your Android device into the driving experience without distracting you from the job at hand driving. You'll have easy voice access to Google Maps, weather, music, and apps, not to mention your text messages. And you can make calls, too, of course. Get more info at www.android.com/auto.

Packed with state-of-the-art features

The CAR723W offers useful features to modernize your ride. A push button gives you smooth access to voice assistants, and the 7" capacitive touchscreen makes it easy to flip through your apps. Bluetooth provides hands-free calling and wireless music streaming. Jam out to your favorite streaming service or queue up an audiobook and hit the road. Add an adapter (sold separately) to retain access to your steering wheel controls when you're driving.

The stereo has a 10-band equalizer with 7 presets so you can fine-tune the sound for every track. Dual rear USB ports will keep your phone juiced, and you can play media straight from a thumb drive.

Power up with more amps

This stereo makes your sound system upgradeable. It comes with three sets of preamp outputs ready to feed power to any amplifiers you add so that you can pump up your speakers and add a subwoofer.

Product highlights:

digital multimedia receiver with AM/FM tuner (does not play discs)

package includes a CMOS color backup camera

7" capacitive touchscreen display

fits double-DIN dash openings

Bluetooth for hands-free calling and audio streaming

Smartphone features:

wireless or wired Apple CarPlay and Android Auto compatible

push-to-talk button for smartphone assistants

Camera information:

CMOS color backup camera

universal-fit license plate mount

IP67 dust- and water-resistance rating

Audio/video features:

FLAC/MP3 file playback via USB

10-band EQ with 7 preset EQ curves

Expandability:

inputs: 2 rear USB inputs, rear A/V input (RCA), front and rear camera inputs

outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

built-in internal amp (16 watts RMS CTA-2006/60 peak x 4 channels)

compatible with most factory steering wheel audio controls (adapter required)

CTA-2006 compliant

What's in the box:

Jensen CAR723W:

Digital multimedia receiver (15A fuse)

Trim-ring (pre-installed)

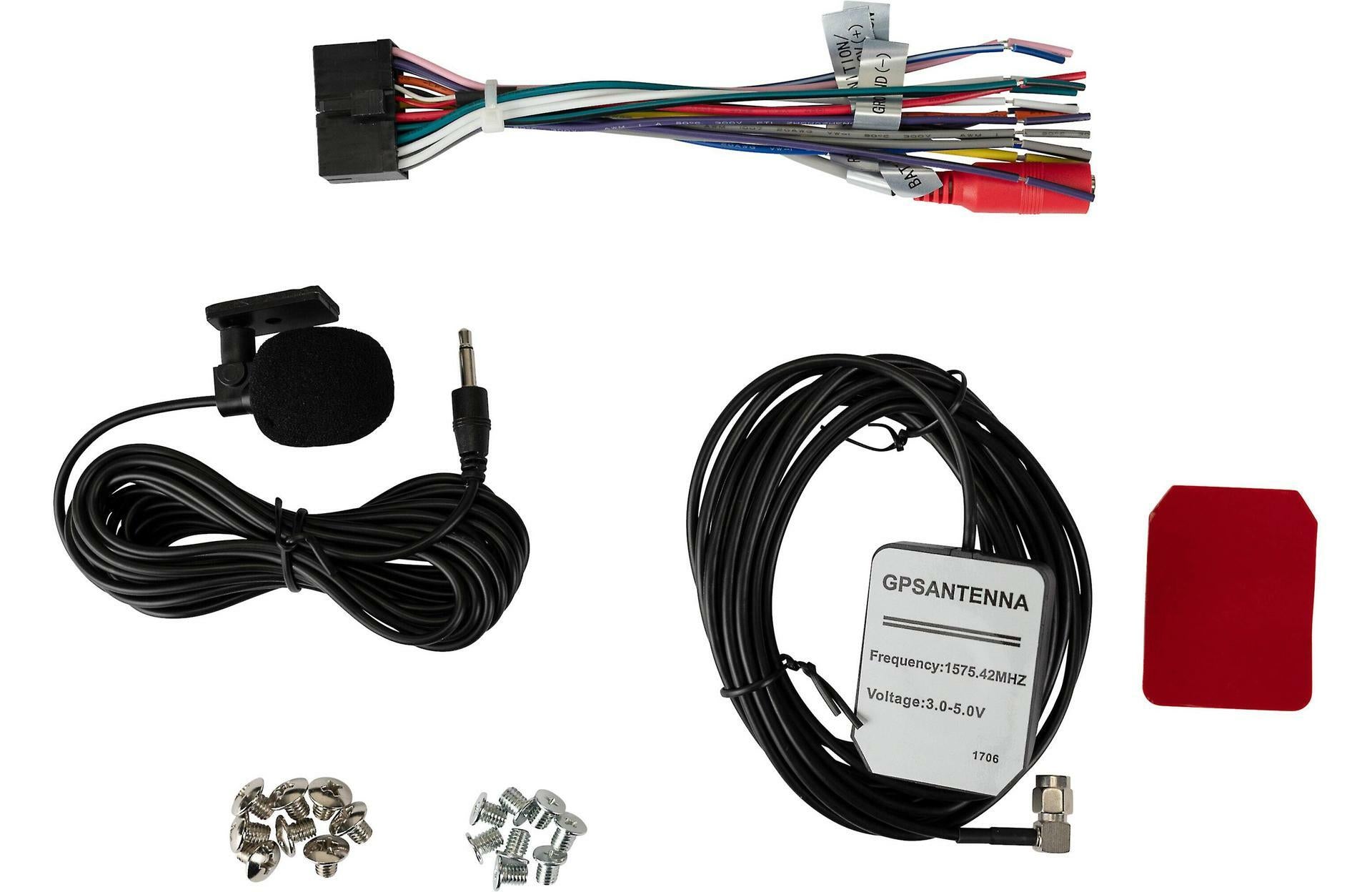

Wiring harness

GPS antenna (attached 9.75' cable terminated by SMB connector)

Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector

Self-adhesive GPS antenna pad

8 Pan-head ISO-screws

8 Counter-sunk ISO-screws

Quick Start Guide

Warranty/Registration card

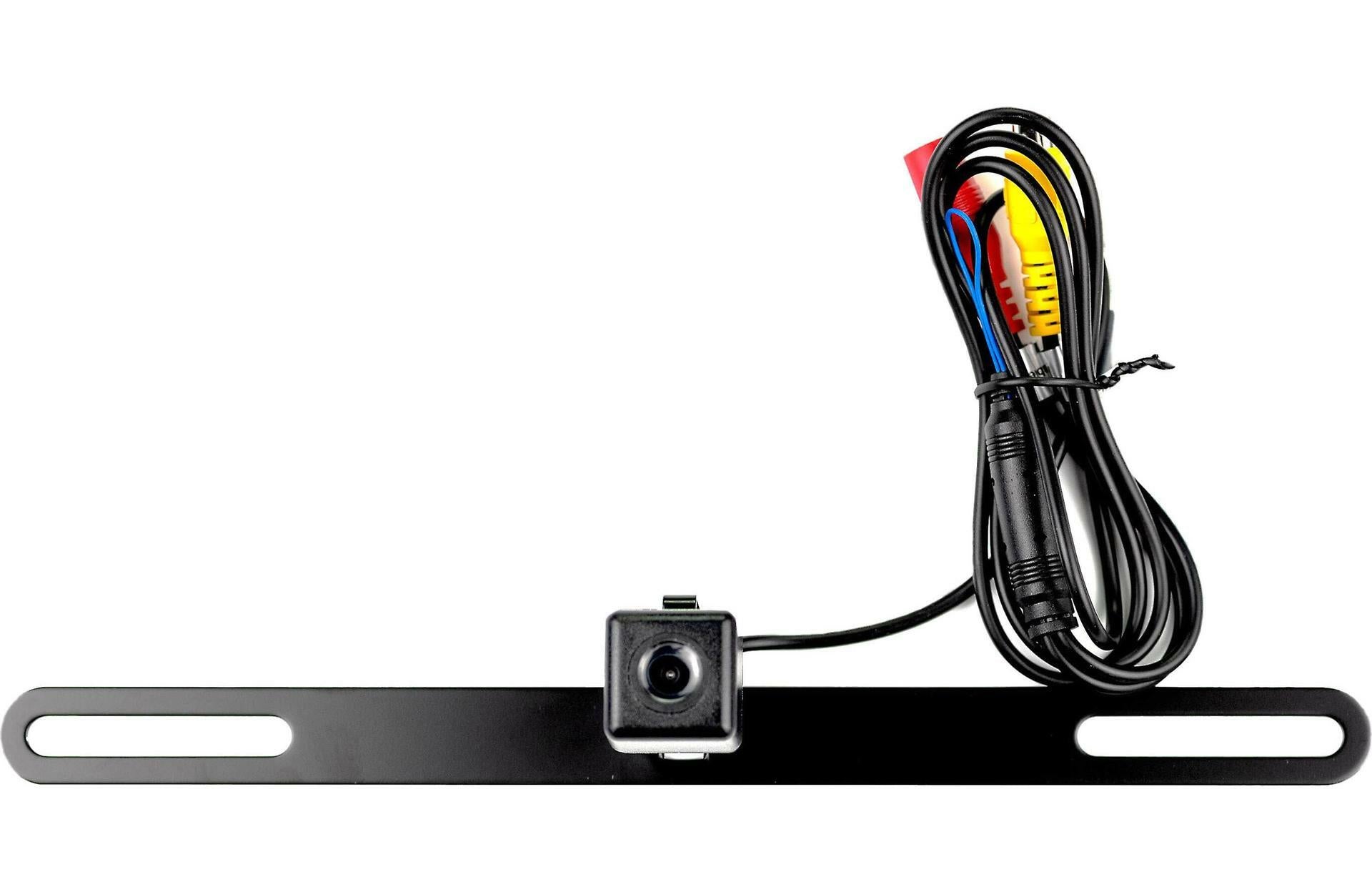

Jensen BUCAM350: Backup camera with integrated license-plate bracket and attached 40" video & power cable

24' Video extension cable

7' Power & ground harness (inline 1A AGU fuse)

Installation instructions
