Sold Out

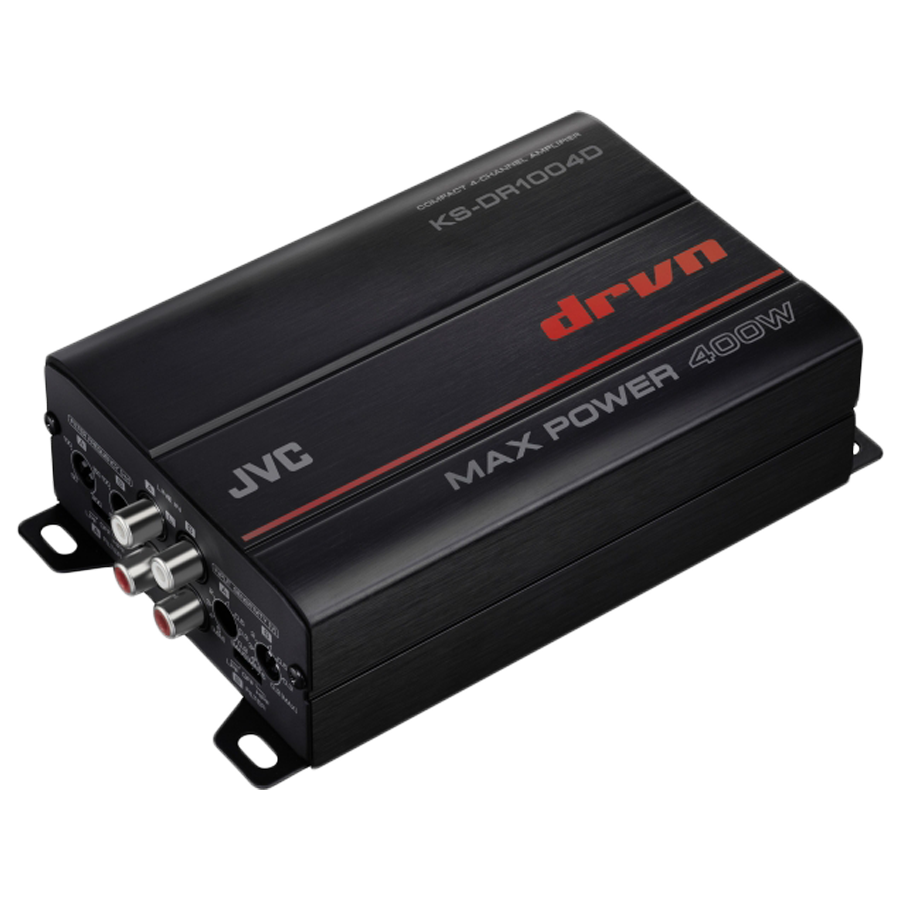

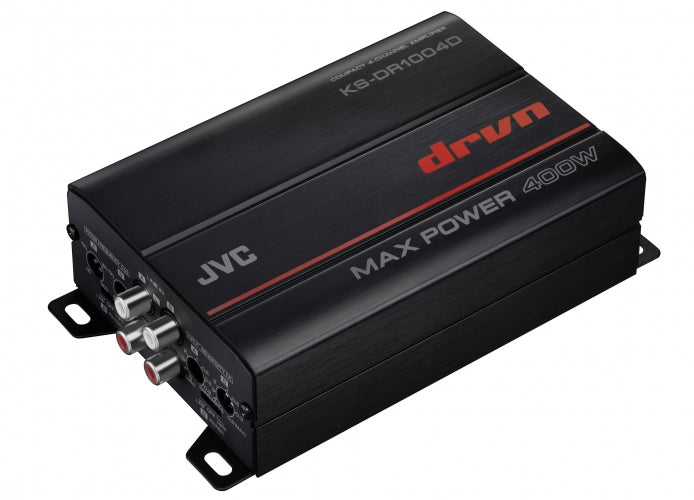

JVC KS-DR1004D Mobile 4-Channel Marine/Powersports Amplifier
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
- Maximum Power Output 400W
- RMS Power Output (4 ohm) [ 1% THD 14.4V] 45W x 4 (20 - 20,000Hz)
- RMS Power Output (2 ohm) [ 1% THD 14.4V] 45W x 4 (1,000Hz)
- RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V] 90W x 2 (1,000Hz)
- Class Class-D
- Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant > 82dB
- Load Impedance Allowance 2 - 8 ohms

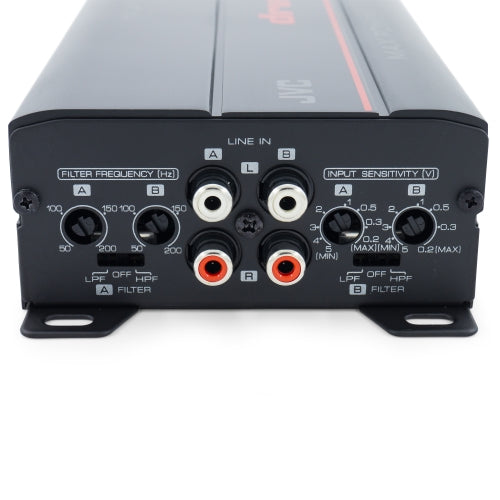

- HPF 50Hz - 200Hz (-12dB/oct)
- LPF 50Hz - 200Hz (-12dB/oct)
- RCA Input Ach L/R, Bch L/R
- High Level Input (Speaker Level Input) Yes
- High Level Input Auto Power Control (Signal Sensing Turn On) Yes
- Input Sensitivity 0.2 - 5V
- Dimensions (W x H x D) 145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
- Weight 0.7kg (1.5lbs)
TECHNICAL SPECIFICATIONS
Marine/Powersport Amps
Manufacturer: JVC Mobile
Amplifier Type: Marine/Powersport Amplifier
Number of Channels: 4 Channel
Peak Power Output: Up to 500 Watts
Audio unit
- Max Power Output
- 400W
- Rated Power Output
- Stereo (4 ohms)
- 45W x 4 (20Hz - 200Hz, less than or equal to 1.0% THD)
- Stereo (2 ohms)
- 45W x 4 (1,000Hz, less than or equal to 1.0% THD)
- Bridged (4 ohms)
- 90W x 2 (1,000Hz, less than or equal to 1.0% THD)
- Speaker Impedance
- 4 ohm (2 ohm to 8 ohm allowable)
- Frequency Response ( (+0, -1dB)
- 20Hz - 20kHz
- Input Sensitivity (+0, -3dB)
- 0.2V-5.0V
- Signal to Noise Ratio
- > 98dB
- Low Pass Filter Frequency (-12dB/oct.)
- 50Hz - 200Hz (variable)
- High Pass Filter Frequency (-12dB/oct.)
- 50Hz - 200Hz (variable)
General
- Conformal Coating
- Yes
- Dimensions (W x H x D)
- 145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
- Weight
- 0.7kg (1.5lbs)
