JVC KW-Z1000W 10.1" Floating Digital Multimedia Receiver
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
PRODUCT DESCRIPTION
- Product highlights:
- Digital multimedia receiver with AM/FM tuner (does not play CDs)

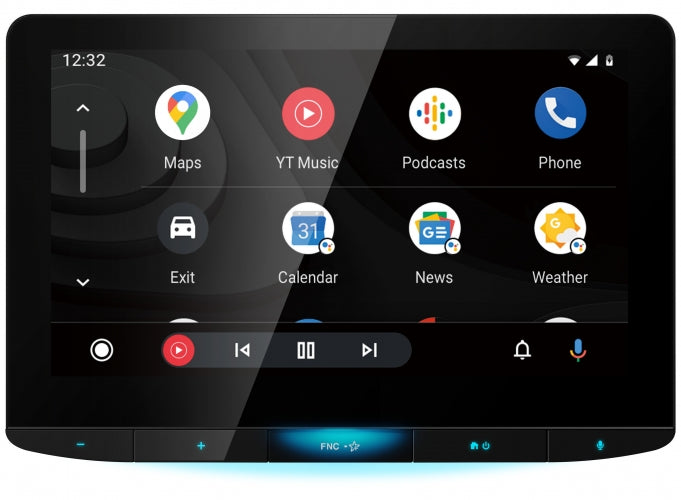

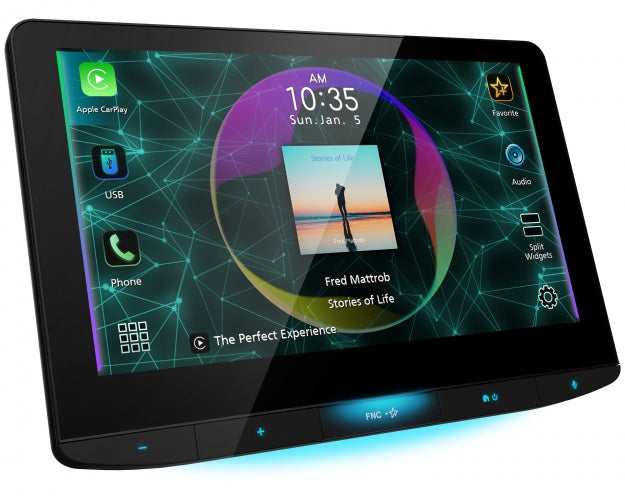

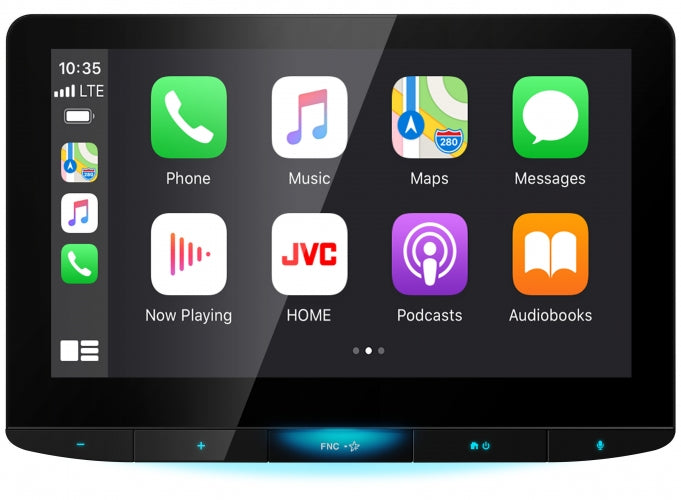

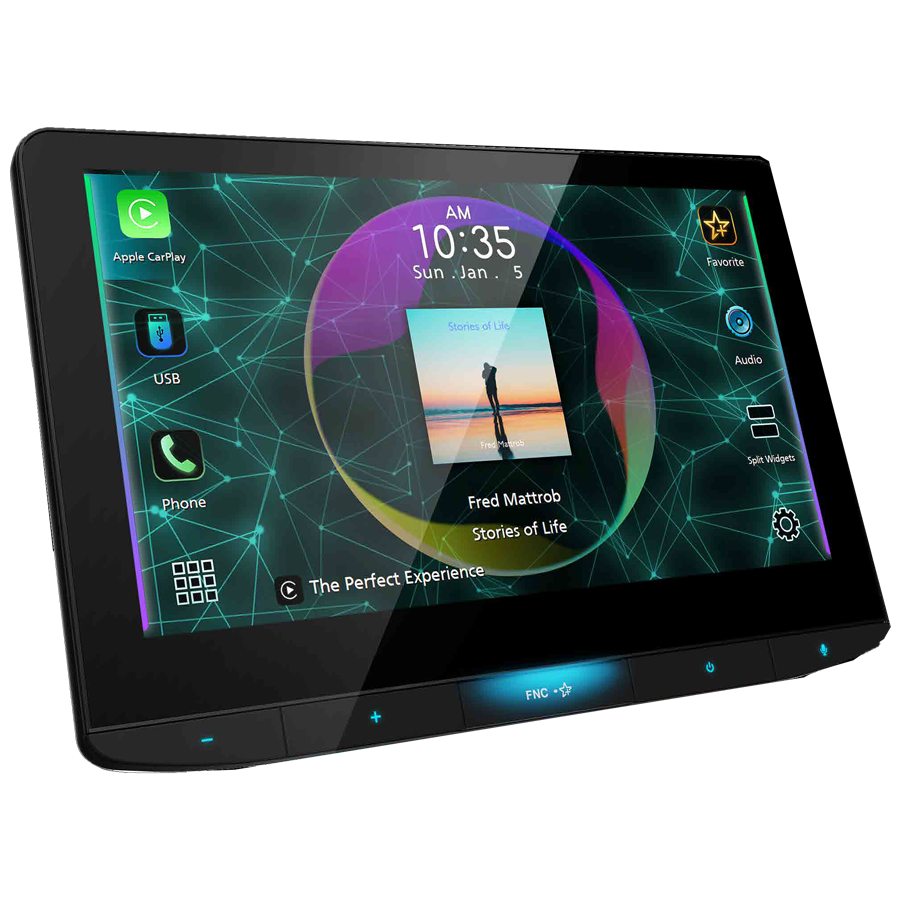

- 10.1" floating capacitive touchscreen display
- Before final installation, depth and height of the display can be adjusted to provide dash vent and control access
- Wi-Fi certified
- Waze-ready with Apple CarPlay or Android Auto
- Customizable display background and live wallpaper
- Manual tilt angle adjustment for better visibility (-10 - +45)
- Plays high-res FLAC and WAV (up to 24-bit/192 kHz), as well as DSD files on USB drives
- Built-in HD Radio tuner
- Receiver chassis fits double-DIN dash openings
- Smartphone Features:
- Compatible with Apple CarPlay or Android Auto (wireless or wired)
- Wireless and wired mirroring for Android; wired for iPhone
- Bluetooth features:
- Hands-free calling and audio streaming with dual phone connection
- JVC Streaming DJ feature allows music streaming and control from up to five paired smartphones
- Built-in LDAC for high-res wireless audio streaming with select Android phones
- Control the stereo using JVC's free Remote app
- Audio/video Features:
- plays USB memory devices
- 13-band parametric equalizer with digital time alignment
- K2 technology improves the digital sound for all music sources
- Subwoofer level, phase, and low-pass crossover controls
- Expandability:
- Compatible with SiriusXM satellite radio tuner
- Inputs: rear USB input, rear A/V input (mini), rear HDMI input, four camera inputs
- Outputs: rear A/V output (mini), 6-channel preamp outputs (5-volt front, rear, subwoofer)
- What's in the box:
- JVC KW-Z1000W owner's manual
- 10.1" Touchscreen monitor
- Source unit (15A fuse)
- Wiring harness
- 39" USB extension cable
- GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- 3-Wire SWC adapter
- Self-adhesive mounting pad
- Large plastic bracket
- 2 Small plastic brackets
- 2 Metal brackets
- 2 Machine screws
- 6 Hex-head screws
- 6 Pan-head ISO-mount screws
- 6 Flat-head ISO-mount screws
- Quick Start Guide
- "CAUTION" note
- Warranty Card
- Other info:
- Important note Monitor dimensions are 10.313" x 7.125". Before ordering, check for possible interference with your dash.
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (22 watts RMS/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDataLink Maestro module
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
TECHNICAL SPECIFICATIONS
Receivers
Manufacturer: JVC Mobile
Bluetooth Connectivity: Yes (Built-In)
DIN Size: Double-DIN
Screen Size: 10"
Head Unit Type: Mechless
Â
Â
Monitor
- High Definition Monitor
- Yes
- Screen Size
- 10.1"W HD Screen
- Touch Panel
- Capacitive / Bonding
- Gesture Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Variable
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
- Wallpaper Capture
- Yes
- Live Wallpaper
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB( Up to192kHz/24bit )
- DSD Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- AVI/MKV Compatible
- USB
- JPEG File Playback
- USB
- PNG File Playback
- USB
- BMP File Playback
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Version 5.0, Wired-Mic included)
- Hands Free Call
- Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming ..
