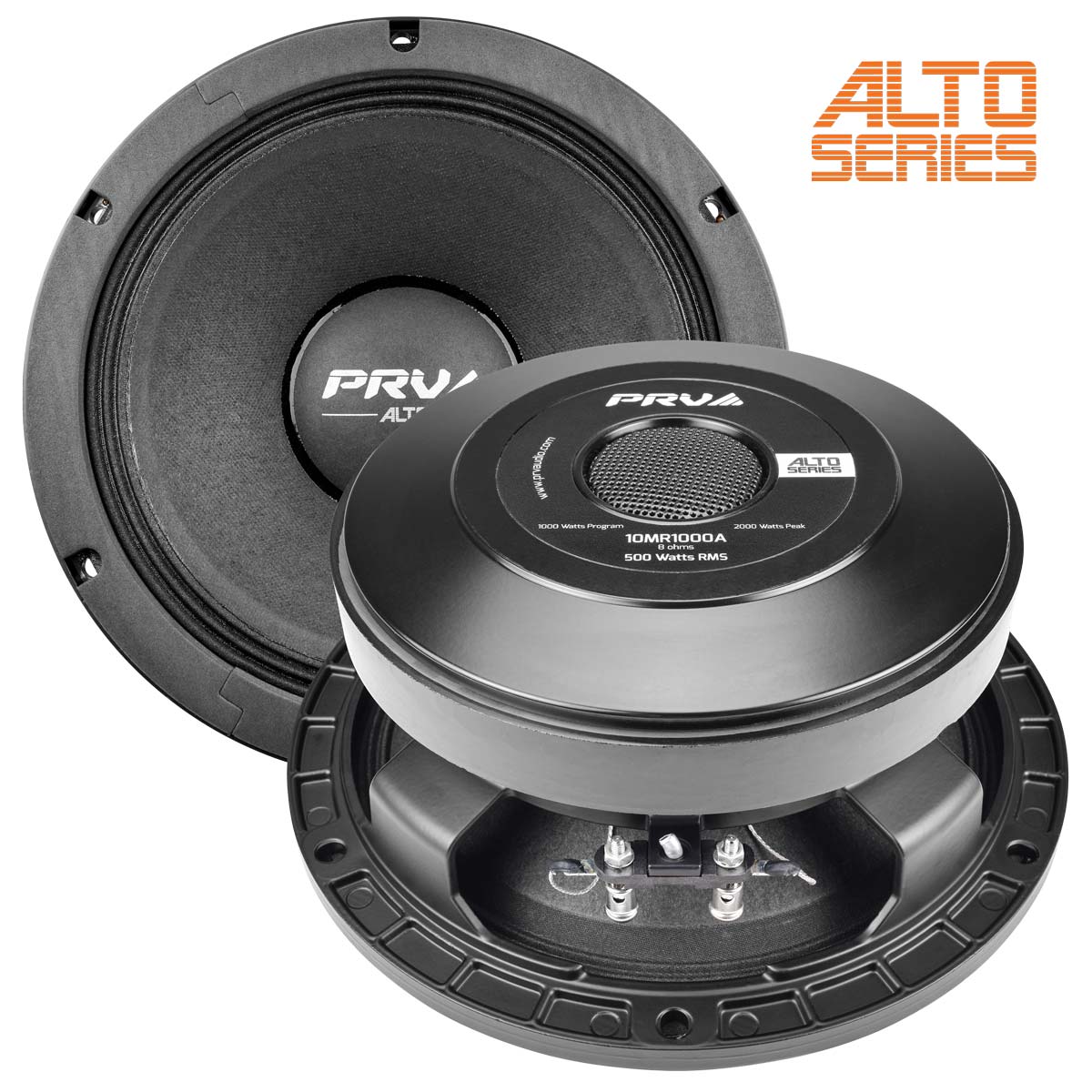

PRV Audio 10MR1000A 10" Midrange Loudspeaker
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
The PRV Audio 10MR1000A is the evolution of our midrange loudspeakers. Our R&D department pushed the output limits on a midrange driver, creating a unique sound reproduction and easy to fit on custom systems due to its shallow mounting depth, making it our top of the line midrange PRO audio speaker for custom doors.
PRV Audios Alto Series loudspeakers were carefully crafted to reproduce a natural, smooth sound while remaining dynamic.
Highlights

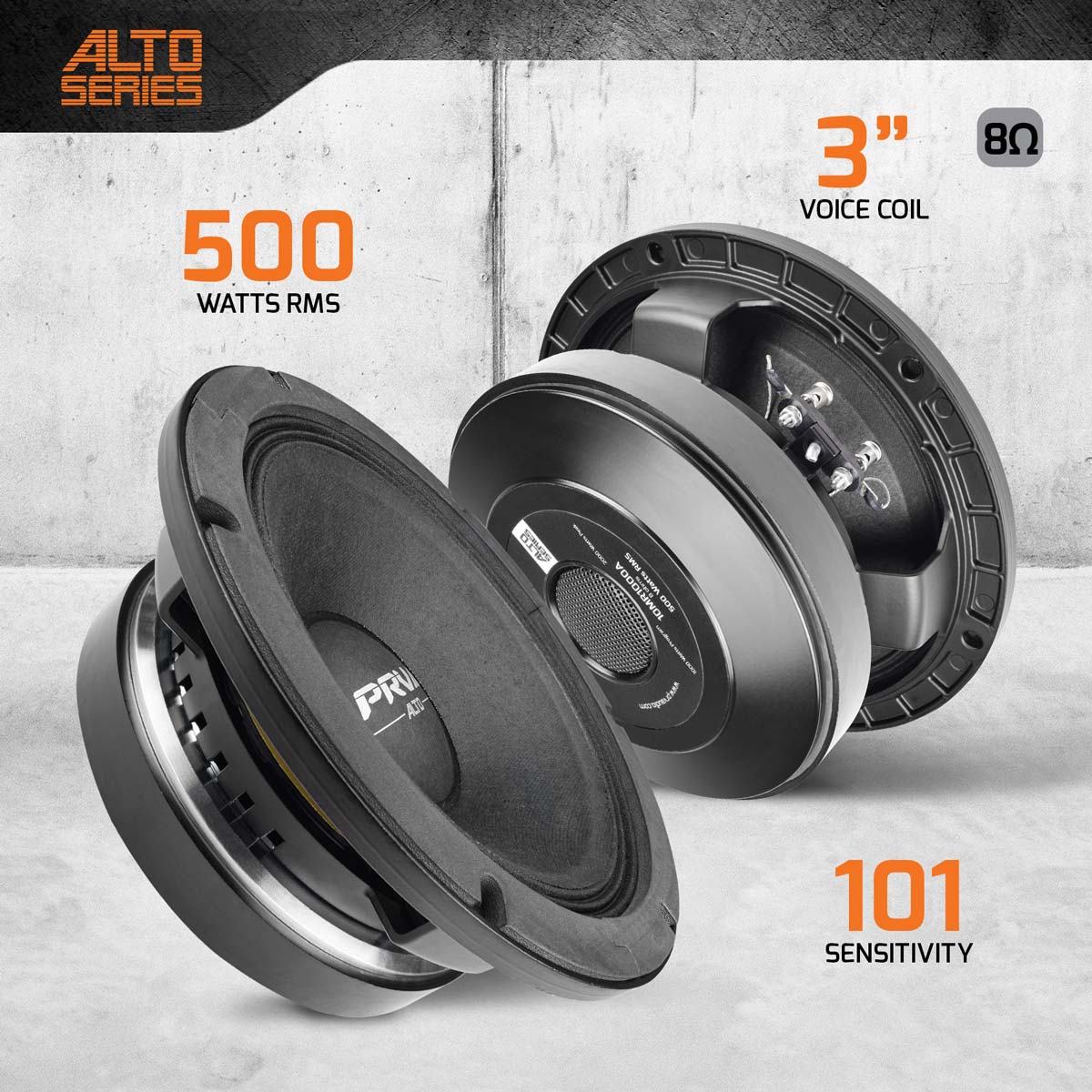

- 3? Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance 8 ohms.
- 1000 watts continuous program power rating makes a high acoustical output.
- Excellent performance in compact enclosures and custom door panels.
- 101 dB sensitivity, making it capable of generating a lot of output!
- Detailed vocal reproduction on a wide frequency band response (Frequency Response 75 6500 Hz)
GENERAL SPECIFICATIONS
| Nominal Diameter | 10? (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 500 Watts |
| Program Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 101 dB |
| Recommended High Pass Crossover* *For Full Power Handling | 150 Hz* BT12 *12db Per Octave Crossover |
| Frequency Response at -10dB | 75 6500 Hz |
| Voice Coil Diameter | 3? (75 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 13.8 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.60 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 33.6 l |
| Excursion (mathematical)*** | Xmax | 4.75 mm |
| Free Air Resonance | Fs | 66.1 Hz |
| Mechanical Factor | Qms | 6.77 |
| Electrical Factor | Qes | 0.18 |
| Total Factor | Qts | 0.17 |
| Cone Area | Sd | 330 cm |
| Mechanical Mass | Mms | 26.24 g |
| Bl Factor | Bl | 17.88 Tm |
| Dc Resistance | Re | 5.3 Ohms |
| Inductance | Le | 0.12 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 22.85 g |
| Mechanical Compliance | Cms | 0.221 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

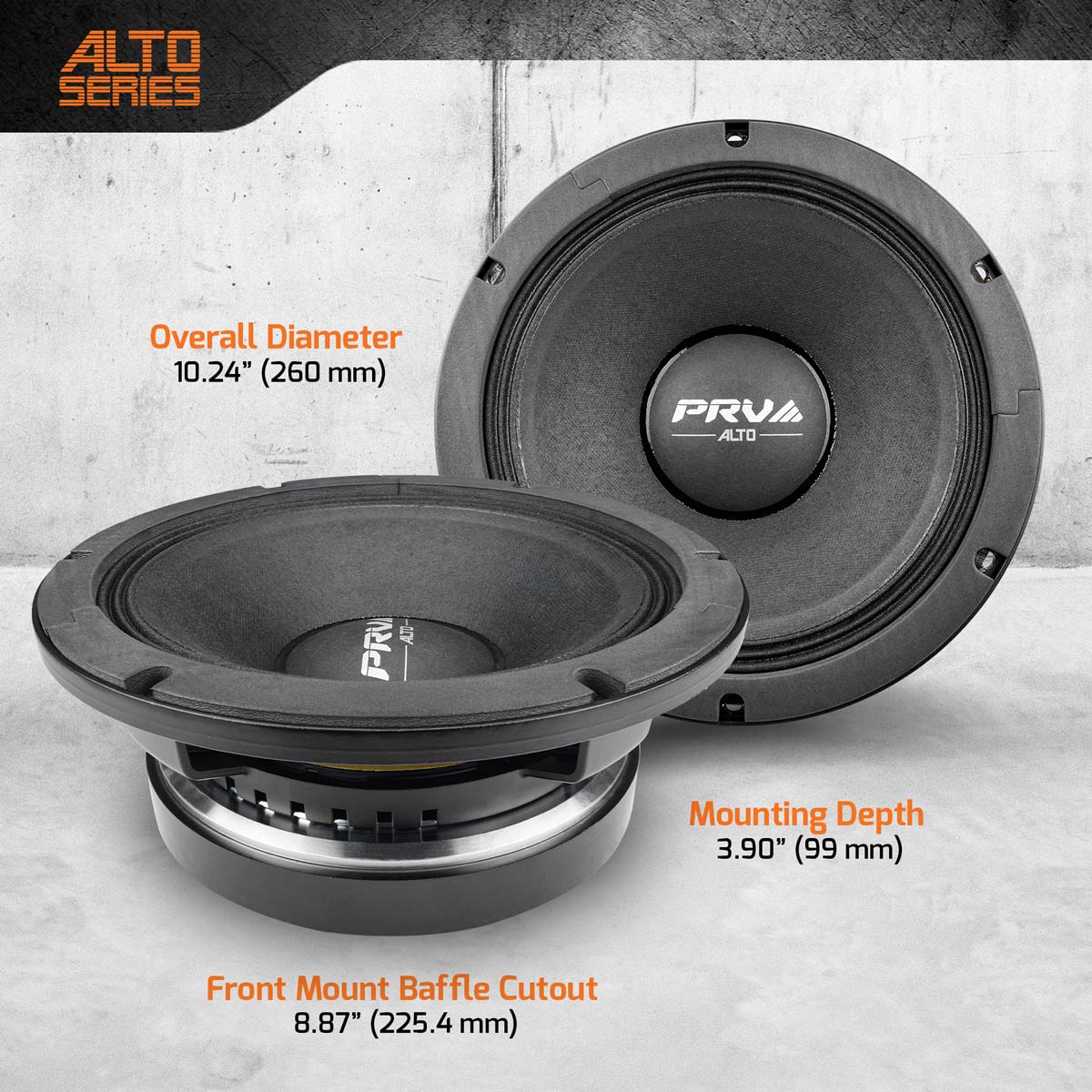

| Overall Diameter | 10.24 (260 mm) |
| Front Mount Baffle Cutout | 8.87 (225.4 mm) |
| Mounting Depth | 3.90 (99 mm) |
| Overall Depth... |
