PRV Audio 10W1000-NDY 10" Woofer Loudspeaker
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
PRV Audios 10W1000-NDY Neodymium Woofer Loudspeaker was carefully crafted to reproduce a natural, smooth sound while remaining dynamic. The PRV Audio 10W1000-NDY is the evolution of our mid bass loudspeakers, our R&D department pushed the output limits on a mid bass driver, creating a unique sound reproduction.
Highlights
- 3? Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance 8 Ohms
- 1000 watts continuous program power rating makes the high acoustical output
- 36 mm peak-to-peak excursion before damage
- 98 dB sensitivity, which makes it capable of generating a lot of output!
- Detailed vocal reproduction on a wide frequency band response

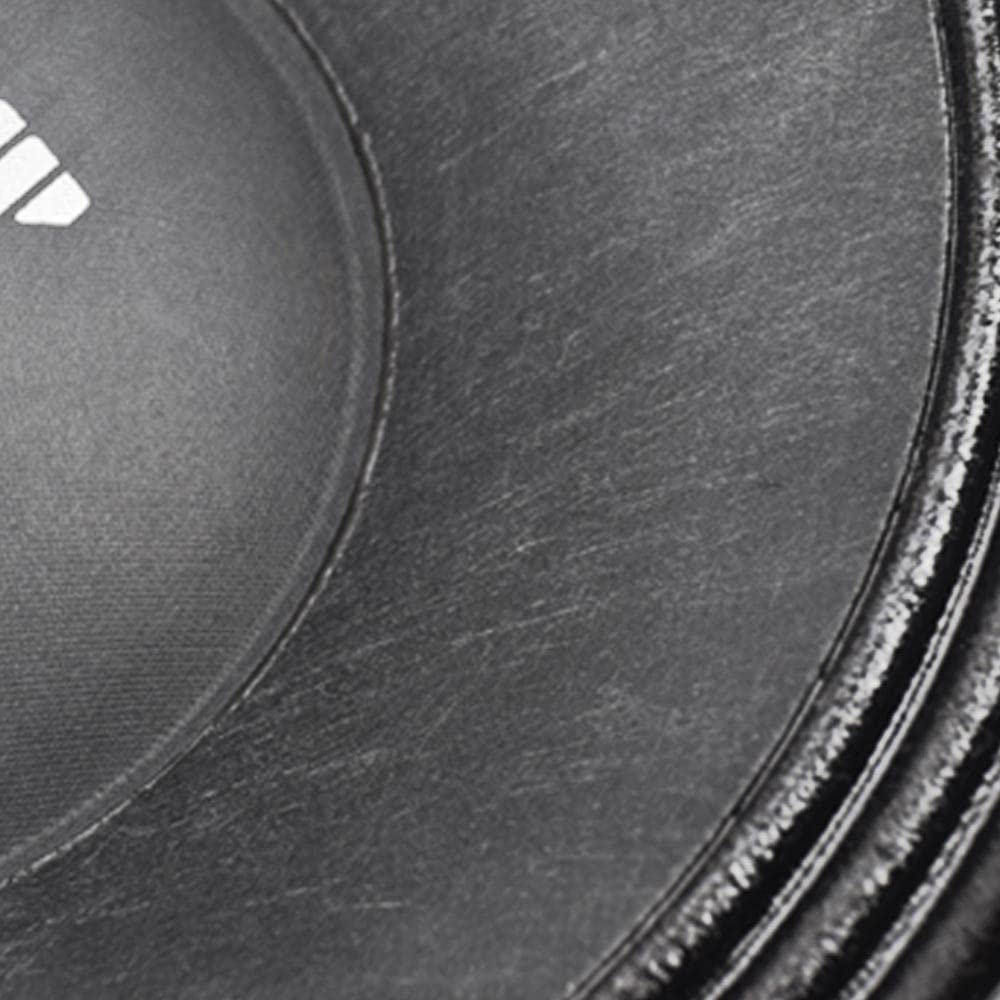

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.

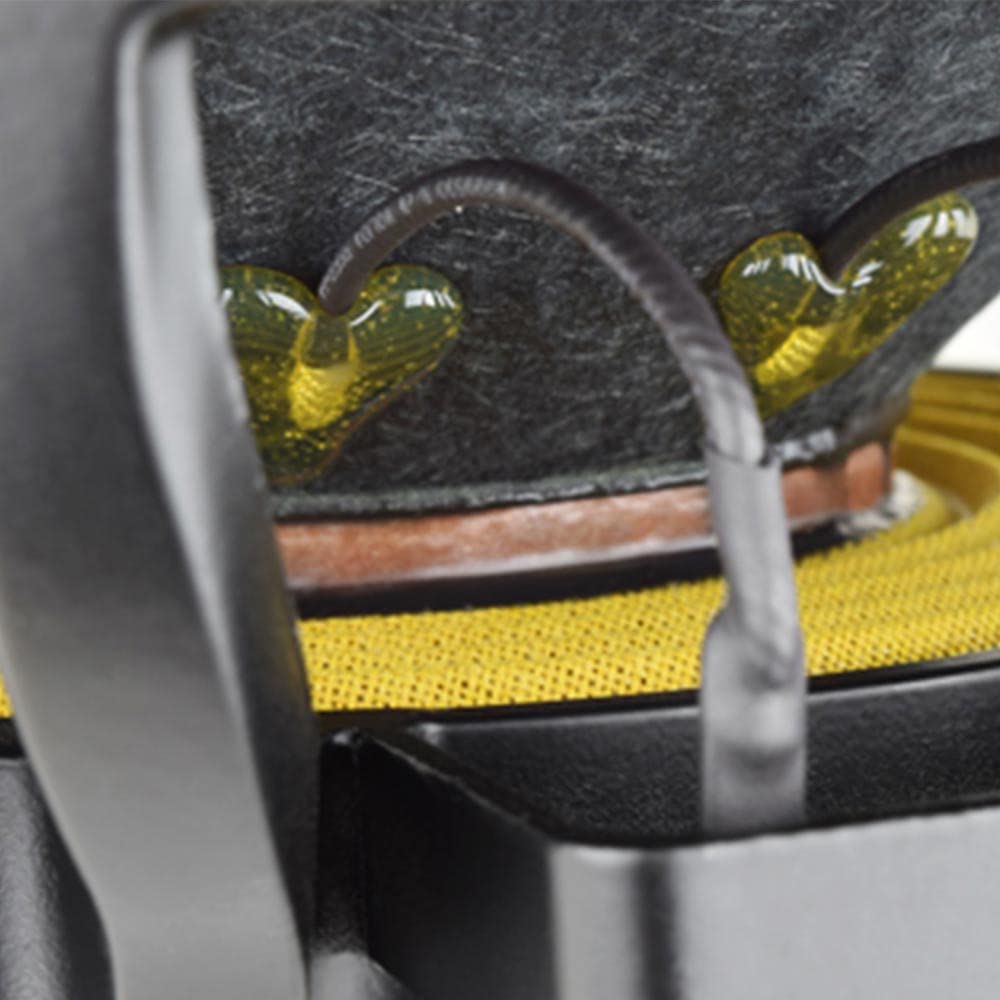

The 10W1000-NDY is an extremely efficient 10? woofer from PRV Audio. To stand up to the use and abuse of the professional sound environment we designed a 3? CCAW voice coil that is wound inside-outside on fiberglass former and features a generous 18 mm winding length for extended Xmax and less distortion. (with a suggested 80 Hz, 12 dB/octave high pass filter in place)!

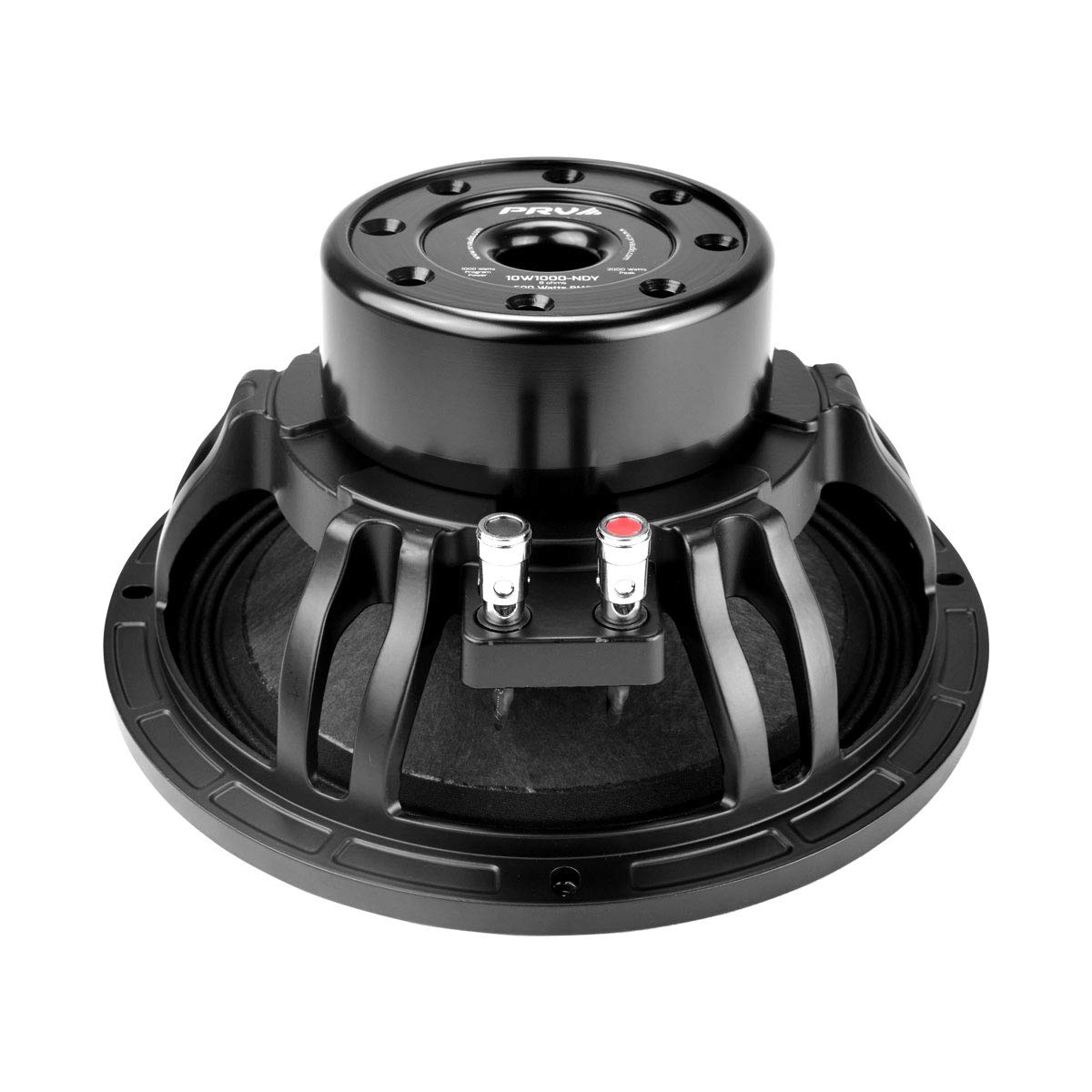

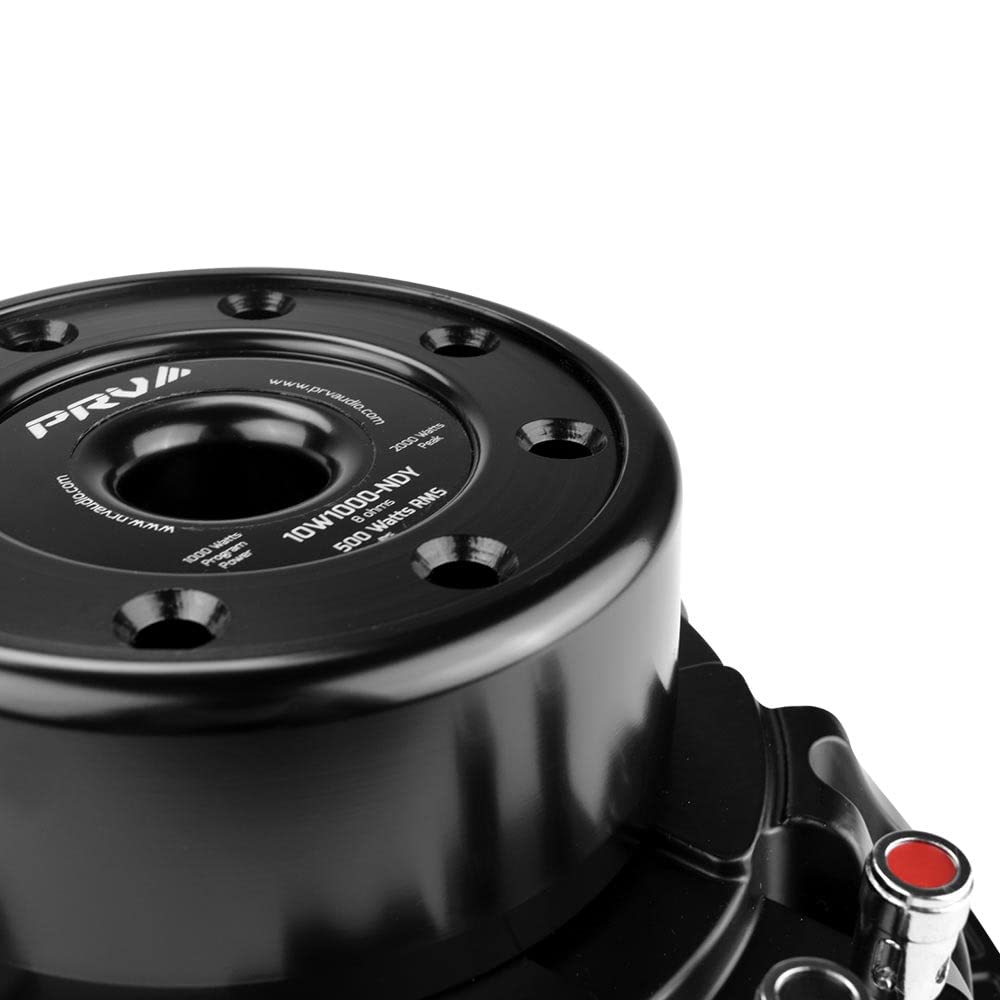

Its powerful optimized neodymium motor is vented to provide excellent cooling.
The large 3? voice coil allows for the high 1,000-watt power handling and warrants the outstanding cooling system implemented into the motor.
The high sensitivity rating of 98 dB 1W/1M which makes it capable of generating a lot of output!
Perfect Component for 3 Way System such as: 10W1000-NDY + 8MR450A + TW700Ti
GENERAL SPECIFICATIONS
| Nominal Diameter | 10? (254 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 500 Watts |
| Program Power | 1000 Watts |
| Sensitivity 2.83V at 1m | 98 dB |
|
Recommended Hi-Pass Crossover** **For Full Power Handling |
80 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 55 5,500 Hz |
| Voice Coil Diameter | 3? (76 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 18.0 mm |
| Former Material | Fiber Glass |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
