PRV Audio 12MB1000FT 12" Midbass Loudspeaker
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
For high output speaker systems, PRV Audios 12MB1000FT mid bass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

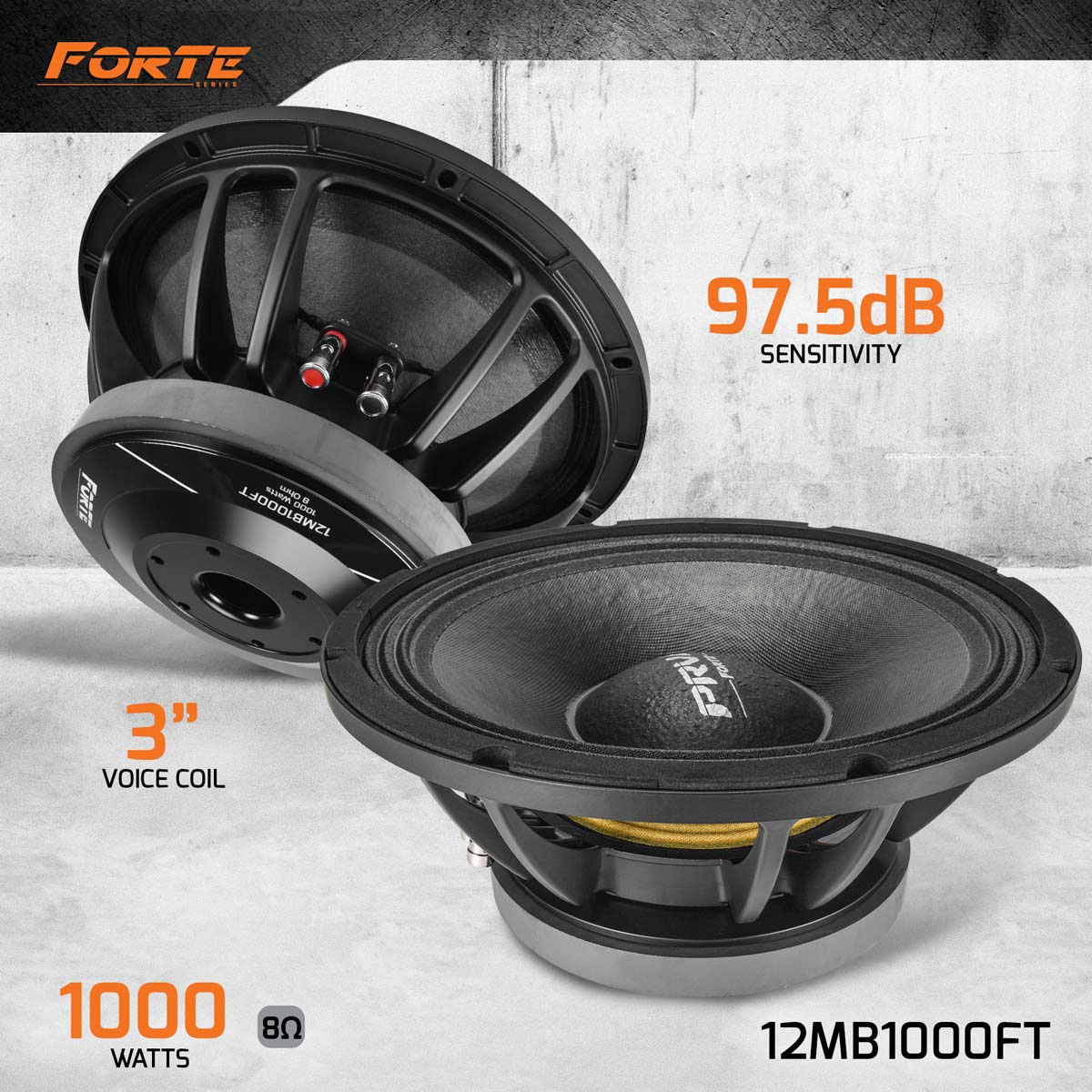

All this attention to detail in the 12MB1000FT makes it one impressive driver. With 97.5 dB efficiency and 1000 watts of continuous program power (RMS), this mid bass is ideally suited to be used as a stage monitor, or in auditorium, touring and outdoor systems. Also, its smooth response from 70 to 3,200 Hz makes it perfect for 2 or 3-way designs.
Highlights
- 3? Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Midbass output
- 1,000 watts continuous program power rating makes high acoustical output
- Excellent performance in 2-way or 3-way systems
- Weather-resistant paper cone and dust cap
- Also Available at 4 Ohm

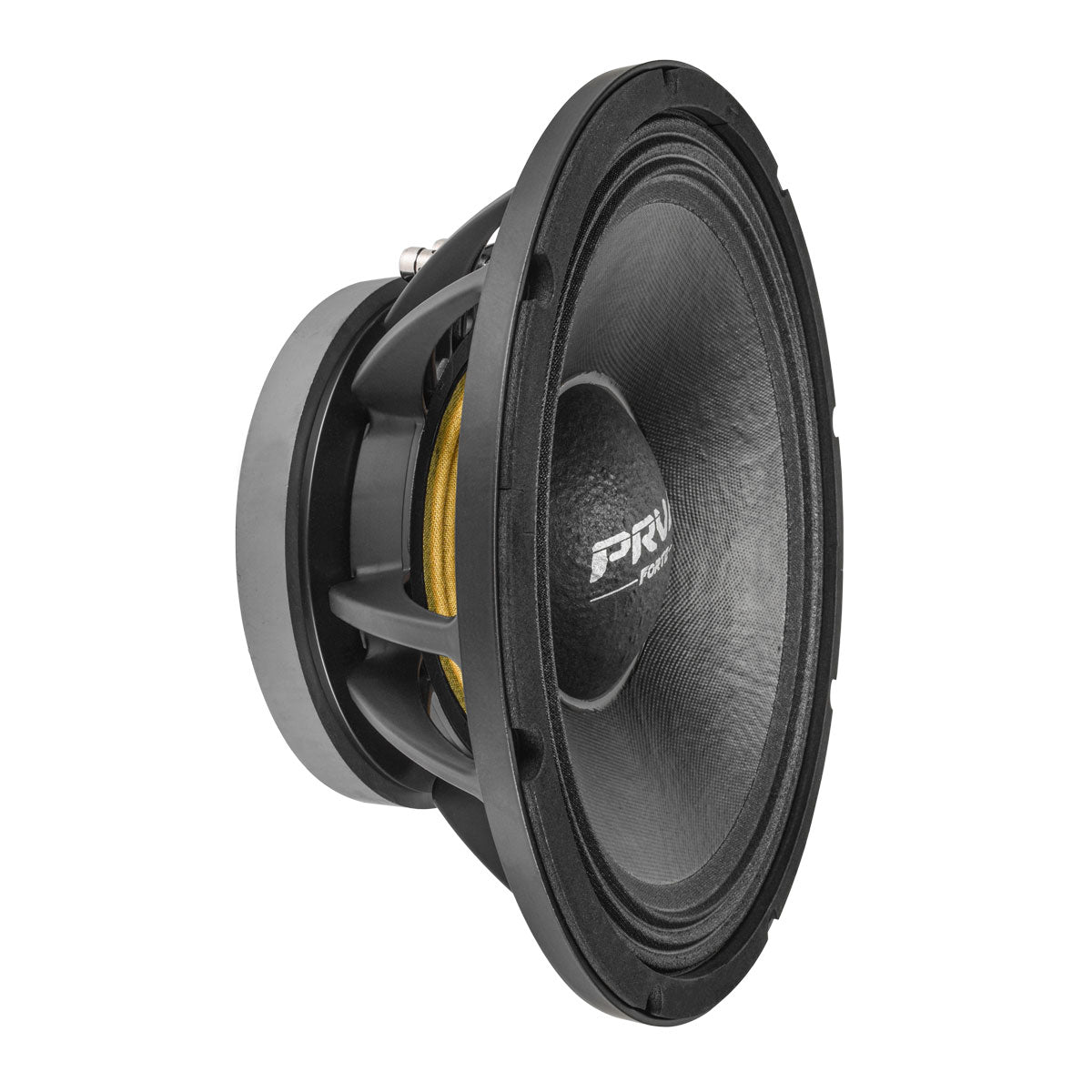

A rigid cast aluminum frame with narrow spokes to minimize reflections back into the cone. In addition, the frame includes force cooling system openings which allows airflow to cool the voice coil.
To drive the voice coil, a large ferrite magnet with a very precise machined top and bottom plate has been used. The additional dual forced vent in the back plate of the coil allows this driver to handle up to 1000 watts RMS without issue.

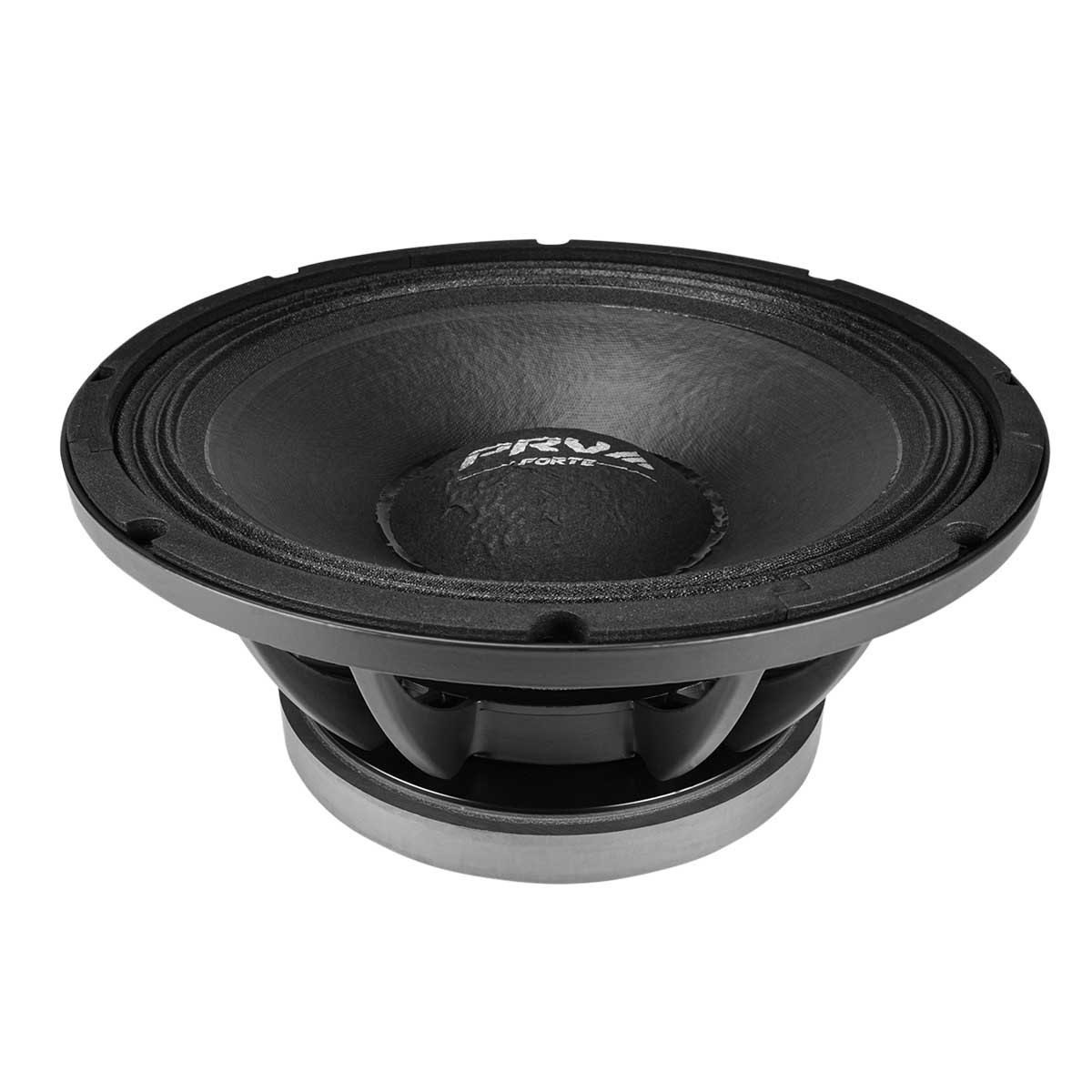

Features a special high strength pulp composition paper cone designed to achieve the best possible linearity within the middle frequency range, which, together with a protective cone treatment dedicated to enhancing the dampening properties of the moving assembly, considerably improves its smooth frequency response.
The voice coil is wound on a 3? glass fiber with aluminum wire, keeping weight to a minimum for an incredibly quick transient response. Engineered with 19 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.
GENERAL SPECIFICATIONS

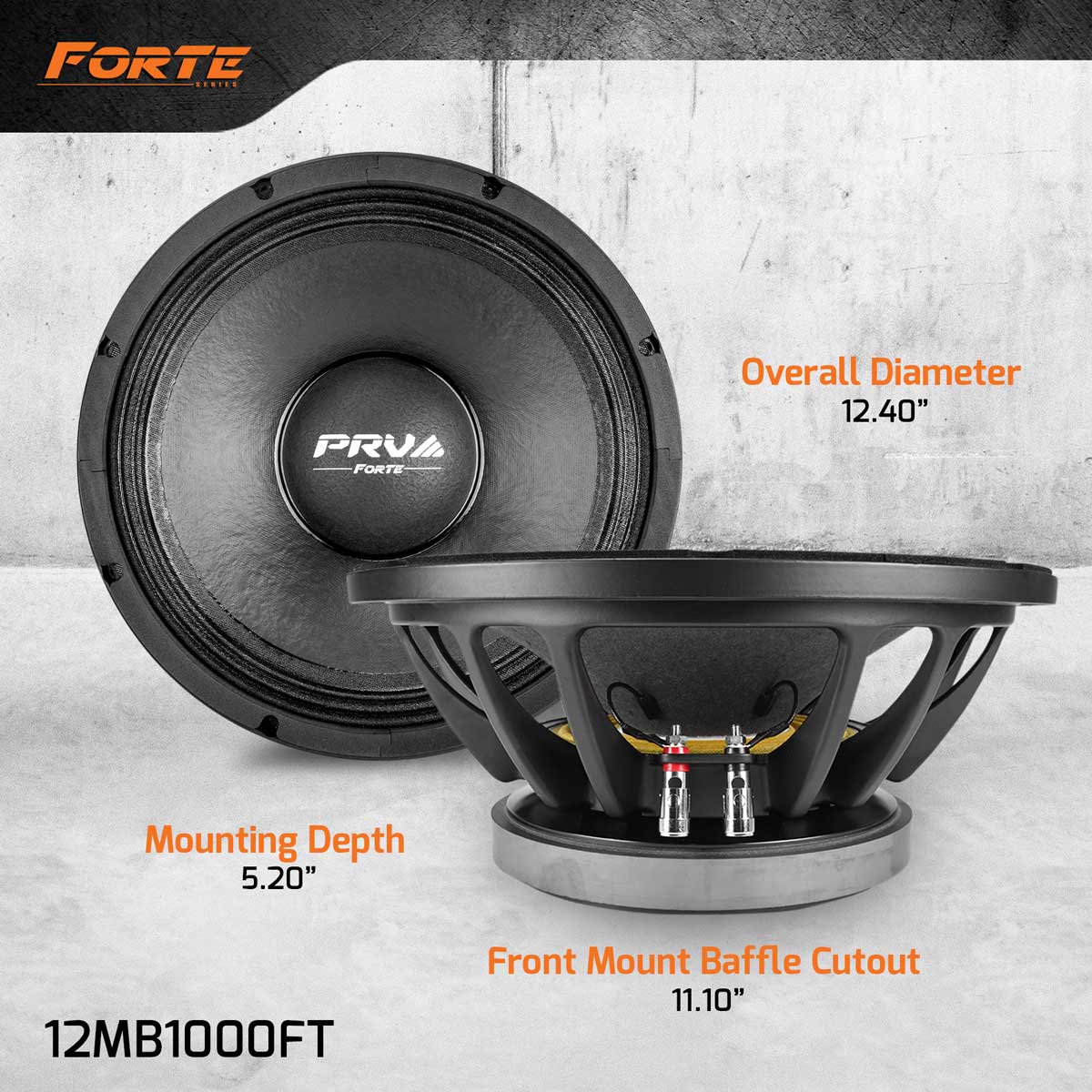

| Nominal Diameter | 12? (310 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 500 Watts |
| Continuous Program Power (RMS)** | 1000 Watts |
| Max Peak Power*** | 2000 Watts |
| Sensitivity 2.83V at 1m | 97.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
110 Hz 12db Per Octave Crossover |
| Frequency Response | 70 3,200 Hz |
| Voice Coil Diameter | 3? (76 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Winding Depth | 19.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10.5 mm |
| Frame Material | Die Cast Aluminum |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with...
