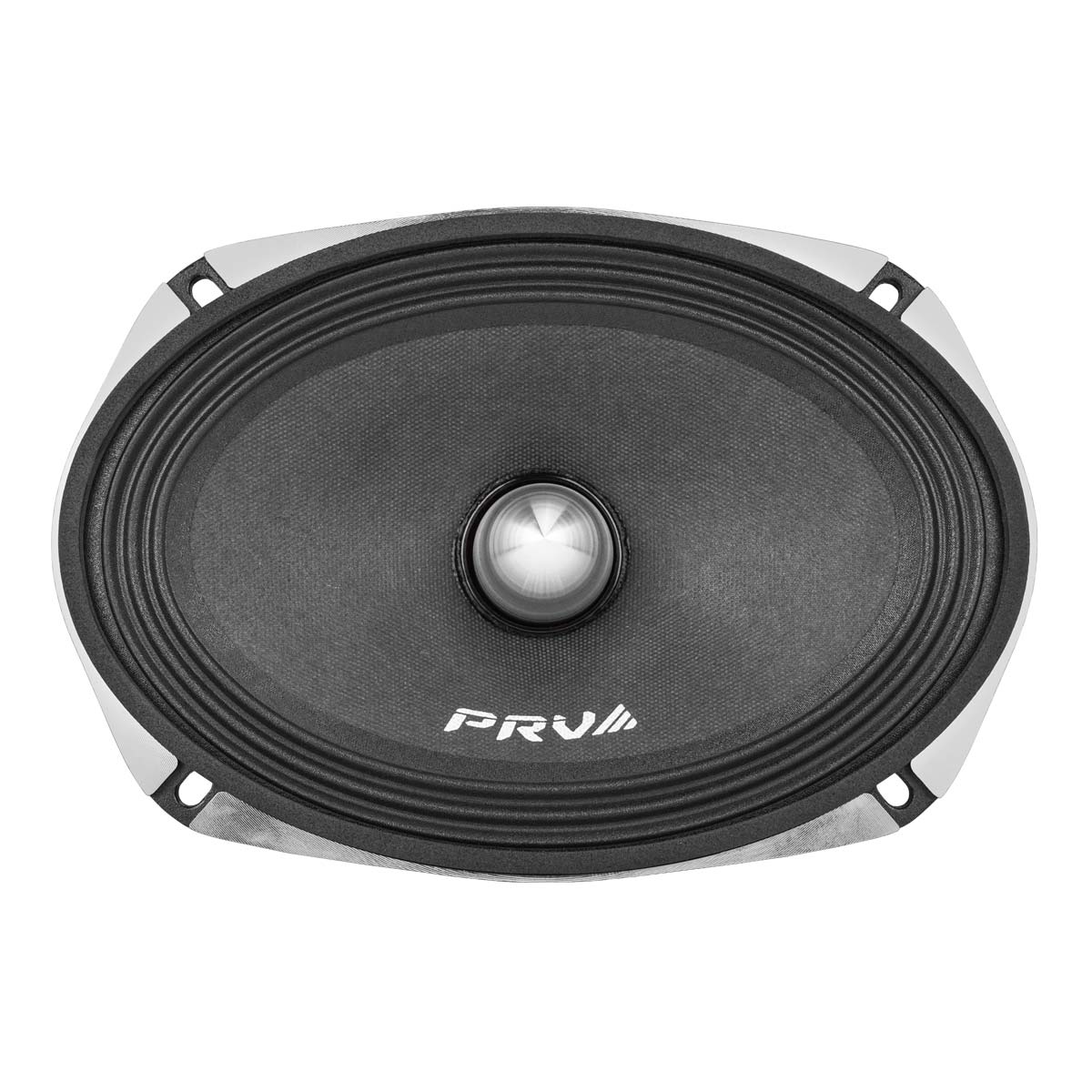

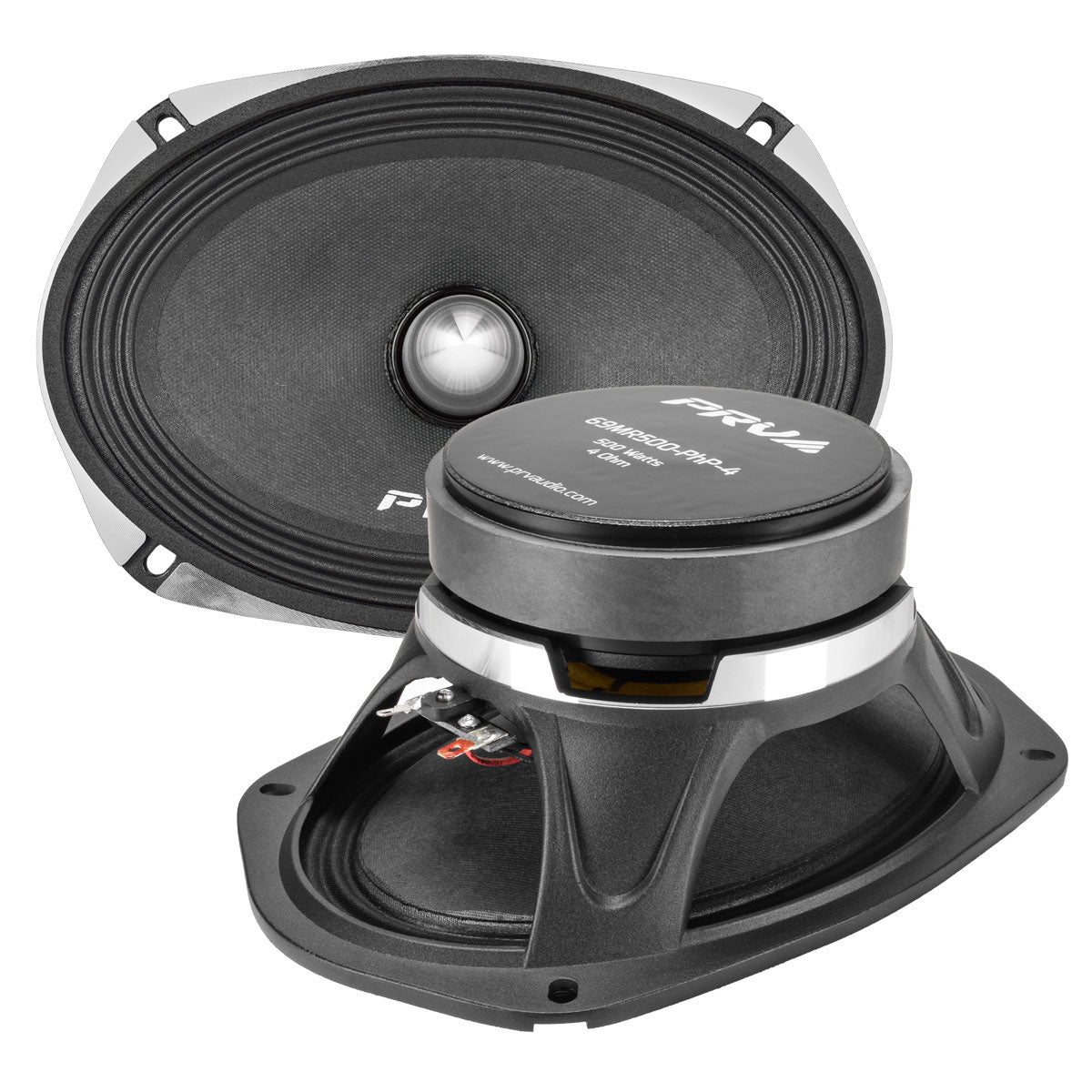

PRV Audio 69MR500-PhP-4 High Spl Midrange Loudspeaker
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
PRV Audios 69MR500-PhP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz. It is a great option for three way system requiring additional midrange support.

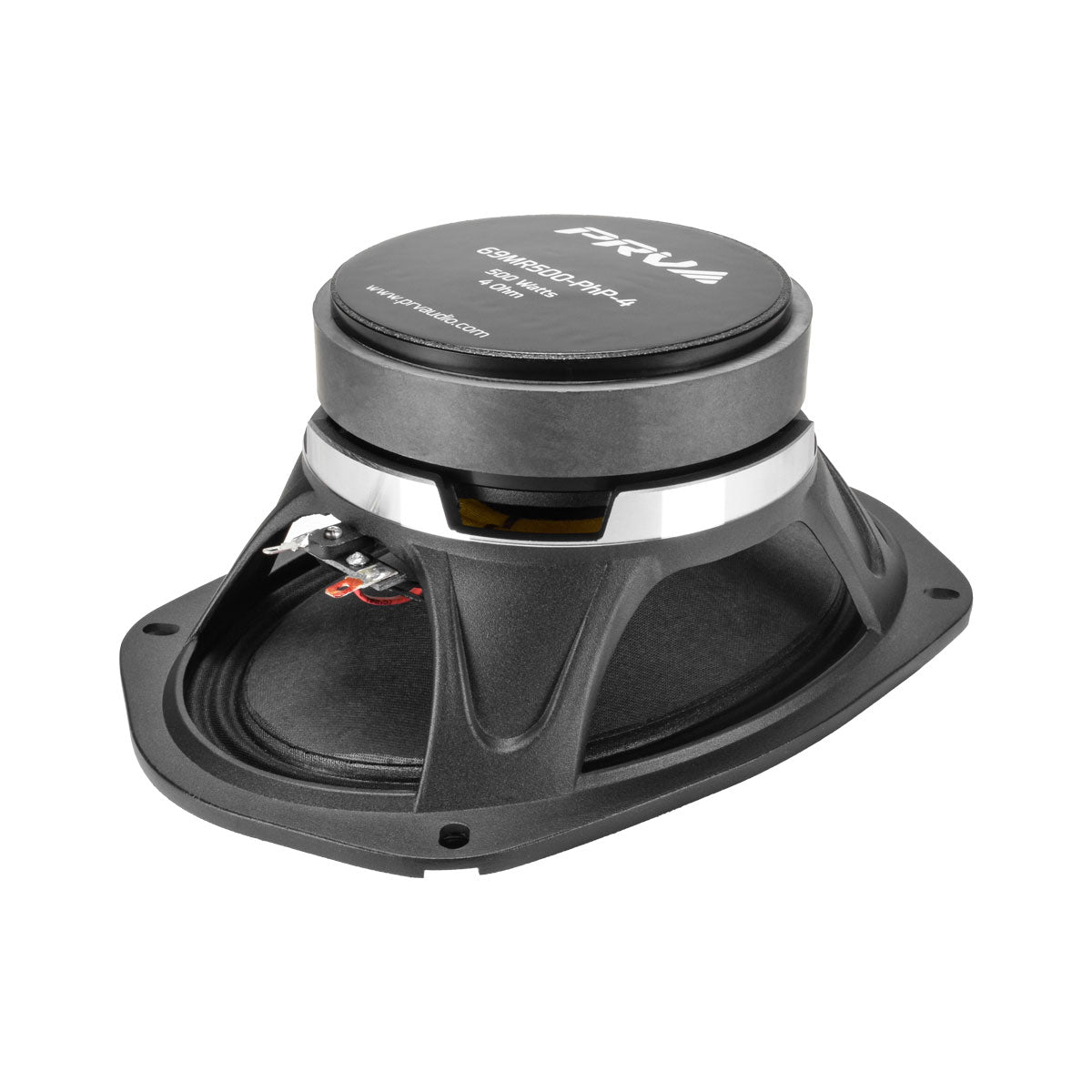

It includes a 1 kHz high-pass filter to ensure the best possible fidelity while protecting the driver in high power car audio installations. A high-power ceramic magnet is attached to a sturdy, reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment, while the phase plug provides incredibly smooth, high frequency response.

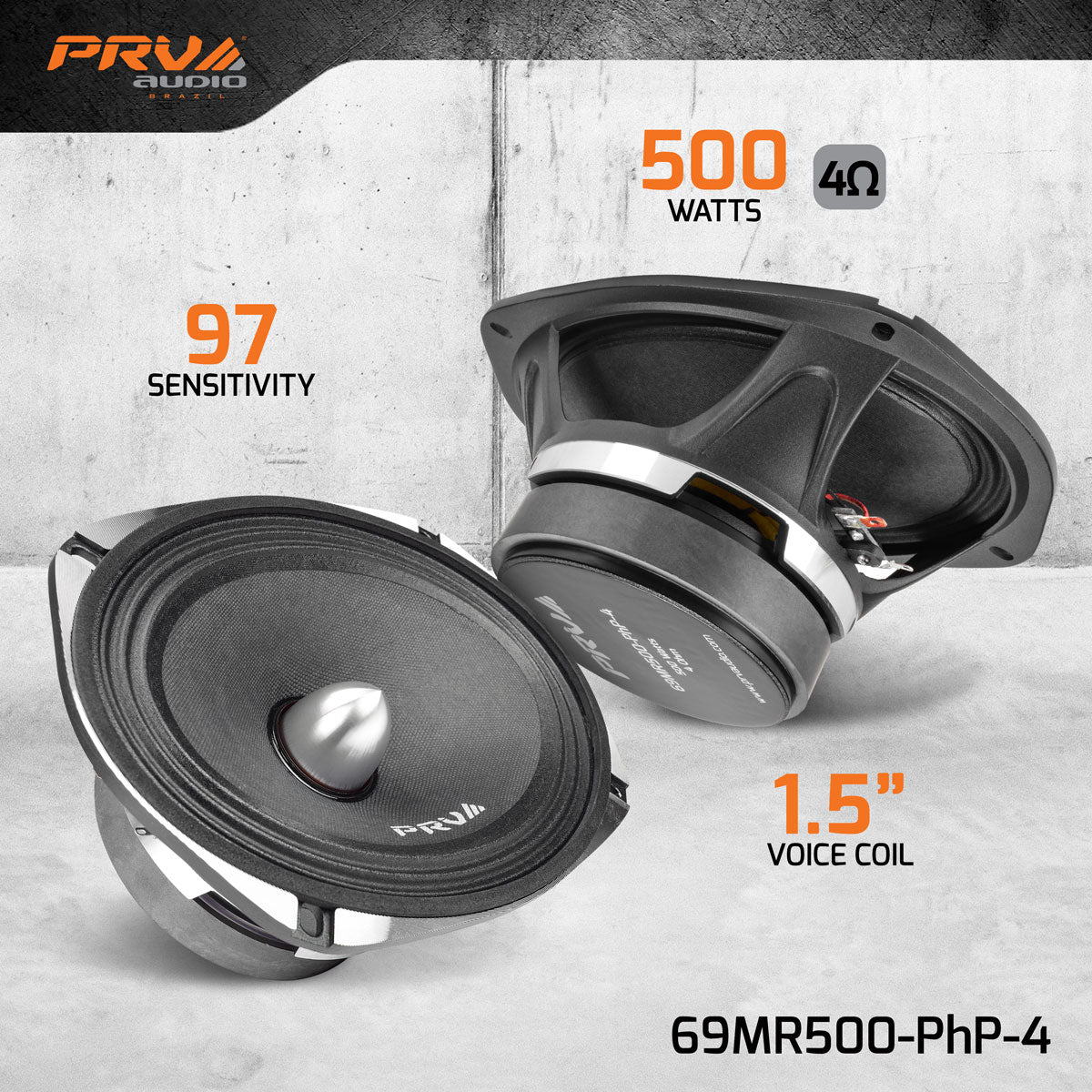

Highlights
- Nominal Impedance: 4 Ohms
- Rated AES Power Handling (RMS): 250 Watts
- Program Power: 500 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 1.5?
GENERAL SPECIFICATIONS
| Nominal Diameter | 6 x 9? (152 x 228 mm) |
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 250 Watts |
| Program Power | 500 Watts |
| Sensitivity 2.00V at 1m | 97 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
500 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 500 12,000 Hz |
| Voice Coil Diameter | 1.5? (38 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 8.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.5 mm |
| Frame Material | Die cast aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 15.16 l |
| Excursion (mathematical)*** | Xmax | 2.87 mm |
| Free Air Resonance | Fs | 91.74 Hz |
| Mechanical Factor | Qms | 14.20 |
| Electrical Factor | Qes | 0.68 |
| Total Factor | Qts | 0.65 |
| Cone Area | Sd | 231 cm |
| Mechanical Mass | Mms | 14.76 g |
| Bl Factor | Bl | 6.8 Tm |
| Dc Resistance | Re | 3.7 Ohms |
| Inductance | Le | 0.14 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 12.78 g |
| Mechanical Compliance | Cms | 0.204 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

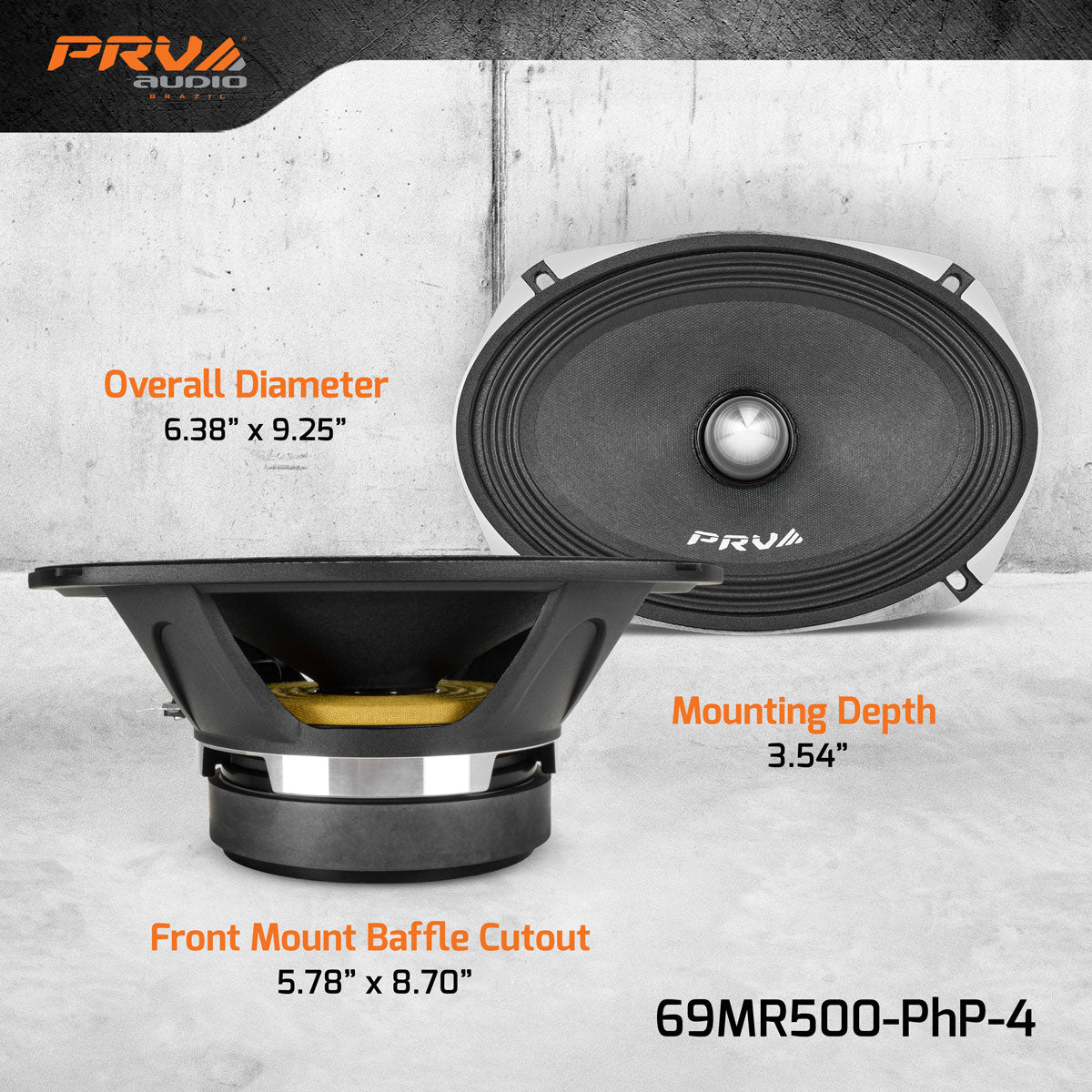

EXTRA INFO
| Overall Diameter | 6.38 x 9.25 (162 x 235 mm) |
| Front Mount Baffle Cutout | 5.78 x 8.70 (147 x 221 mm) |
| Mounting Depth | 3.54 (90 m... |
