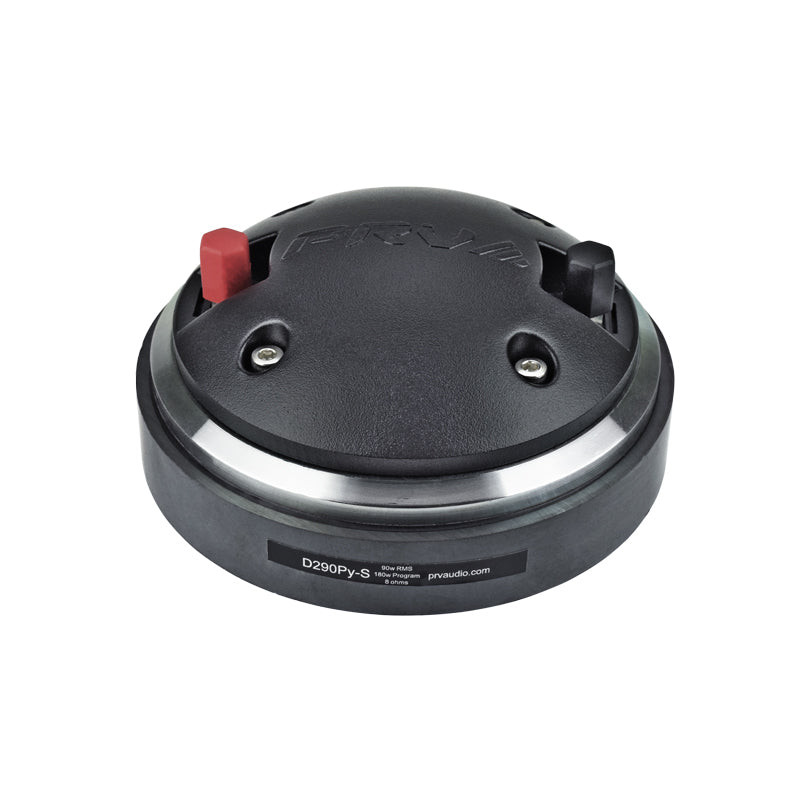

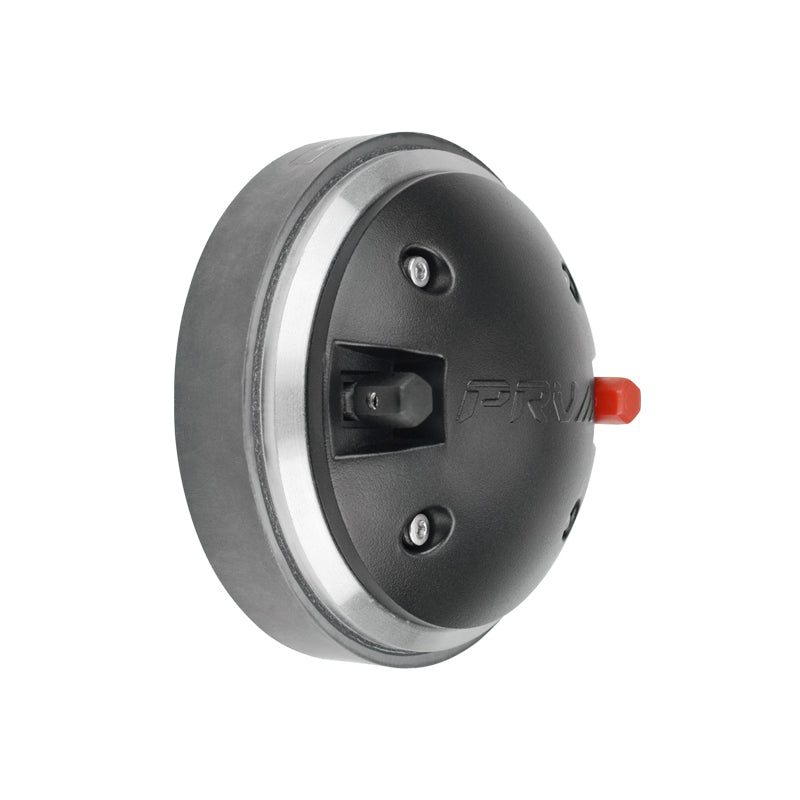

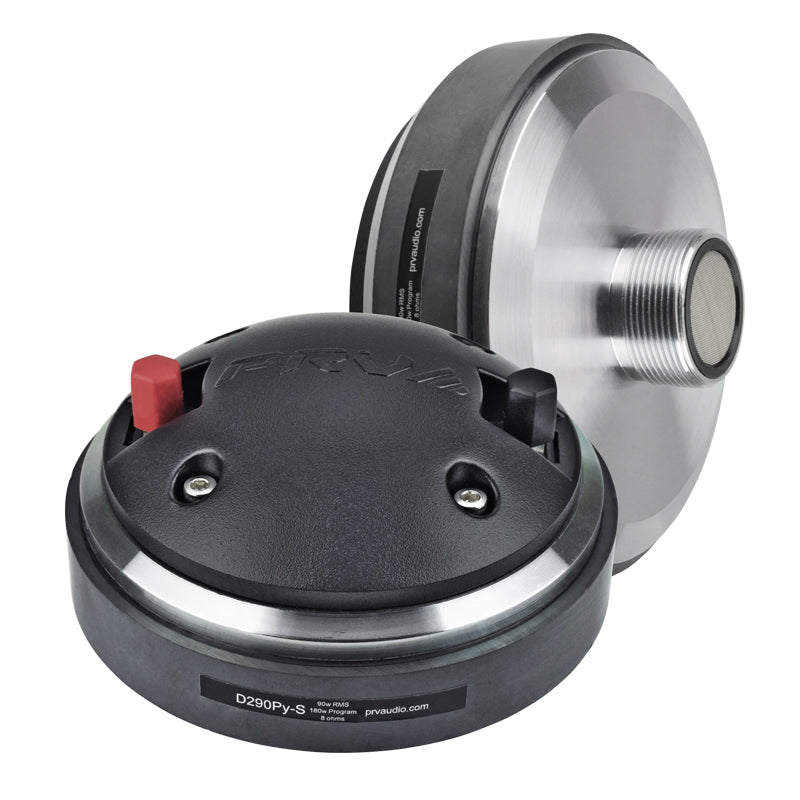

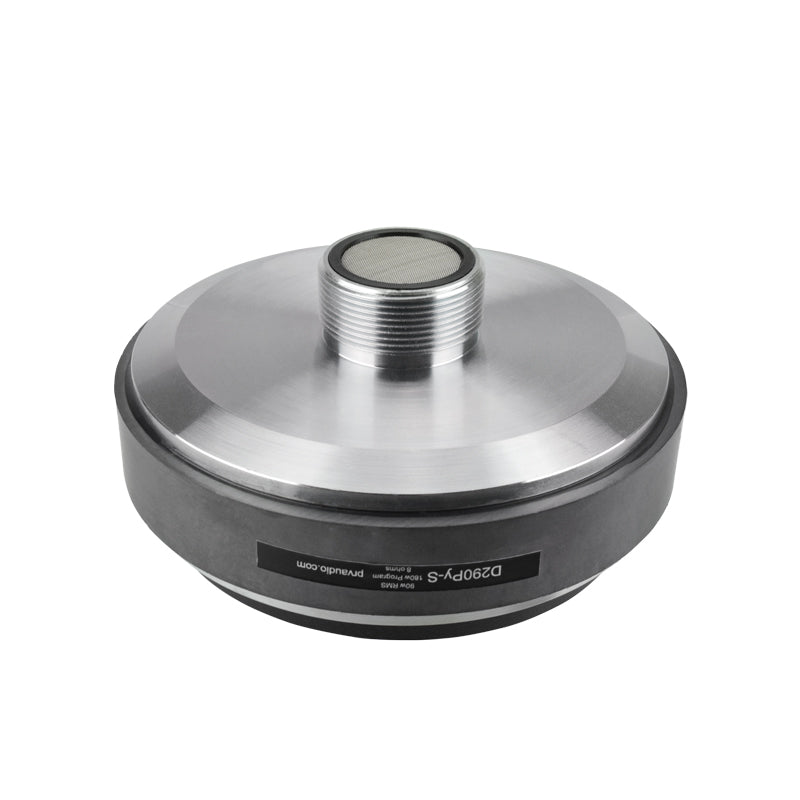

PRV Audio D290Py-S 1" Exit Pro Audio Polyimide Compression Driver
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
The PRV Audio D290Py-S 1? Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.
Highlights
- Throat Diameter: 1?
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 90 Watts
- Program Power: 180 Watts
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction. The D290Py-S is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required.
The D290Py-S is assembled with a standard 1 3/8 screw for easy replacement with current 1 horns.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 90 Watts |
| Program Power | 180 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 650 19,000 Hz |
| Voice Coil Diameter | 1.75(44.4 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 1.85 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 4.72 (120 mm) |
| Overall Depth | 3.07 (65 mm) |
| Mounting Thread | 1 3/8 18 TPI |
| Net Weight | 4.96 lbs (2.25 kg) |
| Shipping Weight | 5.15 lbs (2.33 kg) |
| Carton Dimensions W x L x H | 5.51 x 5.31 x 3.35 (140 x 135 x 85 mm) |
