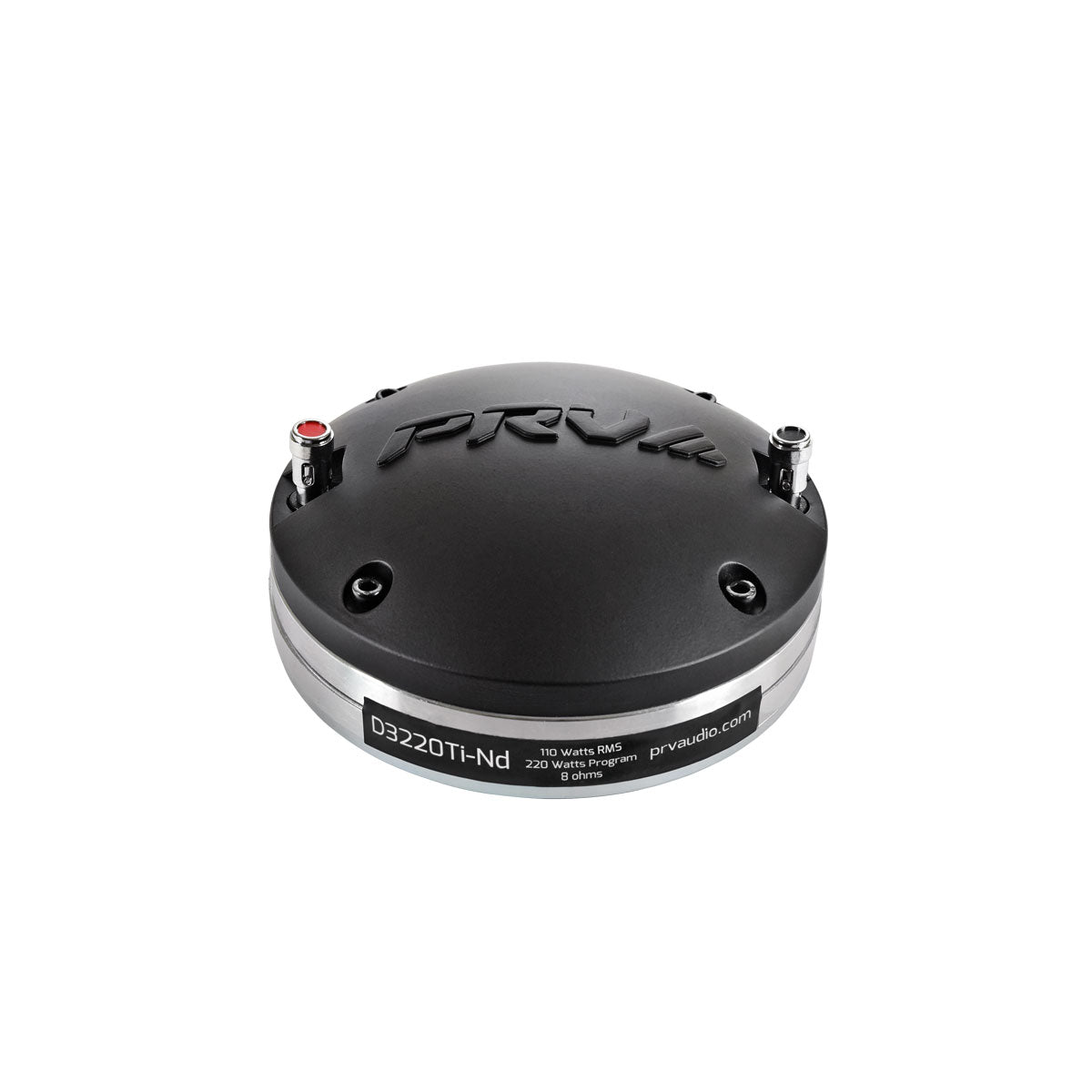

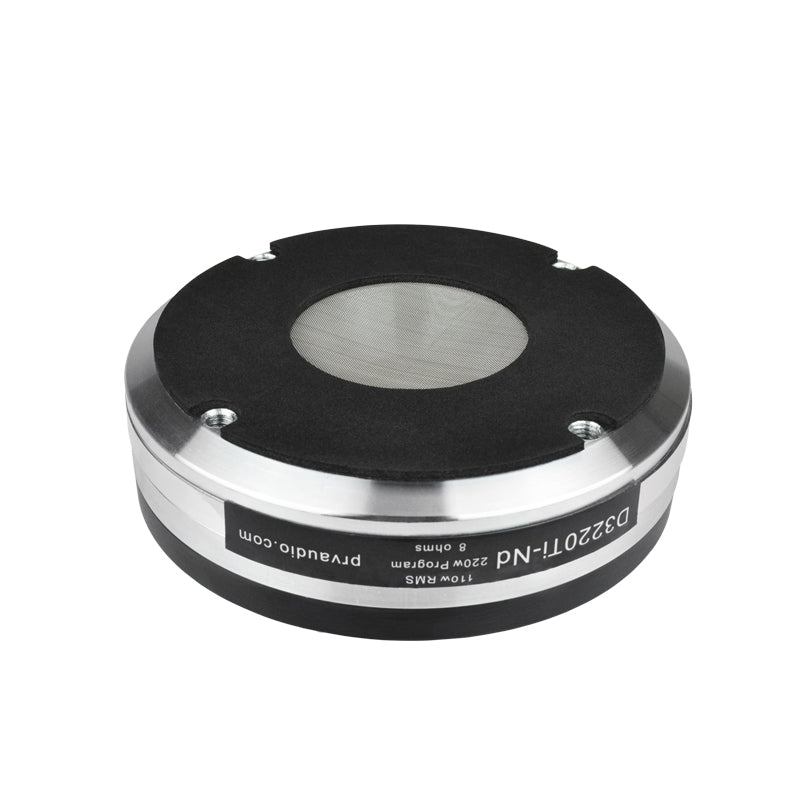

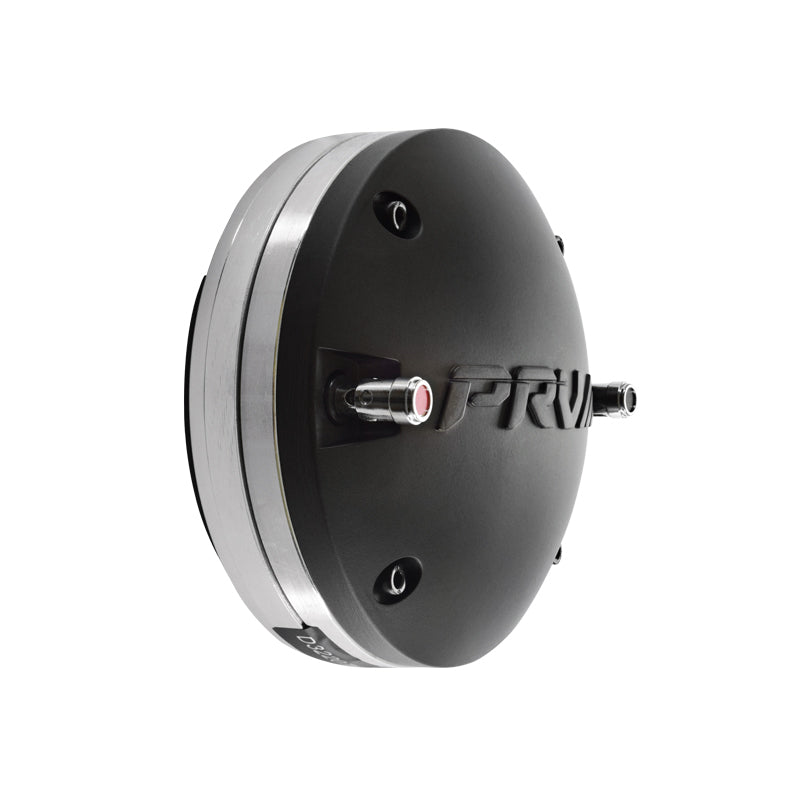

PRV Audio D3220Ti-Nd 2" Exit High Frequency Compression Driver
Subcribe to back in stock notification
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2? exit supported by a 3? voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs.
The D3220Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.
Highlights
- Throat Diameter: 2?
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2 (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 2.83V at 1m | 110 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,600 19,000 Hz |
| Voice Coil Diameter | 3(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.80 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 4.88 (124 mm) |
| Overall Depth | 2.21 (56 mm) |
| Mounting Bolt Circle | M6 x 4 4 (101.6 mm) |
| Net Weight | 5.00 lbs (2.27 kg) |
| Shipping Weight | 5.27 lbs (2.39 kg) |
| Carton Dimensions W x L x H | 5.71 x 5.71 x 3.35 (145 x 145 x 85 mm) |
