PRV Audio WGP14-50PR BLACK 2" Exit Waveguide
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features

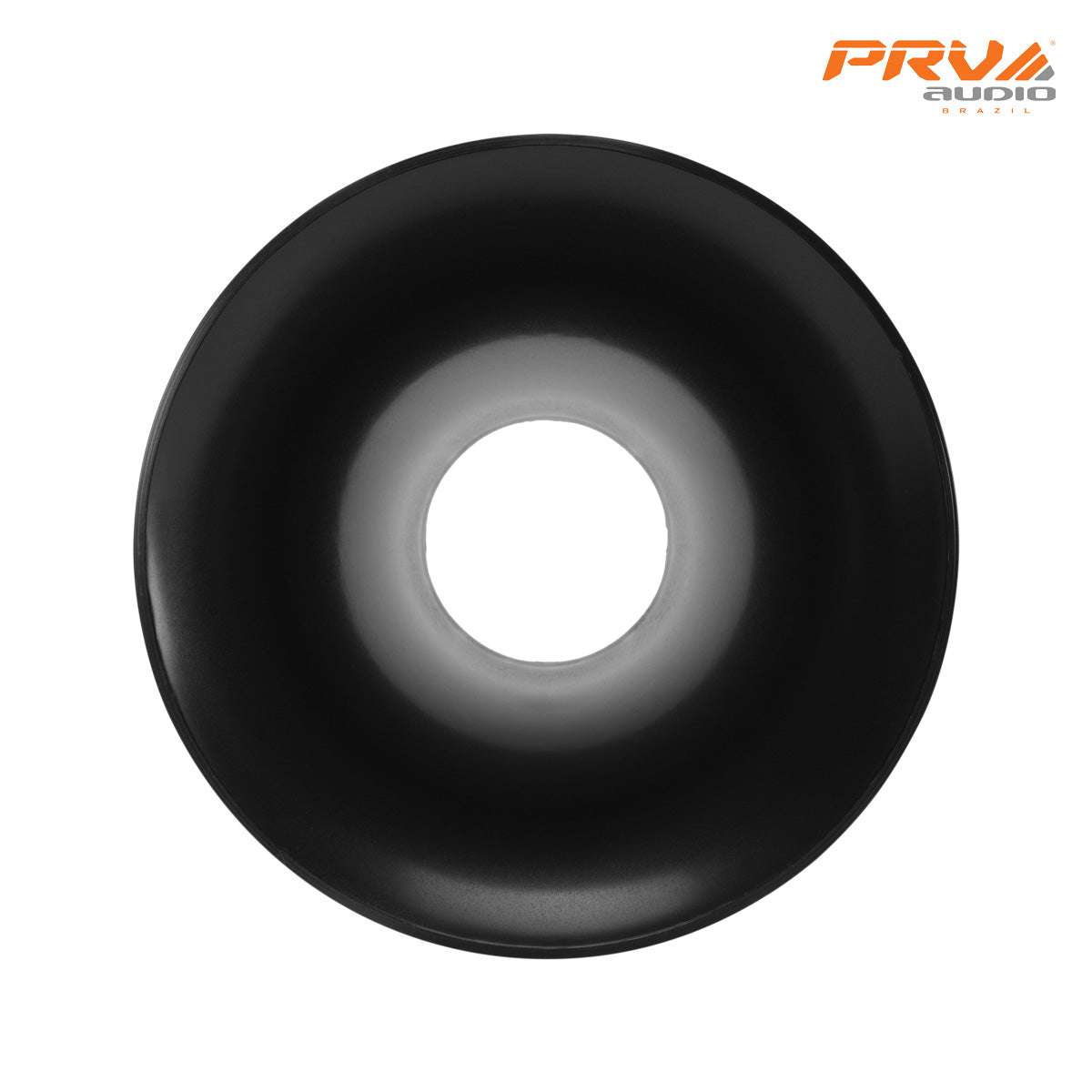

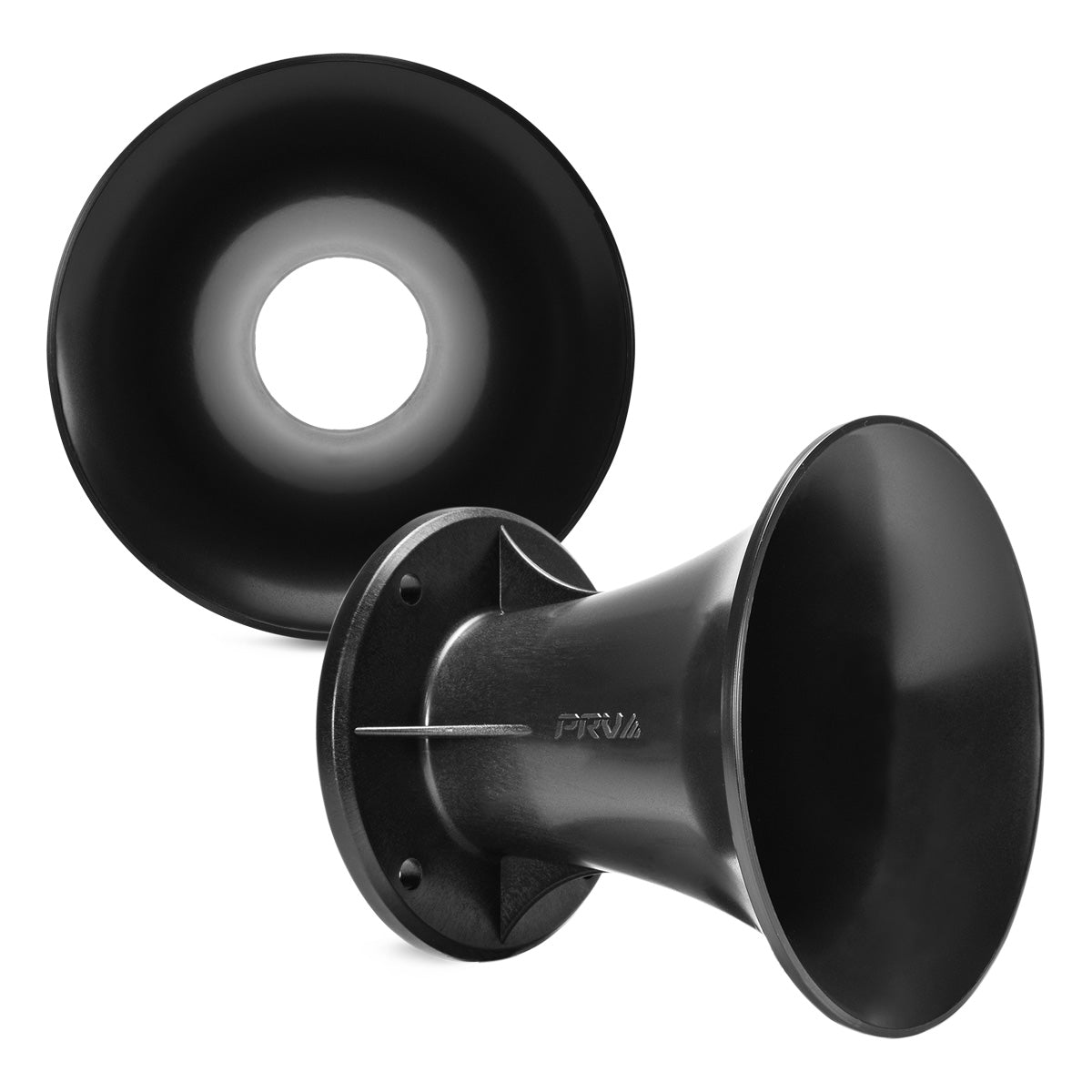

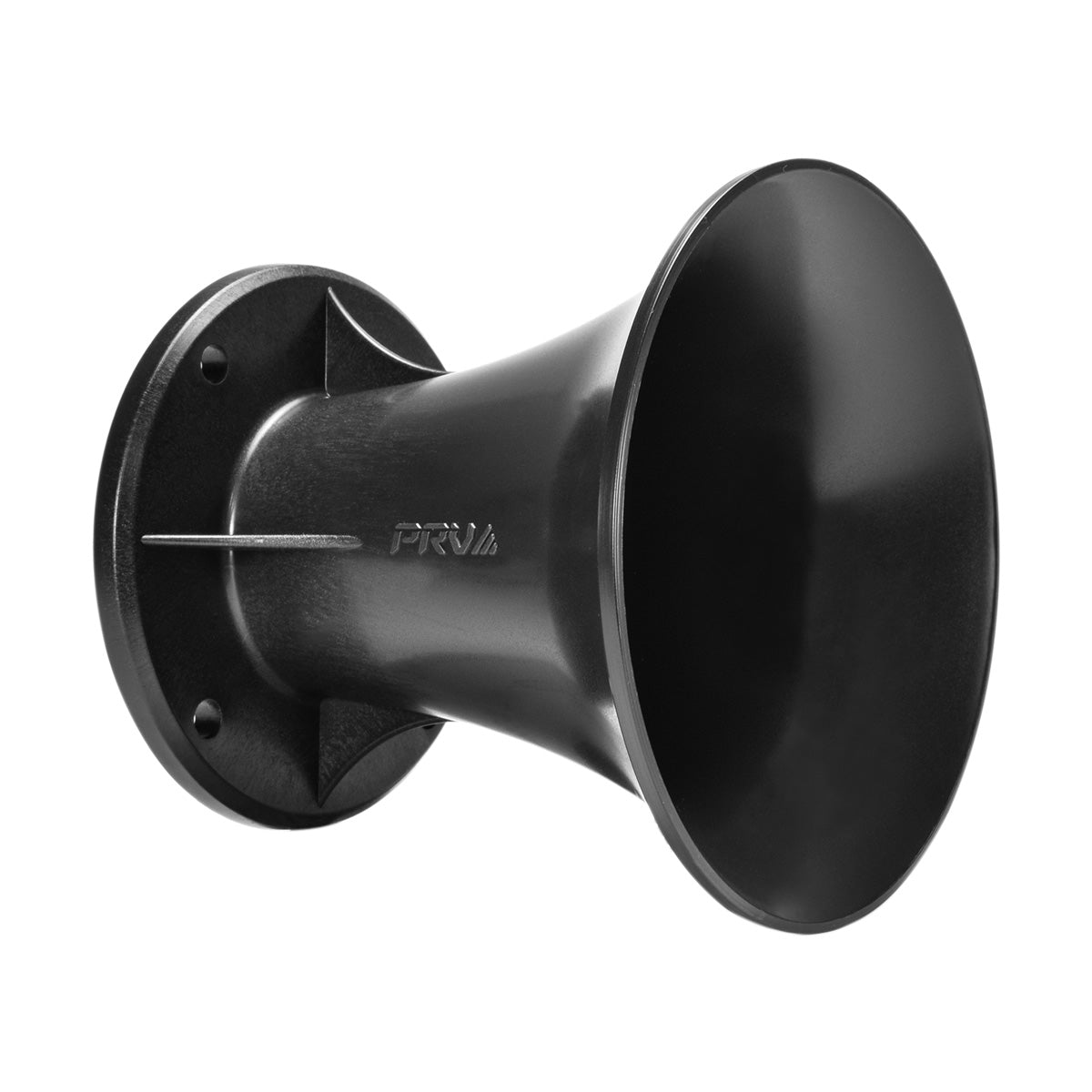

The flangeless design of PRV Audios WGP14-50PR black exponential horn gives your high output midrange and tweeter installation a clean look. No mounting hole, made for custom fiberglass work.
With a 2? throat and 45 x 45 dispersion, this is perfect for applications where a controlled coverage pattern is needed and space is at a premium.
Highlights
- 2 Throat Diameter
- Light weight
- No Mounting Holes
- Bolt-on
- 45 x 45 Nominal Coverage
GENERAL SPECIFICATIONS
| Throat Diameter | 2 (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31? 8 mm |
| Bolt Circle | 4? 101.6 mm |
| Nominal Coverage | |
| Horizontal | 45 |
| Vertical | 45 |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Black Painting |
| Dimensions | |
| Height | 5.53? (140.5 mm) |
| Width | 5.53? (140.5 mm) |
| Depth | 5.0? (127.0 mm) |
| Mounting Depth | 5.0? (127.0 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.53? (140.5 mm) |
| Net weight | 0.40 lb (0.18 kg) |
