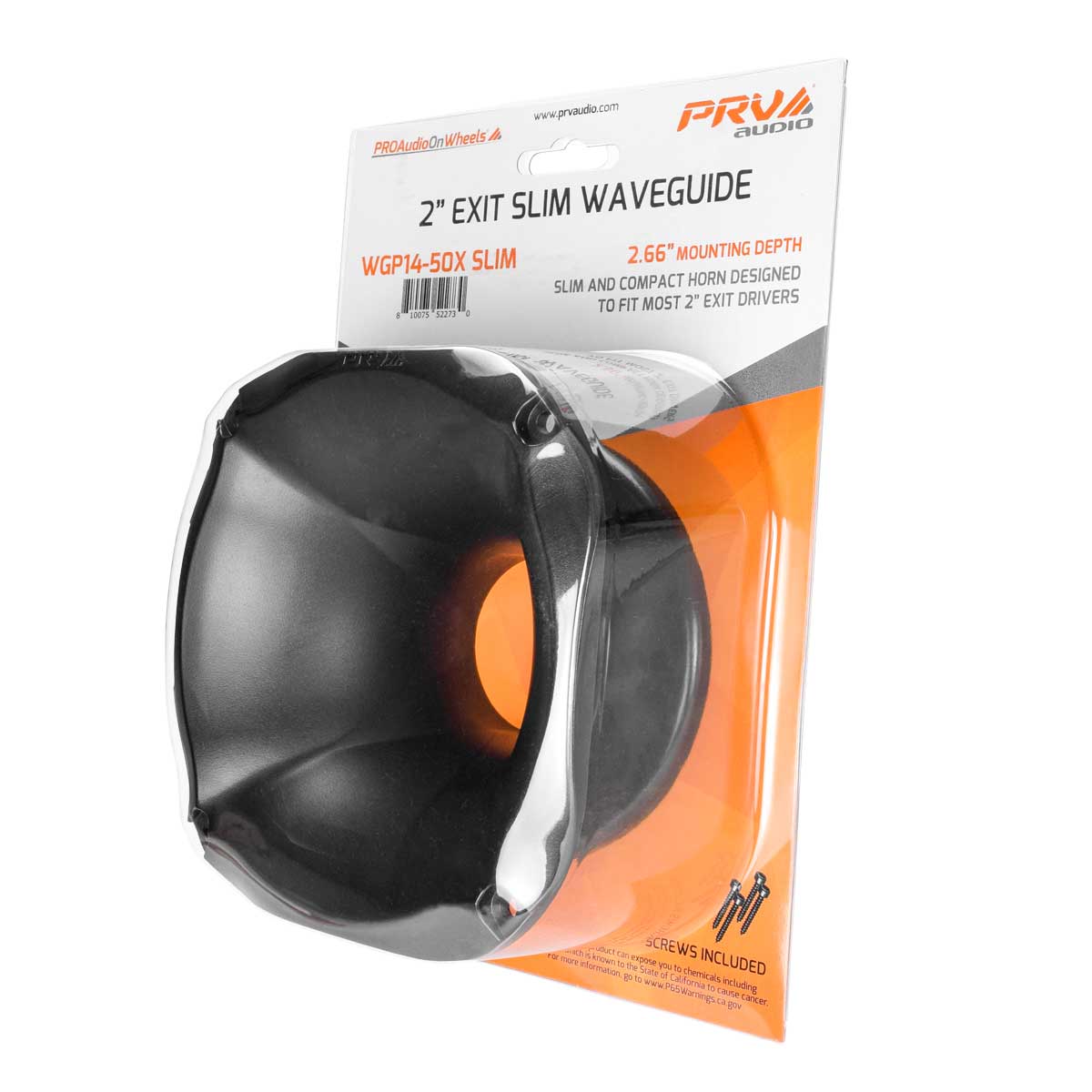

PRV Audio WGP14-50X SLIM 2" Bolt-On Slim Waveguide
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features

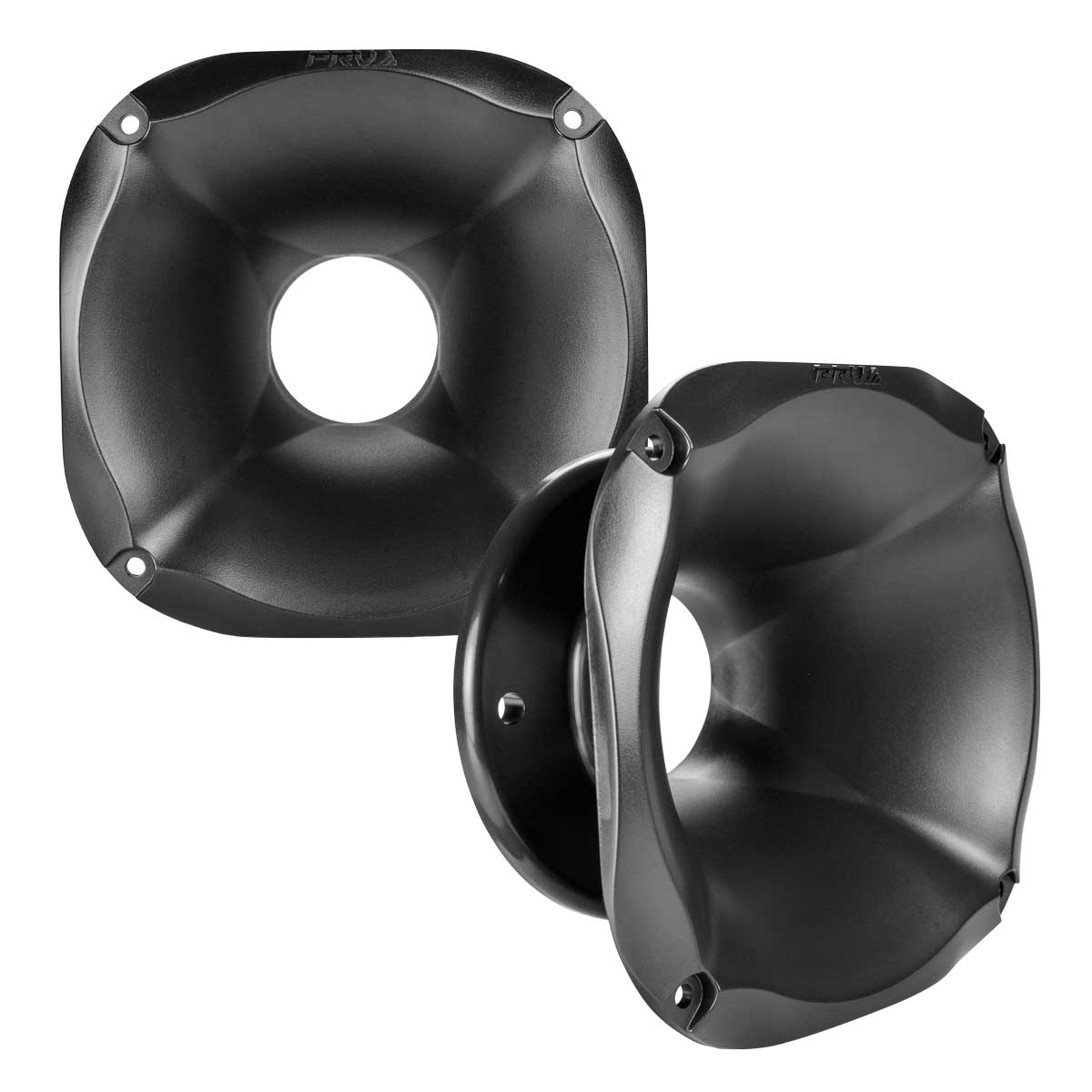

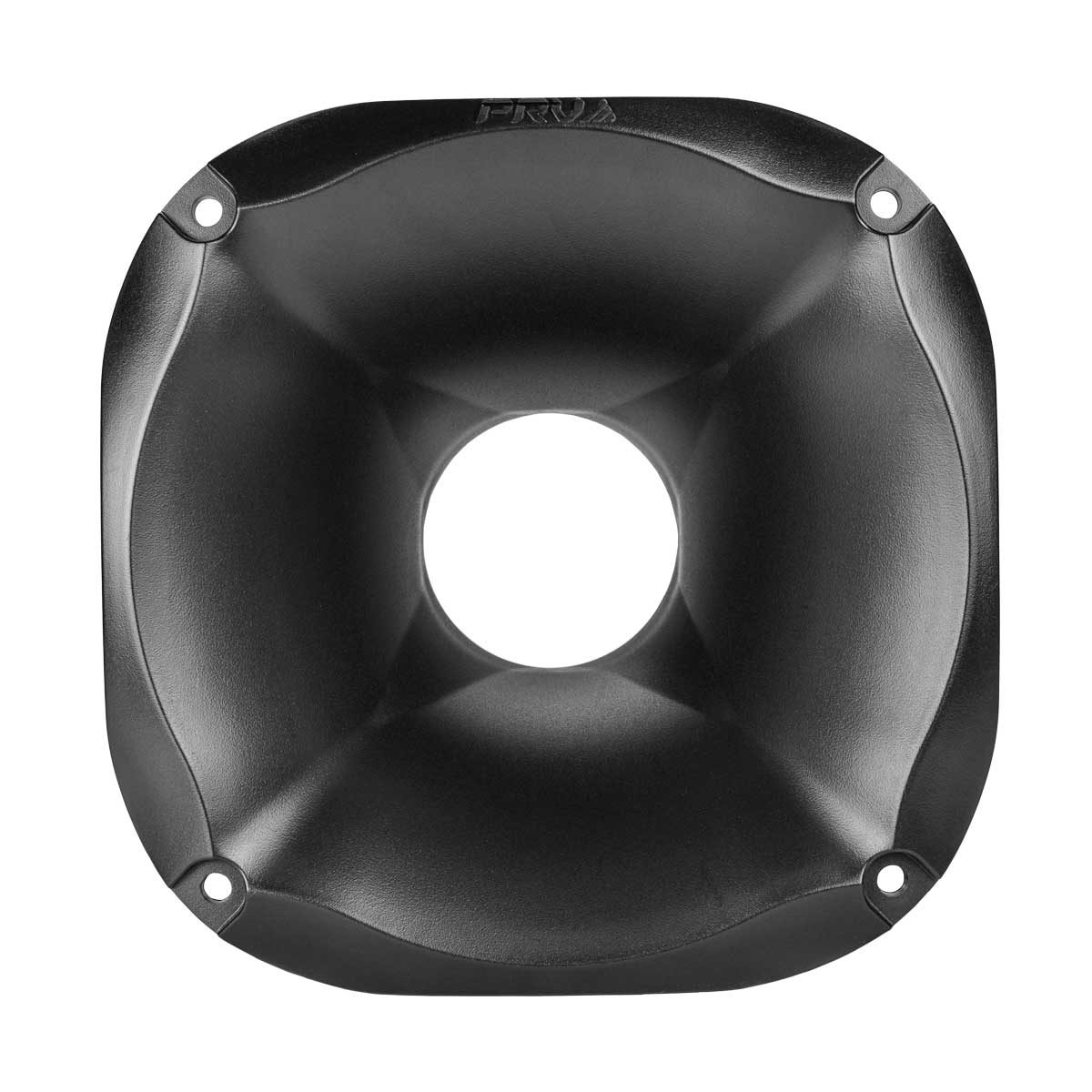

2? Bolt-on slim waveguide WGP14-50X SLIM from PRV Audio is an exponential horn to consider for your 2? Exit Compression Driver! At 2.66? of mounting depth, this horn makes installation easy in tight spaces.
A standard 4 bolts mount is compatible with most 2? compression drivers. The WGP14-50X SLIM is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1400 Hz.
WGP14-50X SLIM Slim Design Highlights
- Its slim mounting depth of 2.66?, with a standard 6.14? x 6.14? faceplate, takes up very little mounting depth, allowing you to mount a compression driver with very little mounting depth.
- Designed to deliver big performance in very limited space, when you add any PRV 2? Exit Driver to it.
- Its 60 x 60 dispersion pattern is ideal for short throw applications
- Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
- Recommended minimum crossover frequency of 1,400 Hz

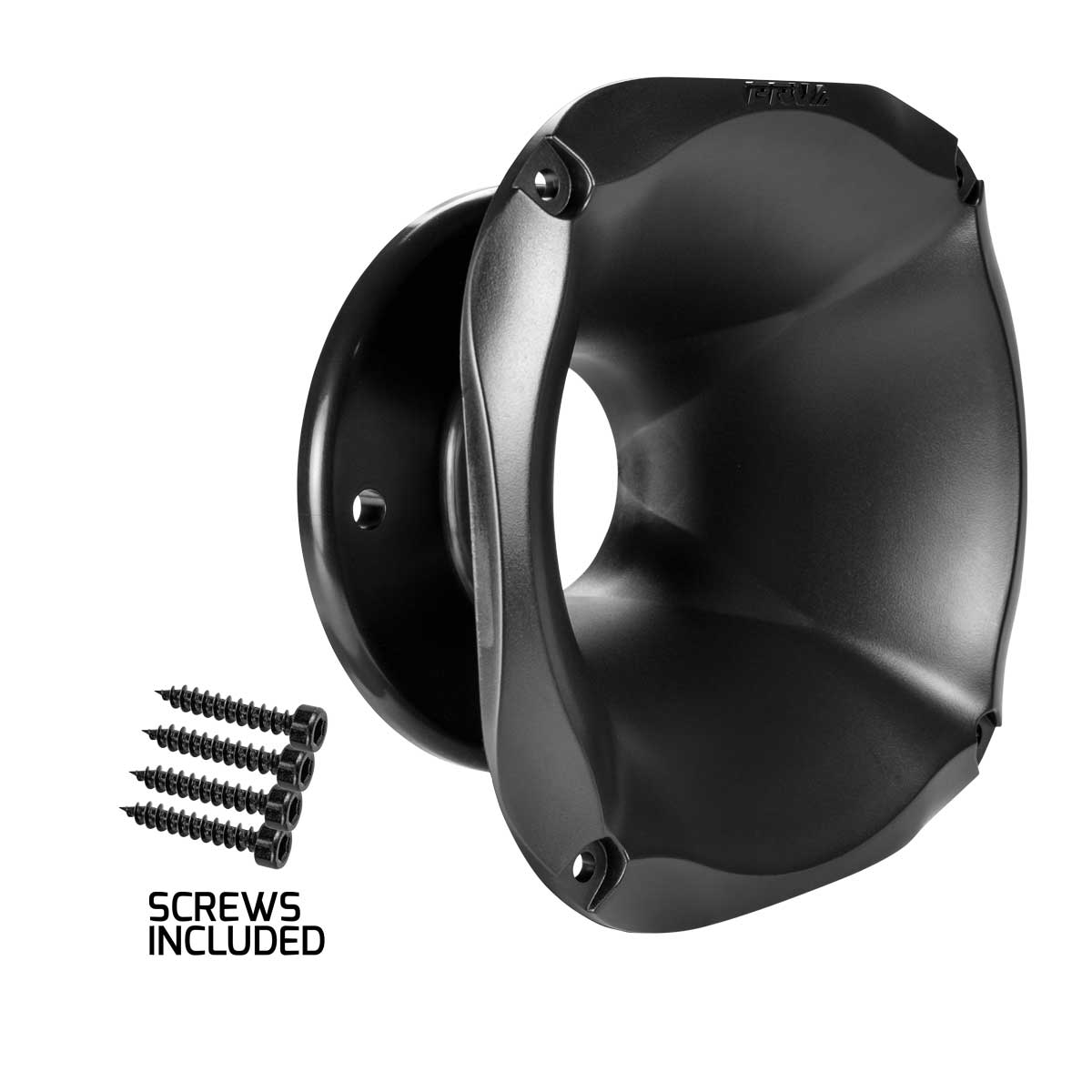

- Includes 4x screws
GENERAL SPECIFICATIONS
| Throat Diameter | 2 (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.31? 8 mm |
| Bolt Circle | 4? 102 mm |
| Nominal Coverage | |
| Horizontal | 60 |
| Vertical | 60 |
| Flare type | Hybrid |
| Material | Plastic (ABS) |
| Finish / Coating | Black |
| Dimensions | |
| Height | 6.14? (156.0 mm) |
| Width | 6.14? (156.0 mm) |
| Depth | 2.97? (75.5 mm) |
| Mounting Depth | 2.67? (67.9 mm) |
| Baffle Cutout | |
| Diameter Circle | 5.59? (142 mm) |
| Net weight | 0.42 lb (0.19 kg) |
