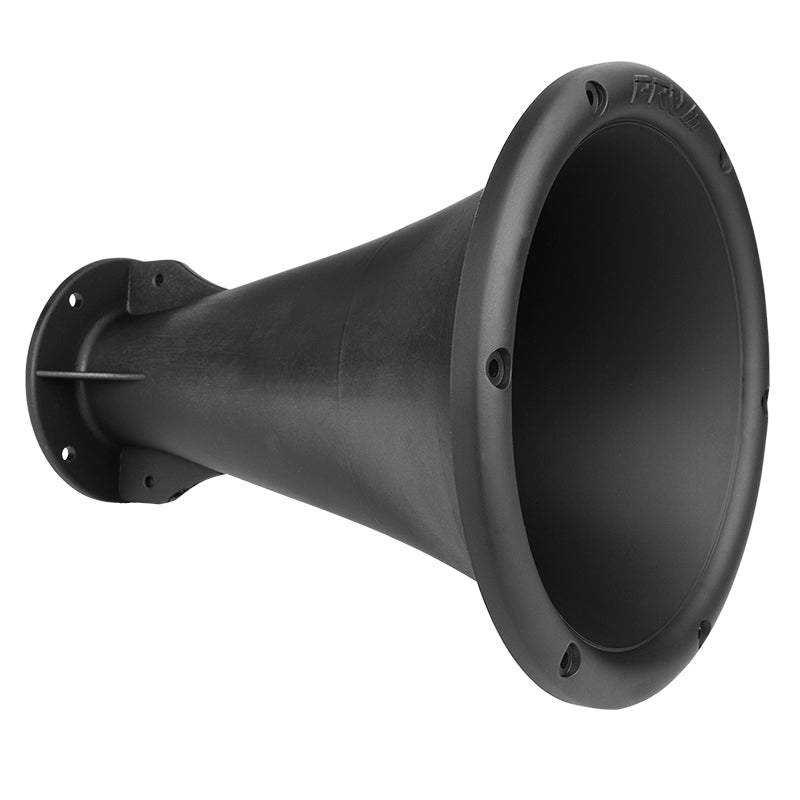

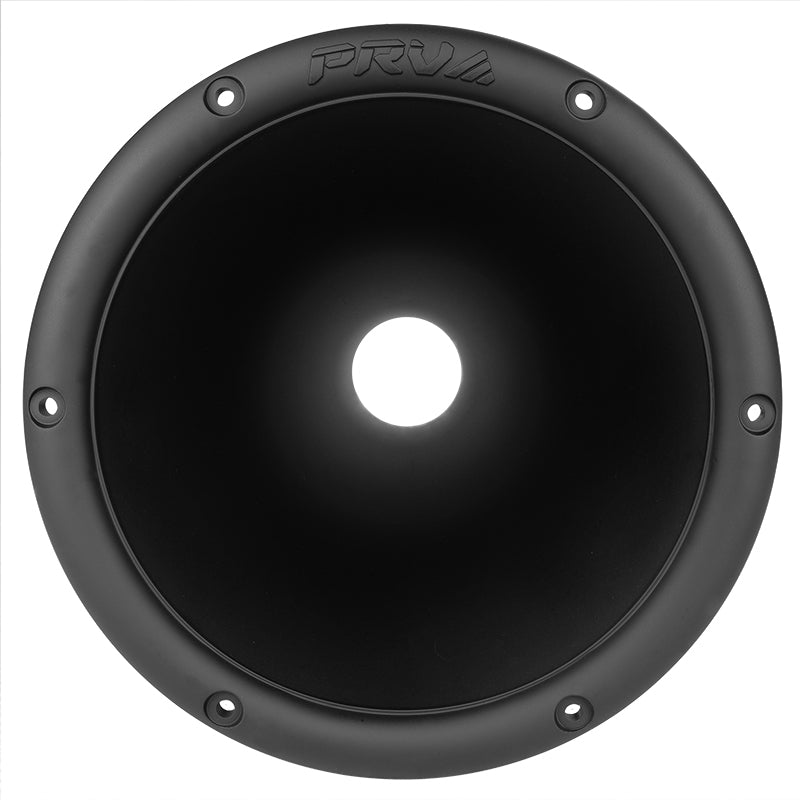

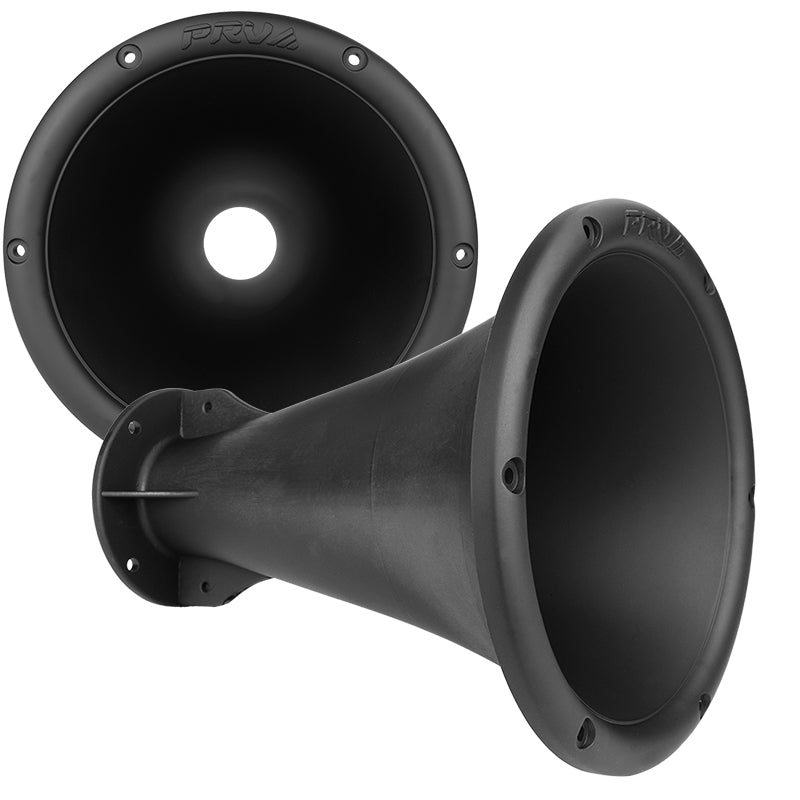

PRV Audio WGP22-50 2" Exit Waveguide
Free Shipping
Free standard shipping to Contiguous 48 US States
Free Returns
Learn More.
Features
2? Exit ABS Plastic Wave Guide Bolt-on
Highlights
- 2 Throat Diameter
- Light weight
- Bolt-on
- The 30 x 30 dispersion is suitable for direct focus output with a low 350Hz cutoff frequency
GENERAL SPECIFICATIONS
| Throat Diameter | 2 (50.8 mm) |
| Mounting Type | Bolt-on |
| Hole Dimensions | 0.33? 8.3 mm |
| Bolt Circle | 4? 101.6 mm |
| Nominal Coverage | |
| Horizontal | 30 |
| Vertical | 30 |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Black |
| Dimensions | |
| Height | 9.01? (229 mm) |
| Width | 9.01? (229 mm) |
| Depth | 10.86? (275 mm) |
| Mount Depth | 10.32? (262 mm) |
| Baffle Cutout | |
| Diameter | 7.5? (190.5 mm) |
| Net weight | 1.25lb (0.57 kg) |
