Touchsreen Cd/Dvd w/ CarPlay, Android Auto, USB, BT, for Ford F350 2005-2012

Touchscreen Cd/DVD w/ Apple CarPlay Android Auto

USB BLUETOOTH for 2005-2012 Ford F350

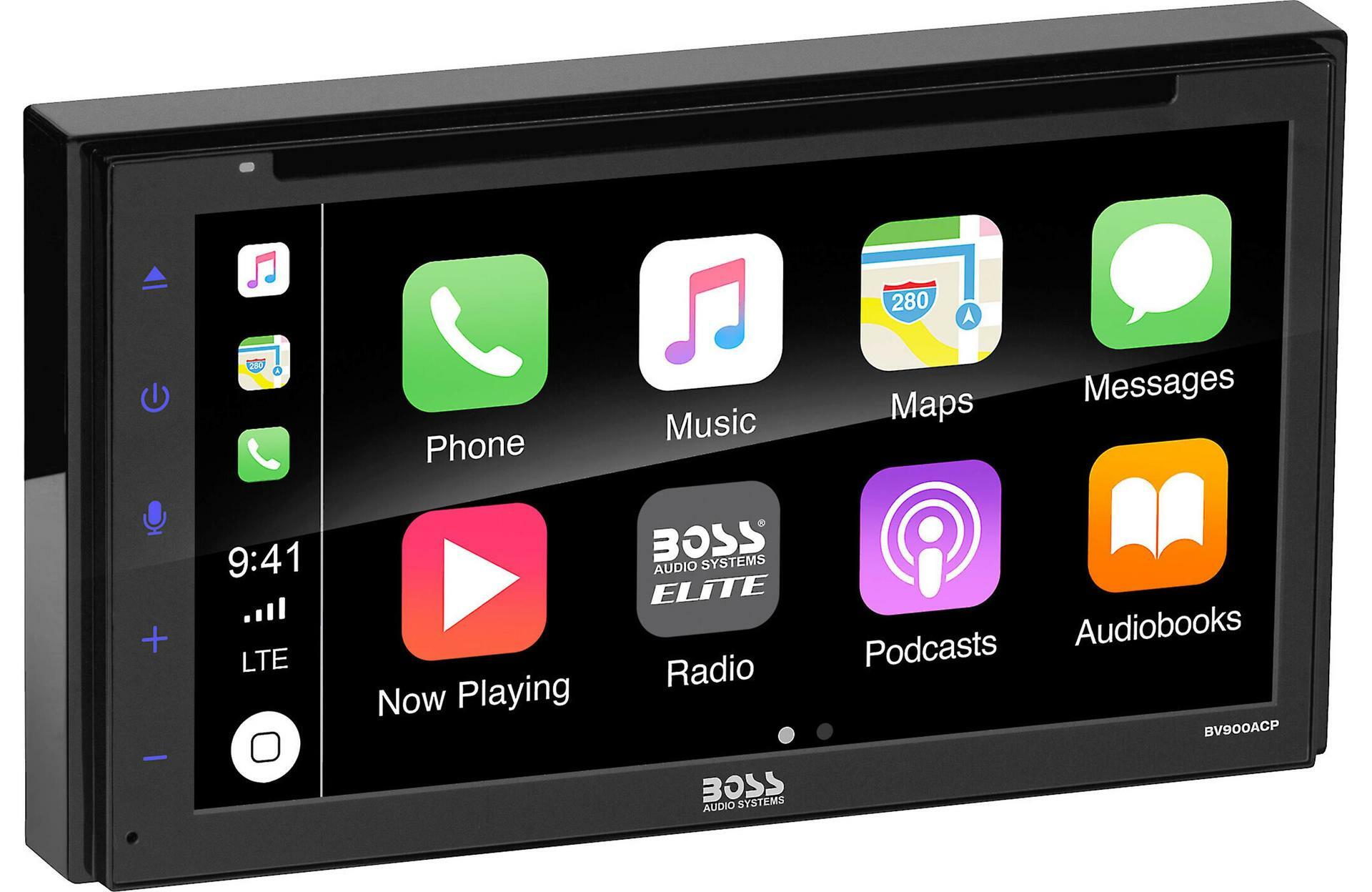

BOSS Audio BV900ACP

eceiver

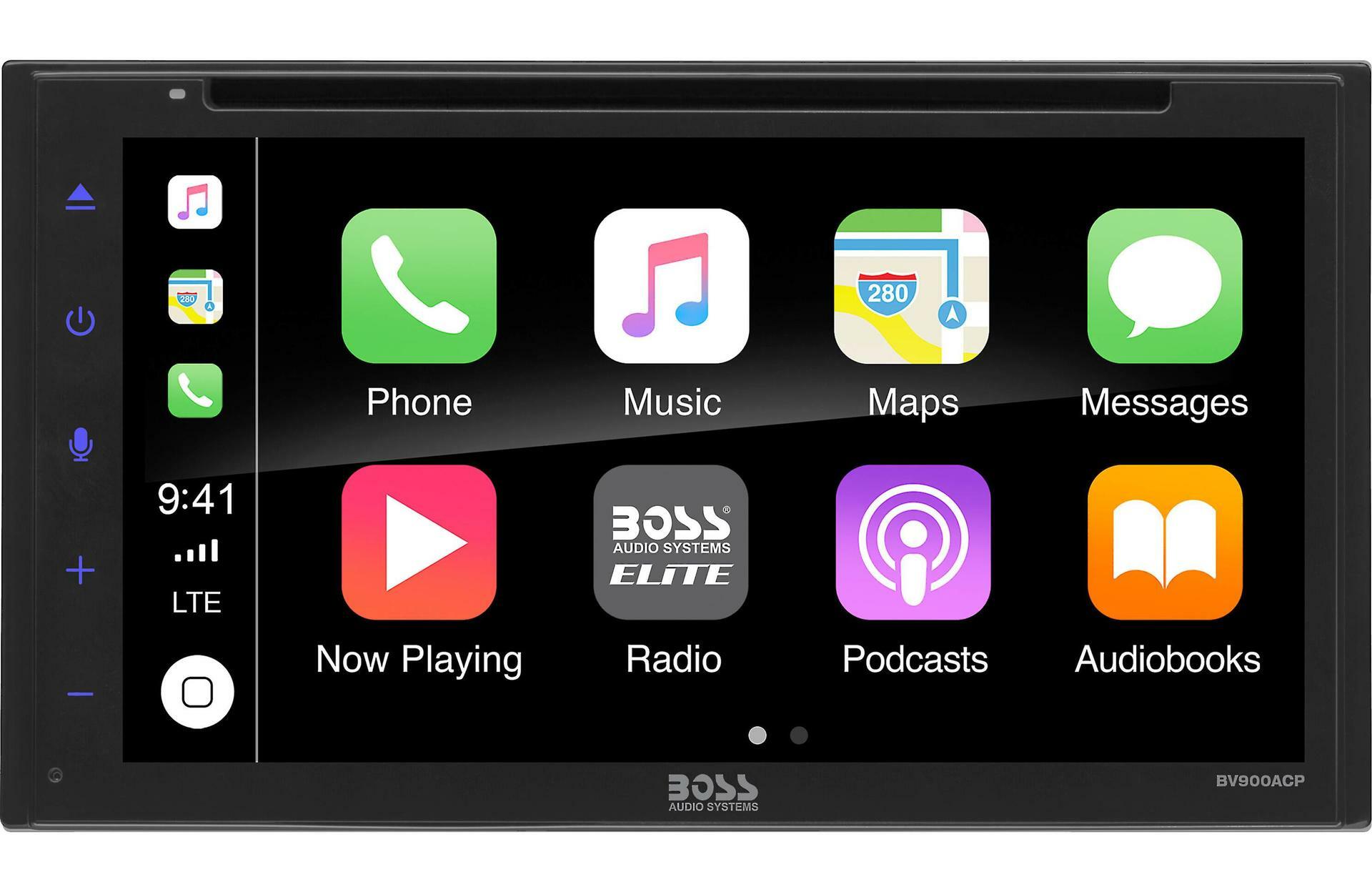

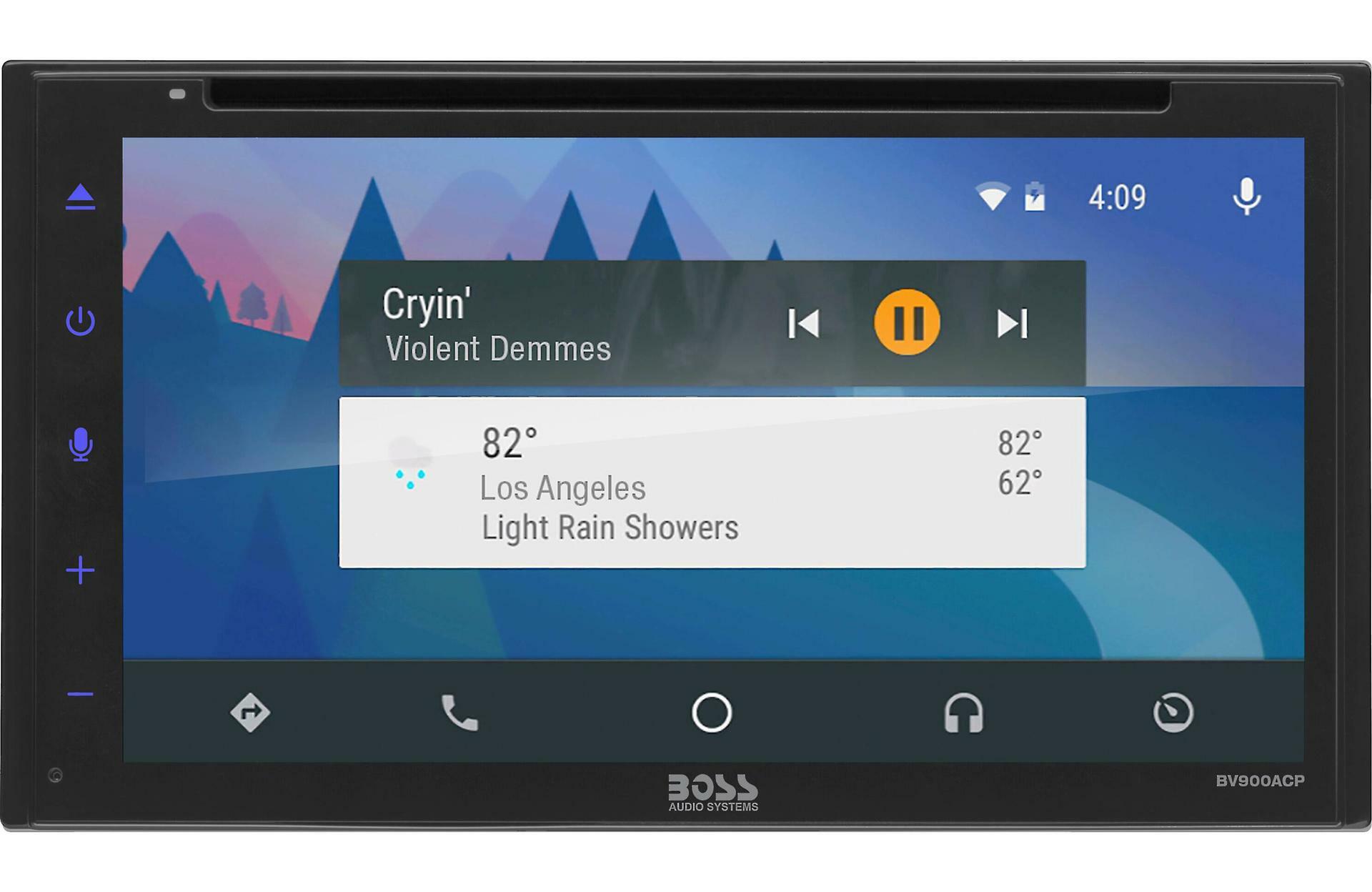

Android Auto™ or Apple CarPlay® — your choice

BOSS Audio builds Apple CarPlay and Android Auto into the attractively priced BV900ACP eceiver, so you've got a state-of-the-art interface on tap, whether you're an iPhone® or Android™ user. And if you use Siri or Google Assistant regularly, you'll find that hands-free control translates perfectly to the car. (Find out more at www.android.com/auto and www.apple.com/ios/carplay.)

Bluetooth® on board

This BOSS Audio receiver's Bluetooth enables wireless streaming for stored music, Internet radio stations, podcasts, and audiobooks. And you can take and make calls while keeping your hands on the wheel — a really nice safety feature for your daily commute.

Add on and enjoy

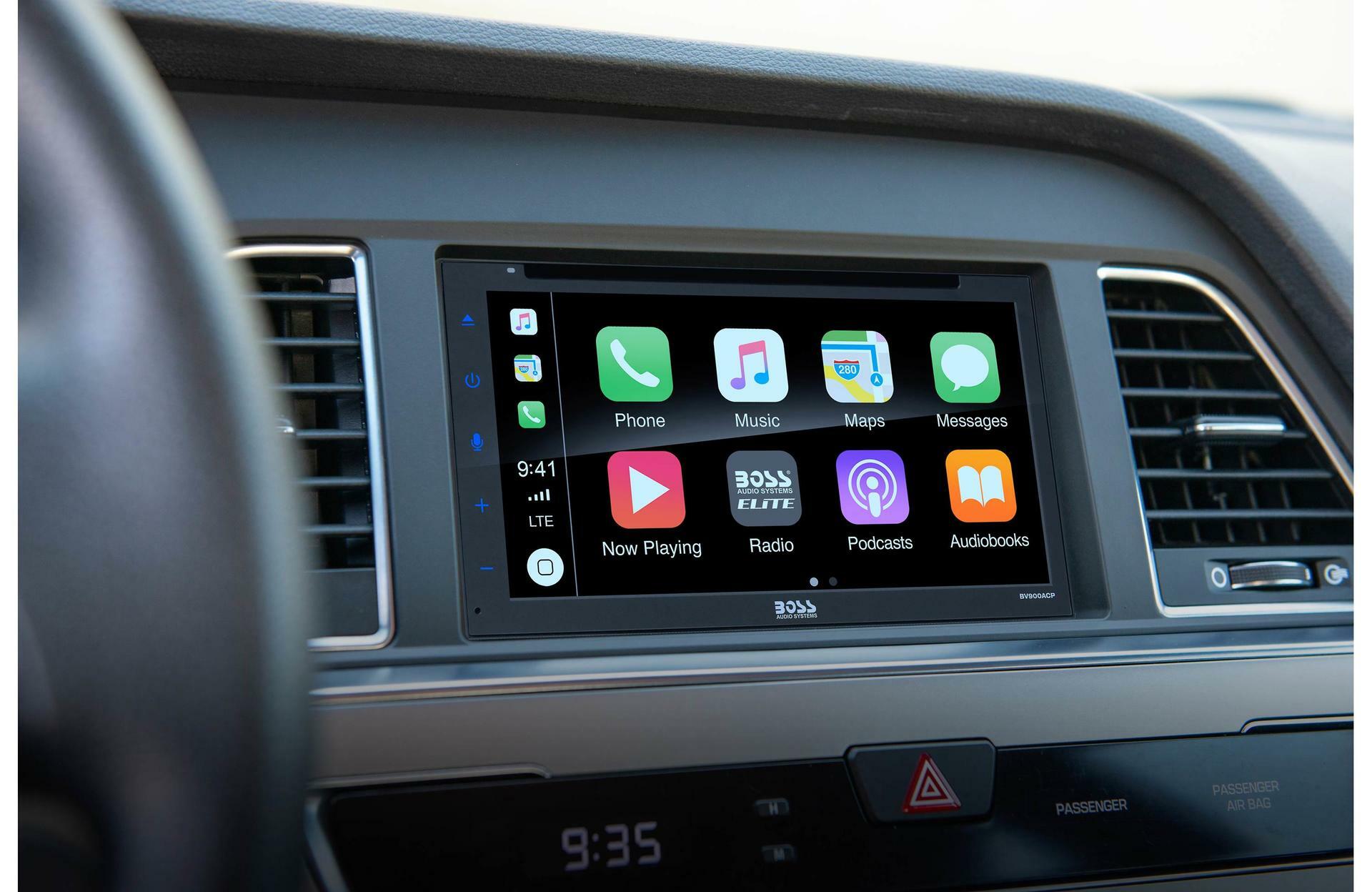

A 6.75" touchscreen display delivers system control, displays media info, and serves as a monitor for a connected backup camera (not included). A pair of rear USB ports let you connect a smartphone plus access your digital music library loaded onto a flash drive, while a rear A/V input supports other audio or video sources. For system building, you get a full set of preamp outputs for hooking up amplifiers to power speakers and subs.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

Product highlights:

General Features:

eceiver with AM/FM tuner

6.75" capacitive touchscreen

six preset button illumination colors

selectable wallpaper backgrounds

fits double-DIN dash openings

Smartphone Features:

compatible with Apple CarPlay and Android Auto

voice control with Apple or Android phones

Bluetooth for hands-free calling and audio streaming

dedicated voice-control button

Audio/Video Features:

plays CDs, DVDs, and USB memory devices

10-band EQ and 6 preset EQ curves

low-pass crossover and sub controls

Expandability:

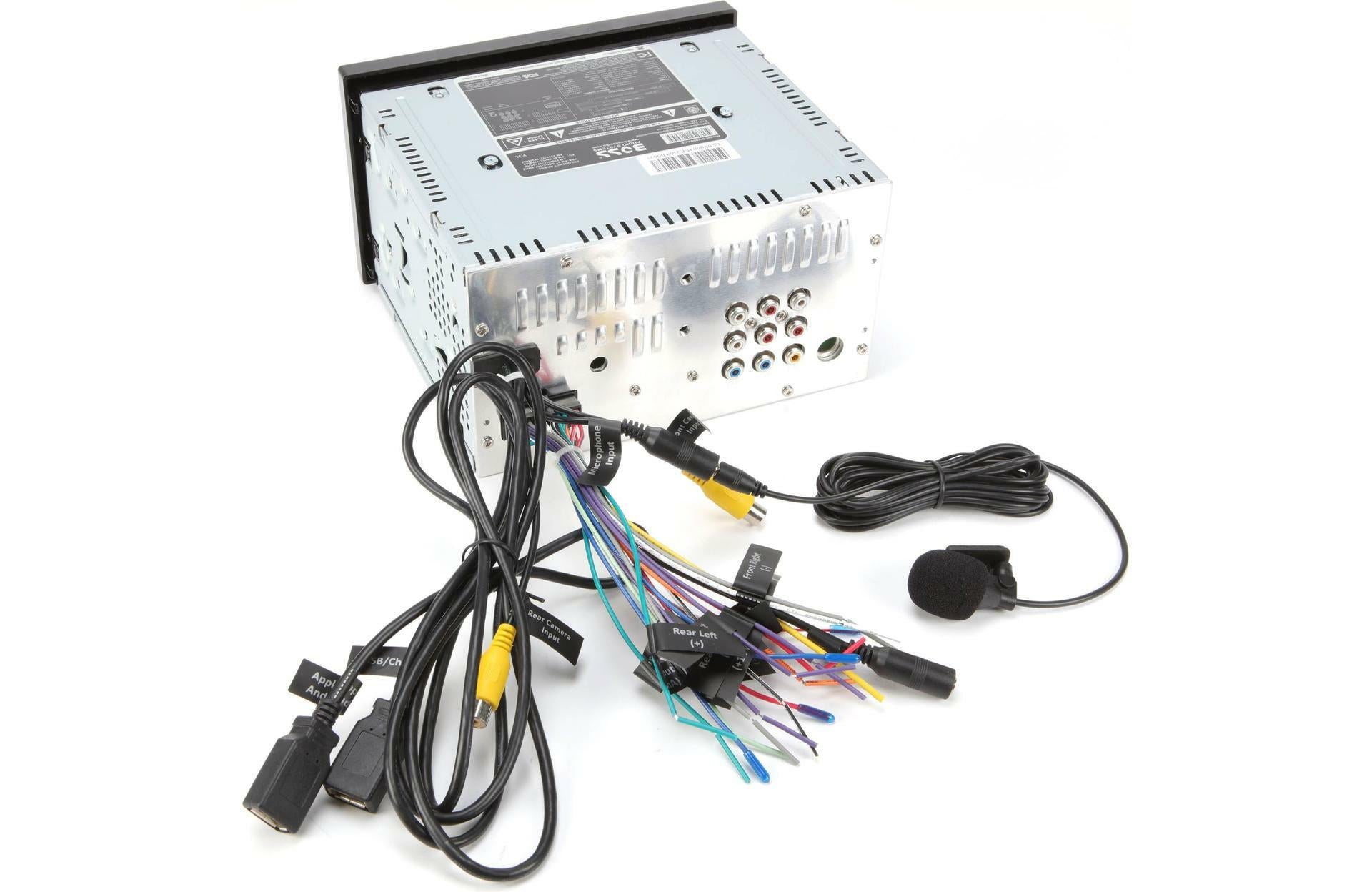

inputs: two rear USB ports; rear A/V input (RCA); rear-view camera input

outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other Information:

wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

built-in internal amp (20 watts RMS/80 peak x 4 channels)

wireless remote

MFR # BV900ACP

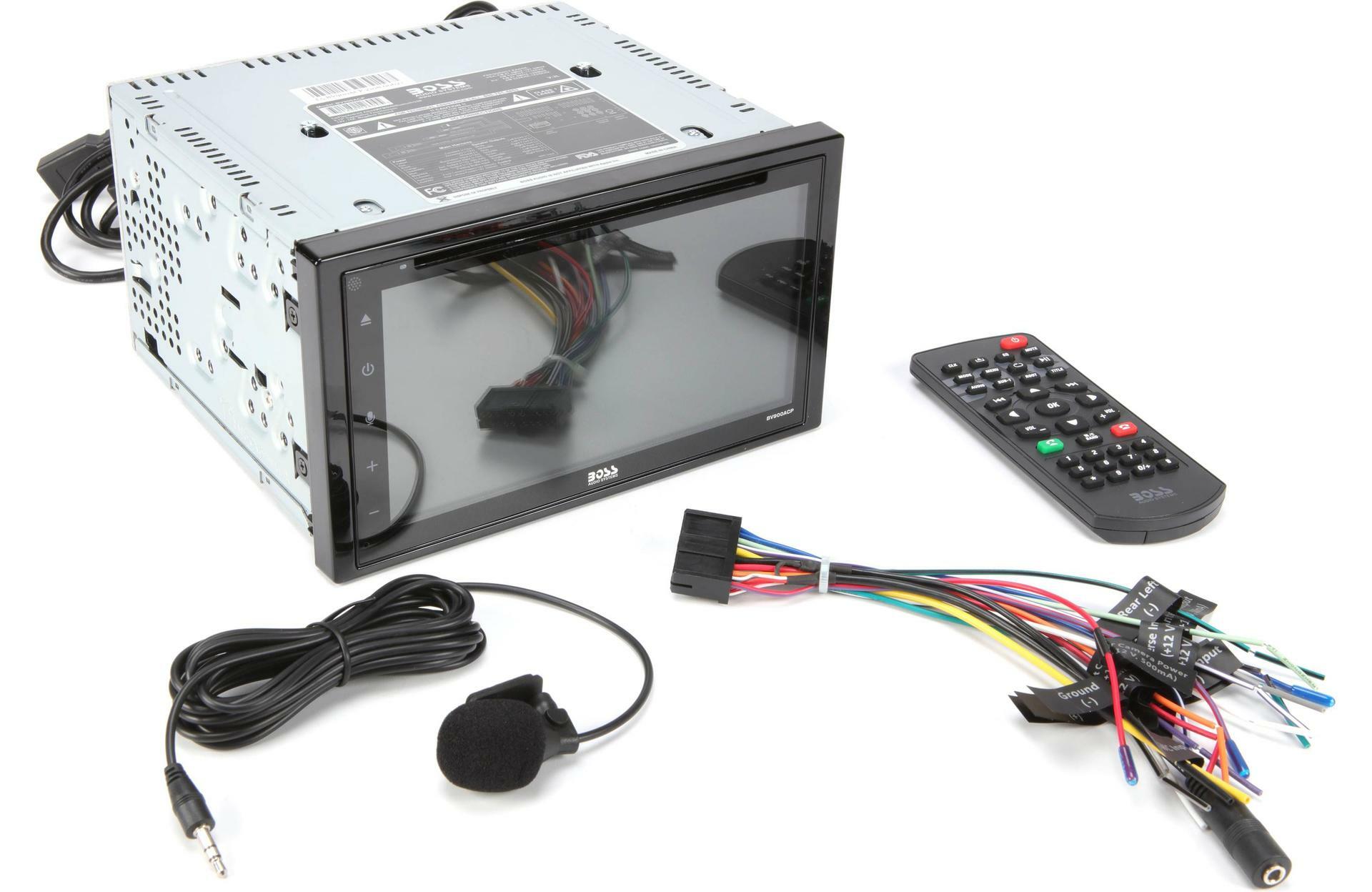

What's in the box:

eceiver (15A fuse)

Trim-ring (pre-installed)

Wiring harness

Microphone w/ integrated bracket (attached 9.5' cable terminated by a stereo 3.5mm connector)

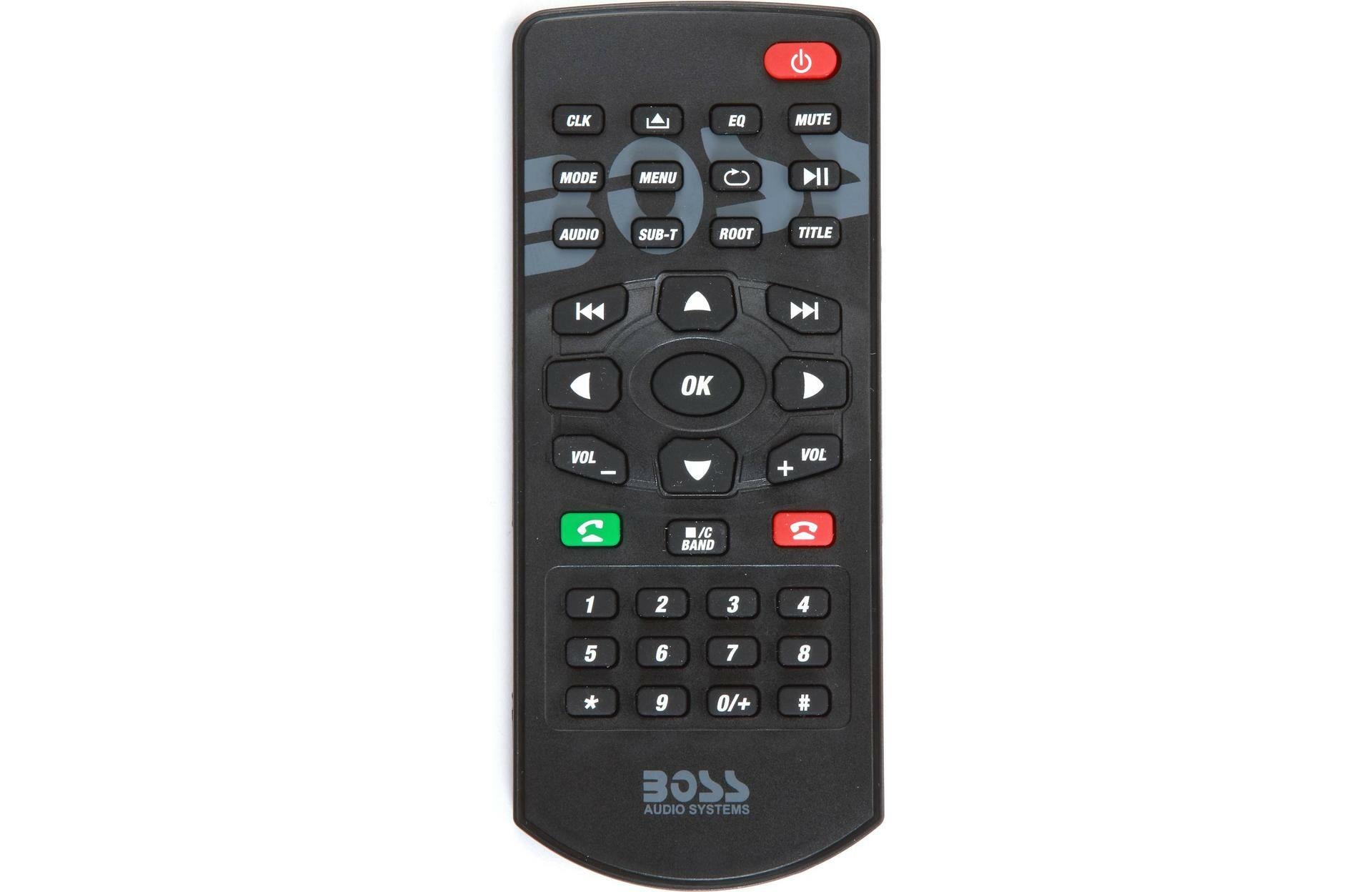

Remote control (CR2025 battery installed)

2 Side-brackets

8 ISO-screws

User's Manual

Warranty/Registration Card

Metra 95-5812 Dash Kit

Fits in select 2004-11 Ford, Lincoln, and Mercury vehicles — double-DIN radios (Black)

Metra 95-5812

The Metra 95-5812 kit allows you to install a double-DIN (4" tall) aftermarket stereo in your vehicle's dash opening.

What's in the box:

Double-DIN radio housing

Single-DIN radio housing w/ integrated pocket

Single-DIN trim ring

2 Double-DIN brackets

4 Single-DIN brackets

4 Screws

4 Spacers

Installation Instructions

MFR #95-5812

Metra 70-5521 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2003-2013 vehicles from Ford, Lincoln, Mercury

Product highlights

• Direct Connection to the factory harness

• Color coded wires for easy installation

• No cutting or splicing required

Product Features:

Wire harness to Install a new car stereo in Compatible with select 2003-2013 vehicles from Ford, Lincoln, Mercury

Plugs into the cars original factory radio connectors

Color-coded wires for easy installation to the aftermarket radio

No wire cutting needed for factory radio connectors

1 Year Manufacturer's Warranty

Connections:

Yellow – 12V Constant

Red – 12V Accessory

Black - Ground

Orange – Dash Light Dimmer/Illumination

Green – Left Rear Speaker (+)

Green with Black Stripe Left Rear Speaker (-)

White – Left Front Speaker (+)

White with Black Stripe – Left Front Speaker (-)

Purple – Right Rear Speaker (+)

Purple with Black Stripe – Right Rear Speaker (-)

Gray – Right Front Speaker (+)

Gray with Black Stripe – Right Front Speaker (-)

Raptor AD-CR1 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2001-2021 vehicles from Ford, Chevrolet, GMC Vehicles

Product highlights

• Antenna to Radio Adapter Cable

• select 2001-2021 vehicles from Ford, Chevrolet, GMC Vehicles

• Adapter to aftermarket radio

Product Details

Antenna to Radio Adapter Cable

Compatible with select 2001-2021 vehicles from Ford, Chevrolet, GMC Vehicles

Adapter to aftermarket radio

FEATURES
